AIRCONDITIONING

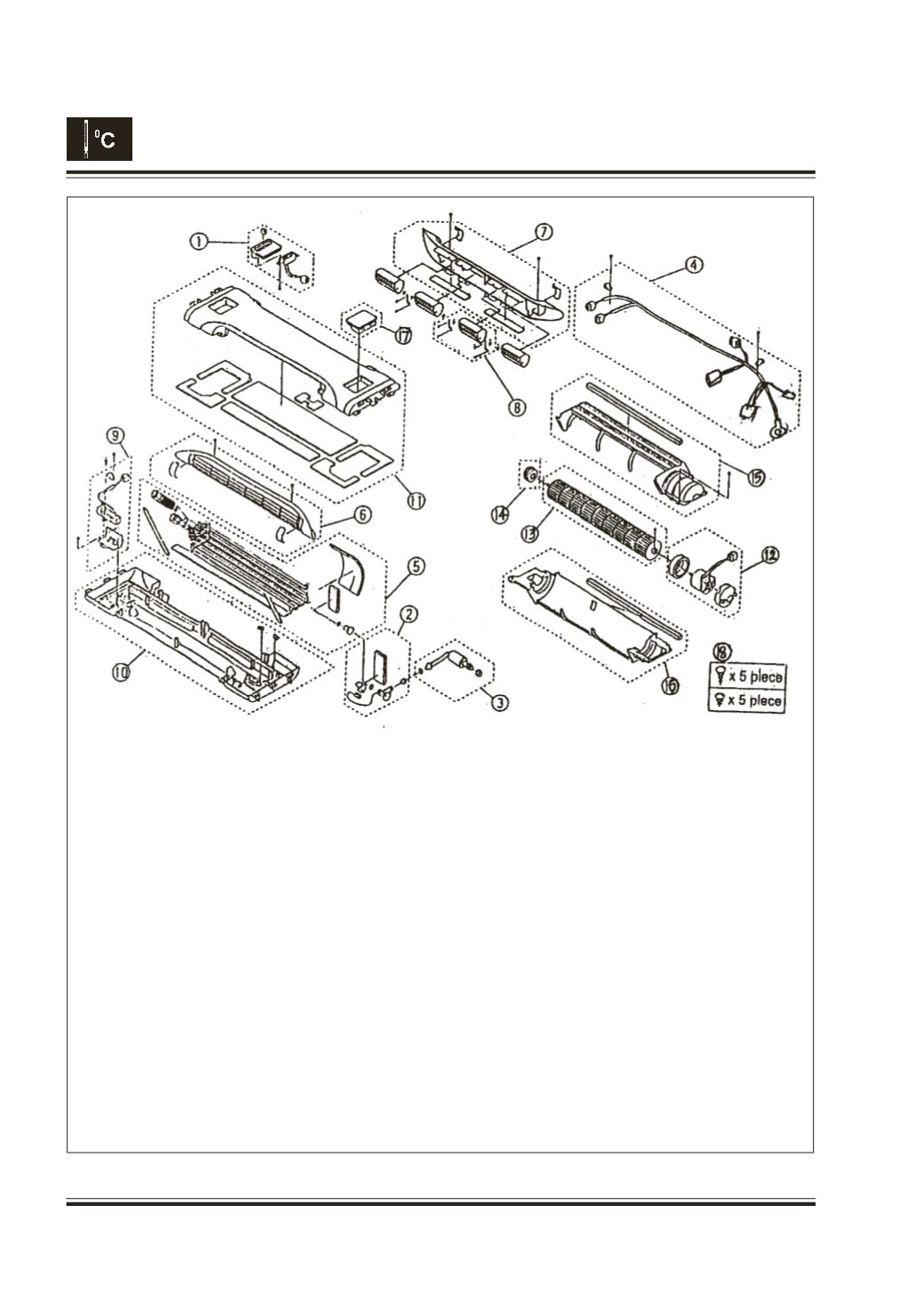

Fig. 38 - Roof A/C Exploded View
Sr. No. Part Name
1.
Fan switch Assy.
2.
Expansion vale Assy.
3.
High pressure pipe Assy.
4.
Harness Assy.
5.
Evaporator Assy.
6.
Suction grill Assy.
7.
Discharge grill Assy.
8.
Grill Assy.
9.
Resistor Assy.
10.
Upper case Assy.
11.
Lower case Assy.
12.
Motor Assy.
13.
Crossflow fan Assy.
14.
Bearing Assy.
15.
Stabilizer Assy.
16.
Rear guide Assy.
17.
Switch cover
18.
Screw Assy
