SAFARI

AIRCONDITIONING

SERVICE AND REPAIR

ServiceTools and Gas Leak Detector

(FORHFC 134a)

Service Tools

Special service tools are required for servicing the air

conditioner to prevent incorrect refrigerant

charging and to prevent compressor oil from getting

mixed.

Note:

Vacuum pump adapter is not included in tool

list.

Service Tool List for HFC 134a

Sr. No. (Metric size )

M10X P 1.5

M12 X P 1.75 High pressure side

“Quick - disconnect adapter which meets

SAE standard (High pressure side)

Quick - disconnect adapter which meets

SAE Standard (Low Pressure side)

M14 X P 1.25

On vehicle Inspection

Check condenser fans for blockage or damage. If the

fins are clogged, wash them with water.

Caution:

Be careful not to damage the fins.

1. Check condenser fins for blockage or damage. If

the fins are clogged, wash them with water.

Caution:

Be careful not to damage the fins.

2. Make sure that drive belt is installed correctly.

Check that the drive belt fits properly in the ribbed

grooves.

3. Check drive belt tension.

Using a belt tension gauge, check the drive belt

tension.

Fig. 45 - Drive belt tension checking

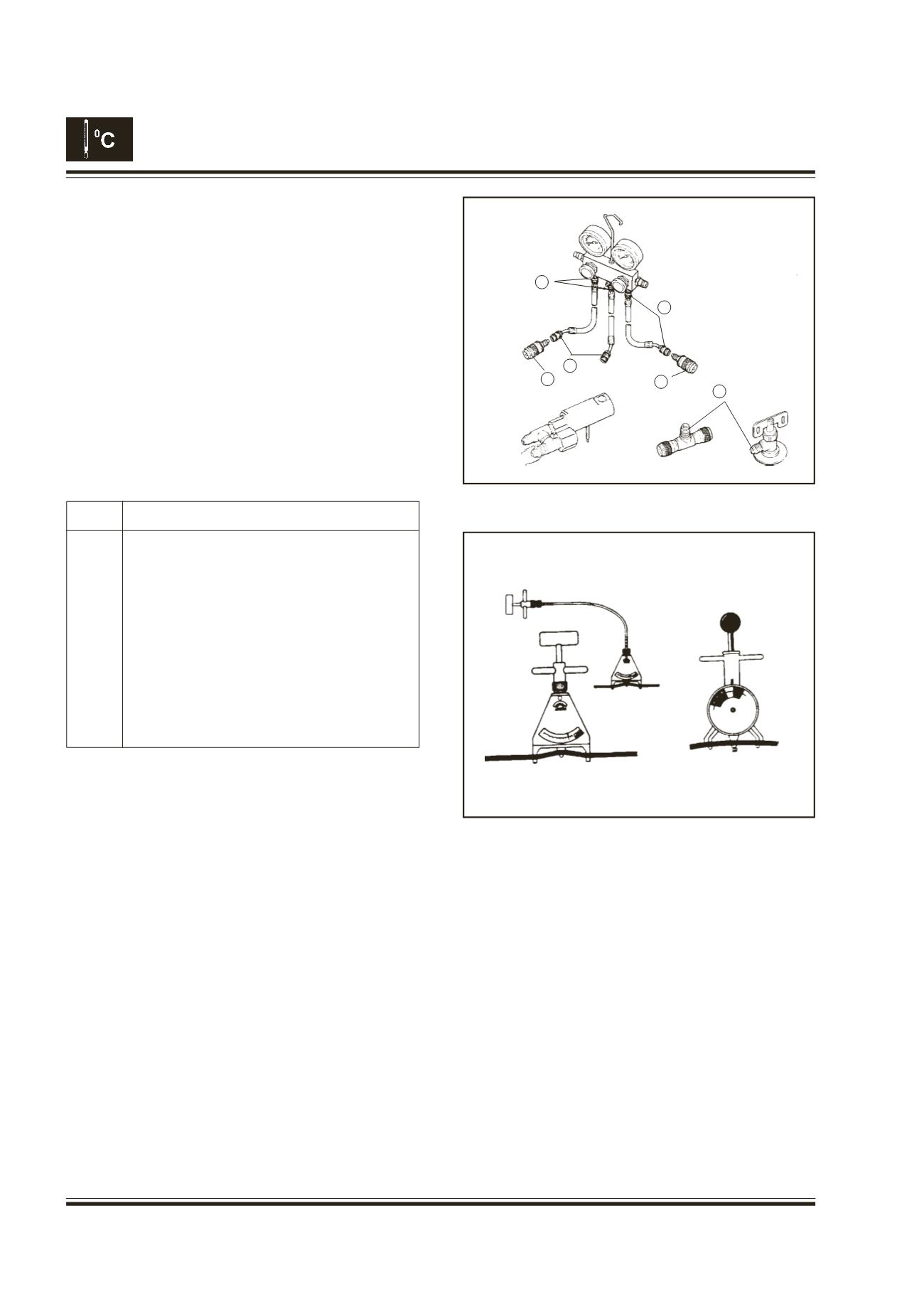

Fig. 44 - Service tool set for HFC-134a

BORROUGHS

NIPPONDENSO

MANIFOLT

GAUGE

CHANGING

HOSE

QUICK DISCONNECT

ADAPTER

VACUUM

PUMP

ADAPTER

SERVICE CAN

T JOINT

SERVICE CAN

VALVE
