ELECTRICALS

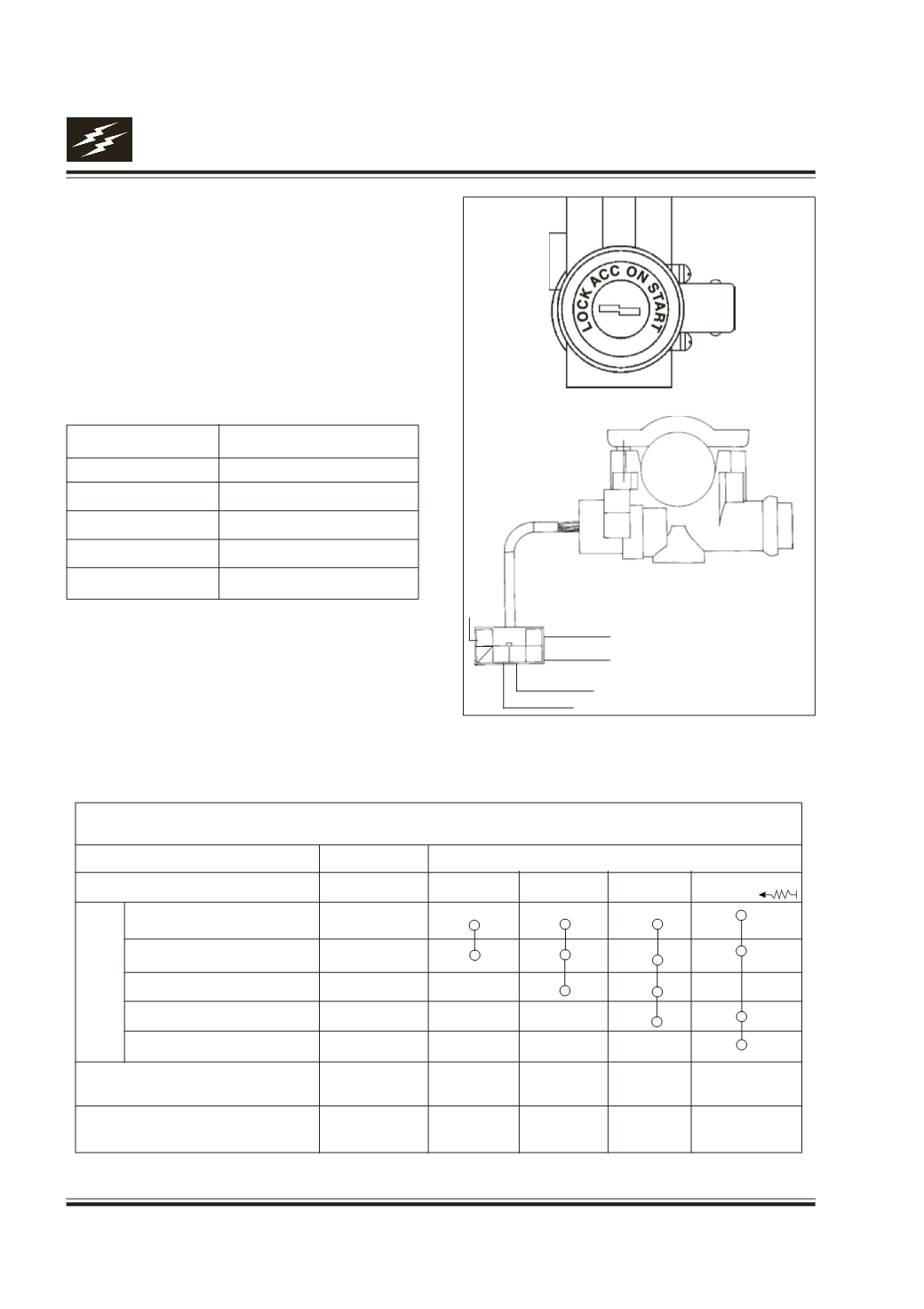

15K. STEERING LOCK CUM IGNITION SWITCH
Fig. 41
Function
To lock the steering . To start & stop the engine.
To switch on accessaries and other electrical
system.
Location
It is located on the right side of the steering
column behind steering wheel.
POSITION
Key out
Key in
LOCK LOCK ACC.
ON START
Key in sensor
Battery
Accessories
Ignition
Start
TERMINALS
Key rotation forward
Steering Steering Steering Steering Steering
Locked
Locked
Free
Free
Free
Key rotation backward
Steering Steering Steering Steering Steering
Locked
Free
Free
Free
Free
Terminal
Connection/Load
Battery (30)
Supply +Ve.
ACC.
Aux. Relay
ON (15/54)
Relay
START (50)
Relay
Key in sensor
Chime unit
BATTERY
IGNITION
KEY IN SENSOR
ACCESSORIES
CRANK
B
R
O Y-L Y
Fig. 41
