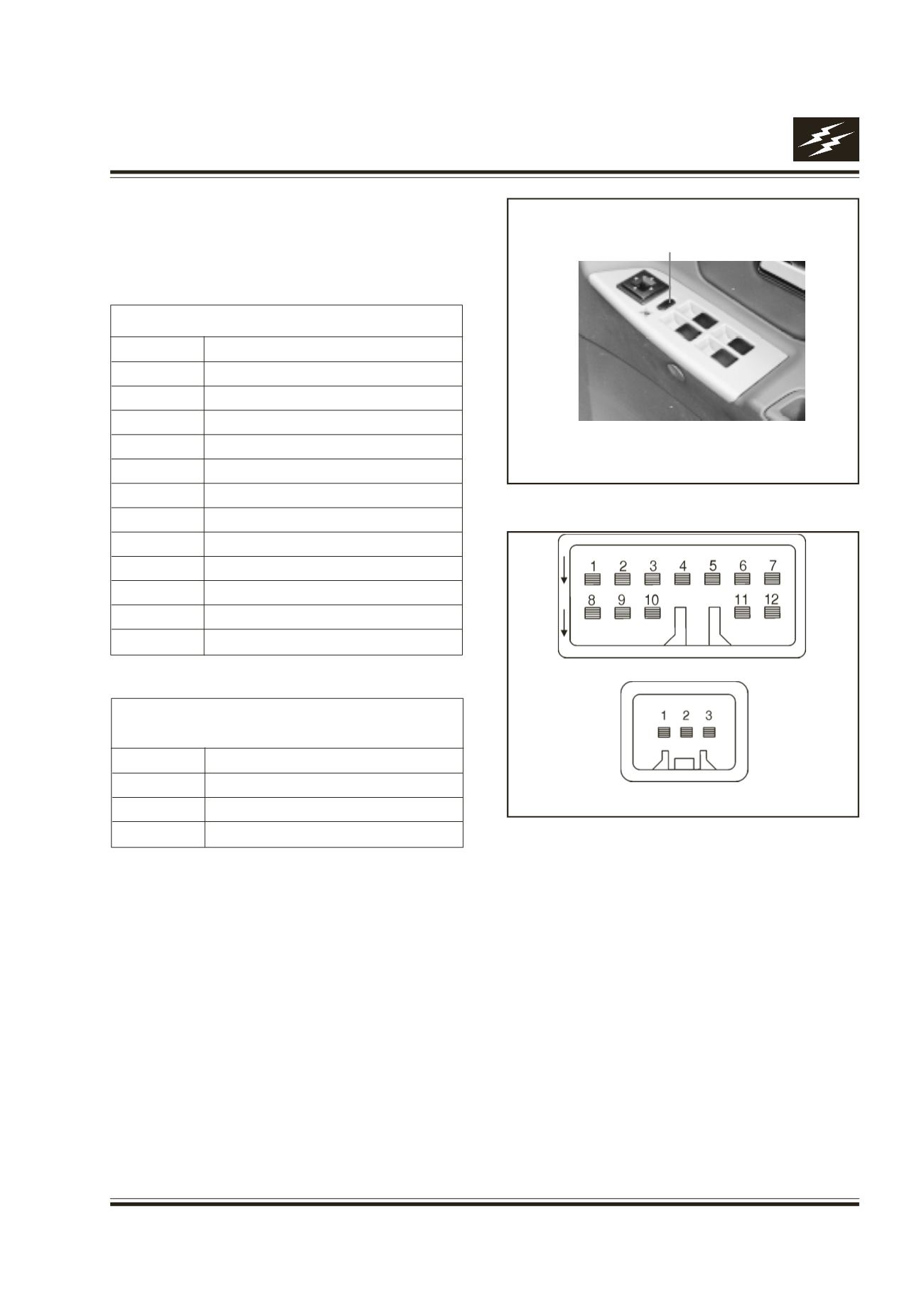

15E. WINDOW WINDING SWITCHES
Fig. 33
Function :
Lowering and raising of window glass.
Location :
On all the door trims.
Fig. 34
Fig. 33
Table for driver door switch pack
Fig. 34
Terminal
Terminal Configuration
1
Driver door down
2
Driver door up
3
Earth
4
+ve Supply
5
Inbuilt Switch Output
6
Co-driver down
7
Co-driver up
8
Passenger RH up
9
Passenger RH down
10
-
11
Passenger LH up
12
Passenger LH down
Table for driver door switch &
rear door switch Fig. 34
Terminal
Terminal Configuration
1
Earth
2
Down
3
Up
WINDOW WINDING SWITCH DRIVER DOOR
WINDOW WINDING SWITCH CO-DRIVER
DOOR & REAR DOOR RH & LH
Power Window Switch on Driver Door
(RHD)
Lock / Unlock Button
