ELECTRICALS
15F. TRANSFER CASE SELECTION SWITCH
(Optional)
Fig. 35
Function
It allows the vehicle to be driven in 4X2 or
4X4 H or 4X4 L modes.
Location
On the central console between gear shift lever
and hand brake lever.
Fig. 35
Bulb gets supply when
parking lights are switched on

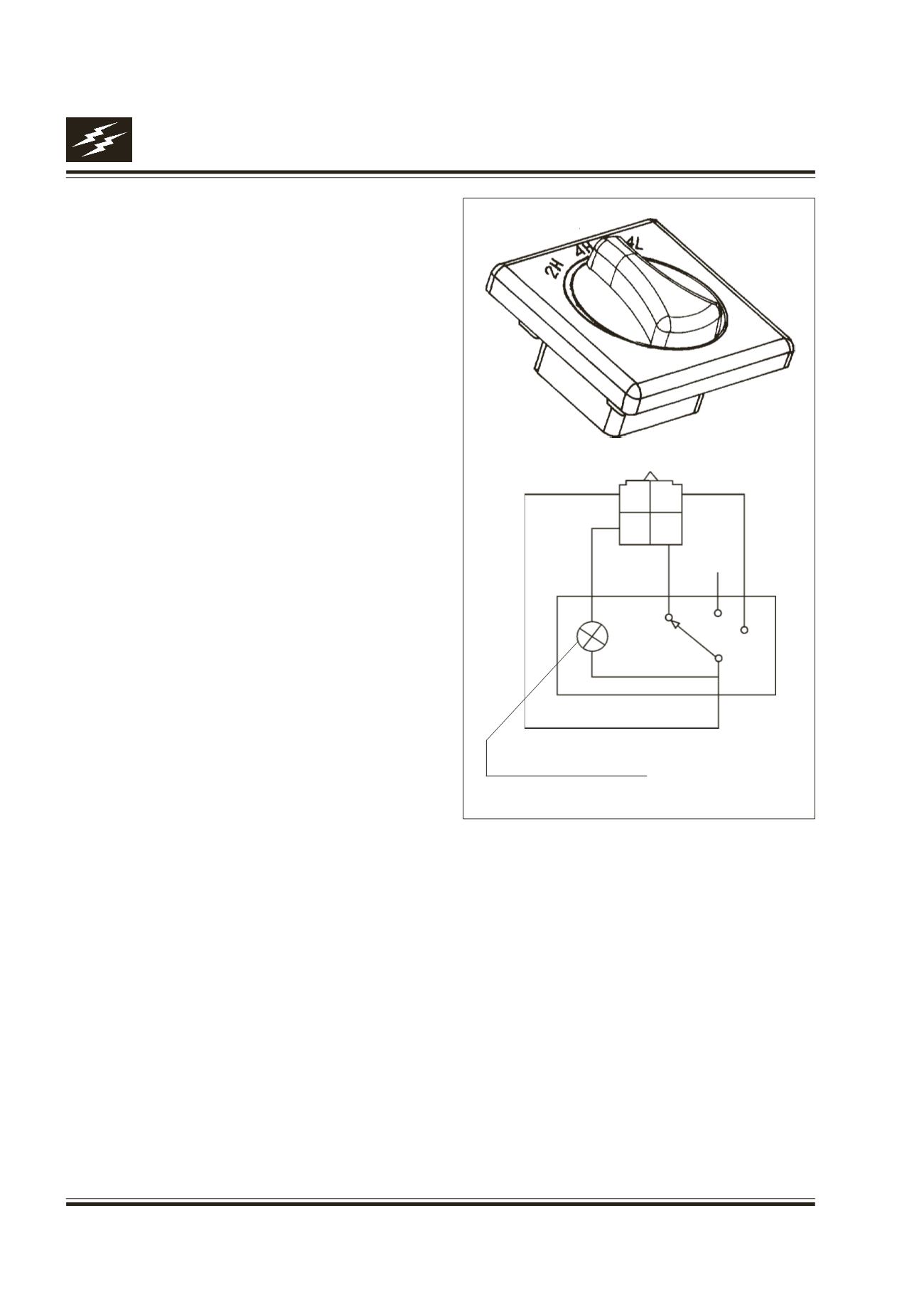

SCHEMATIC SWITCH CIRCUIT
0.5 Br
0.5 L-O
0.5 W
0.5 L-Y
2H 4H
4L
