SAFARI

48 / 1526

19
4 DLT ENGINE
Fig. 15
1
2
3
4
(Engine Dismantling contd.)

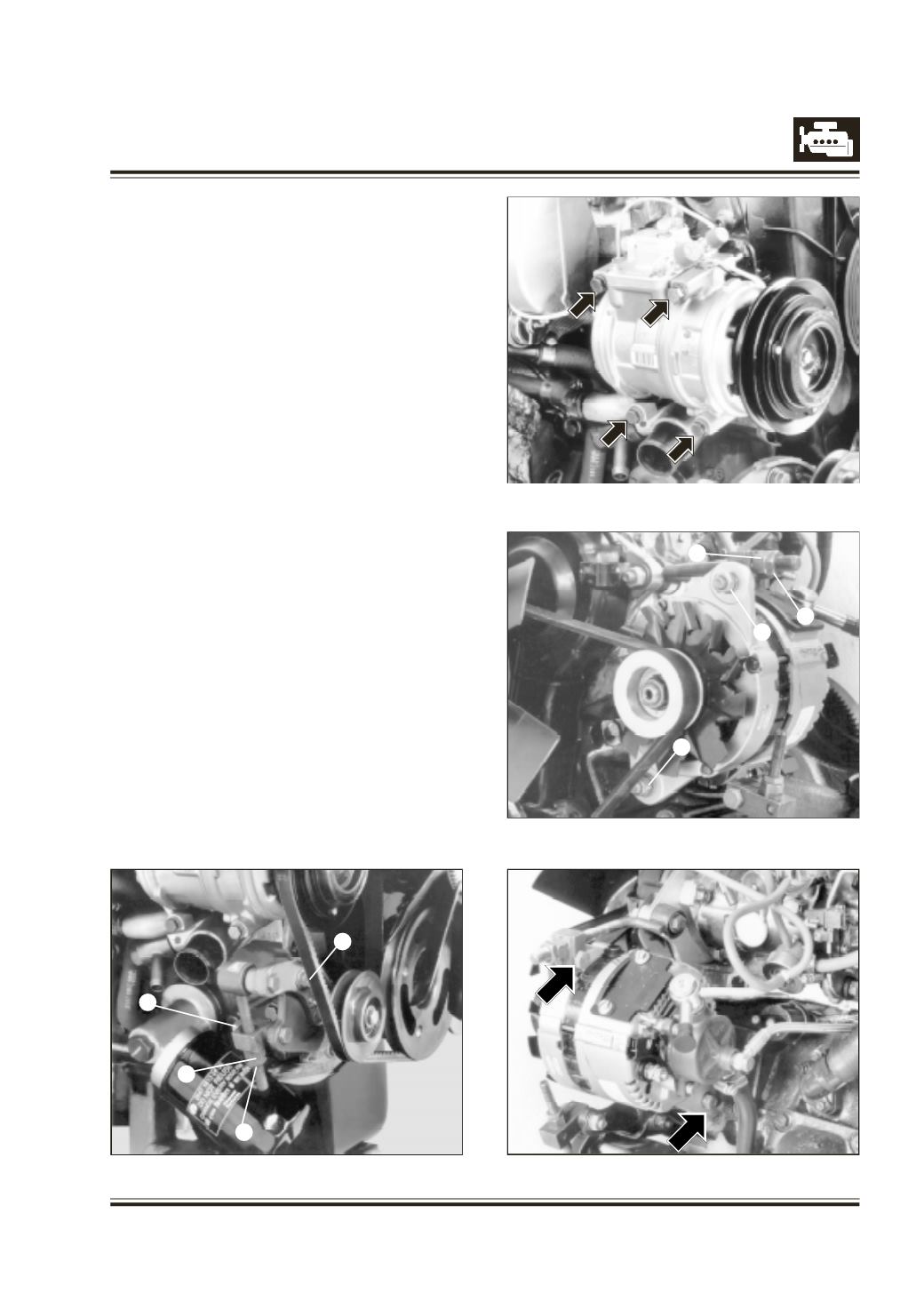

Loosen AC belt idler tensioner mounting bolt À and
loosen adjuster bracket hex nut Á Fig. 12.
Loosen locknut Á & then 13.
Remove AC belt.
Remove compressor mounting bolts & take out
compressor assembly. Fig. 14.
Fig. 12
Fig. 13
1
2
4
3
Loosen alternator bottom mounting nut À & then
adjuster bracket nut Á Fig. 14
Loosen lock nut  & then adjuster hex nut à till the
belt can be removed. Fig. 14
Remove belt.
Remove alternator top & bottommounting bolts & then
take out alternator assy. Fig. 15
Fig. 14
