SAFARI

486 PL ENGINE

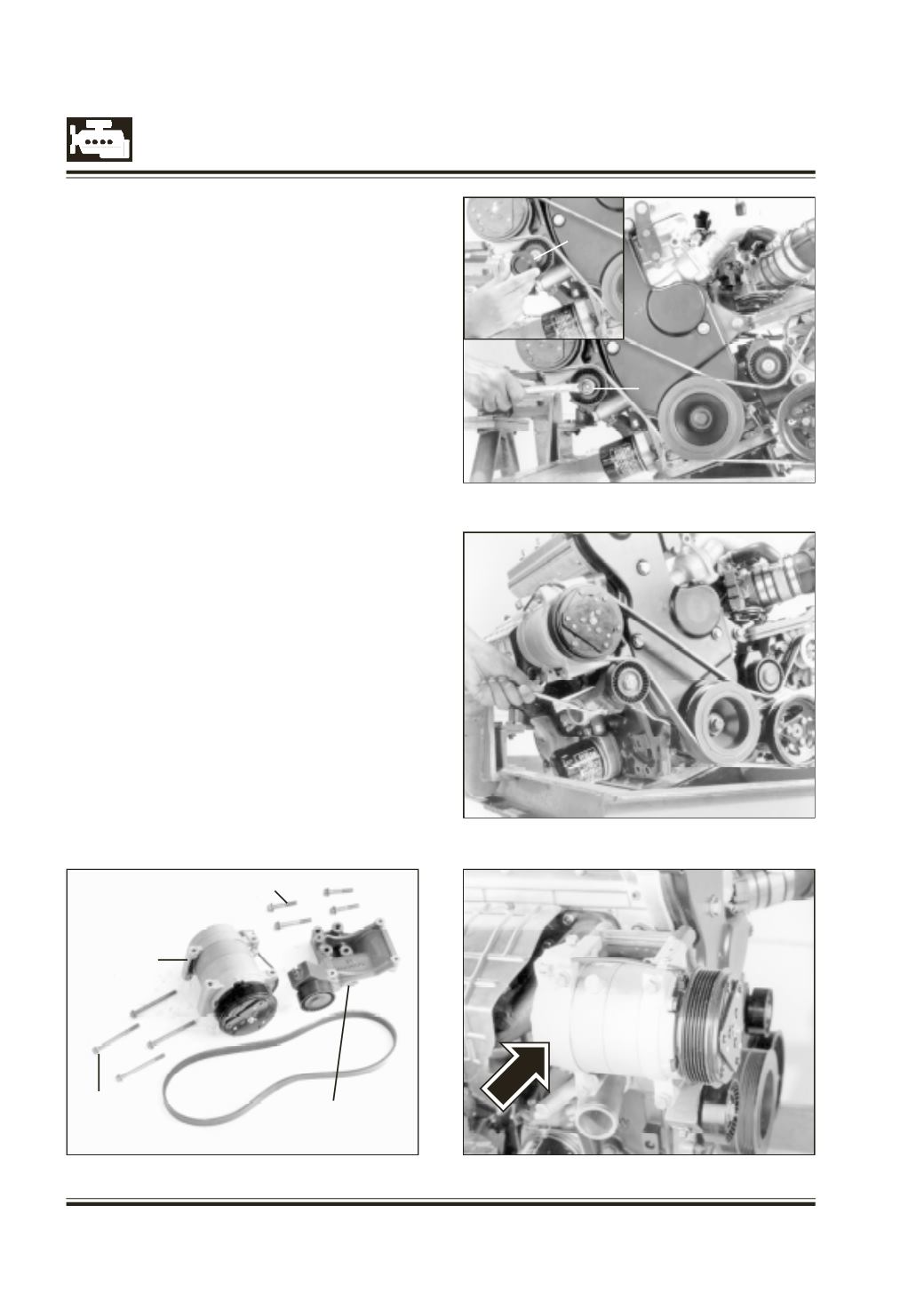

DISMANTLING OF 486 PL ENGINE :

Engine on stand

Drain off residual coolant from block and head.

Removal of AC Compressor :

Remove Cap

and loosen the nut

ig. 17

Relieve AC belt tension by rotating tensioner screw

in clockwise direction. Fig. 18

Remove AC belt

Remove AC compressor from its bracket Fig. 19

Fig. 18

Fig. 17

Fig. 19

Fig. 16

AC bracket

with tensioner

AC belt

Bracket Mtg.

bolts

compressor

Compressor

Mtg. bolts
