21

486 PL ENGINE

P

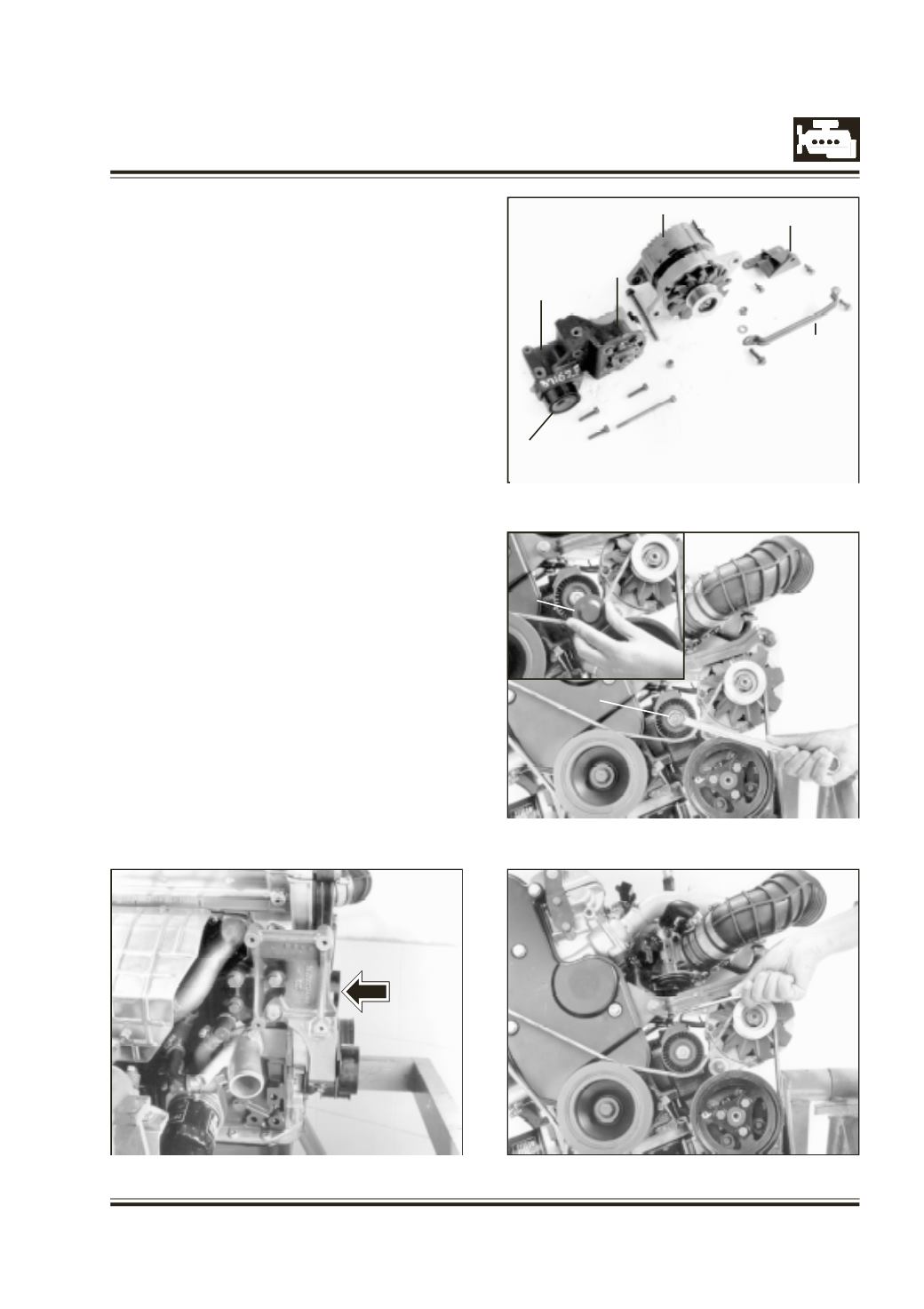

Remove AC compressor bracket. Fig. 20

Removal of Alternator / Power steering pump :

Fig. 21

Remove cap

À

and loosen the nut

Á

slightly.

Fig. 22

Relieve belt tension by rotating tensioner screw in

clockwise direction. Fig. 23

Fig. 22

Fig. 21

Fig. 23

Fig. 20

Stay

Bracket

Alternator

Pump

Alternator /

power

steering

mounting

bracket

Tensioner

À

Á
