3.5 REAR WASH CONTROL

3.5.1 Description

Rear Windshield provides vehicle user with Rear visibility directly or through the inside rear view mirror. Rain

and dirt on the rear windshield quickly turn the rear window into a risk on visibility and safety. Hence, Rear

wiper is needed to have a clear view outside at back of the vehicle. Rear washer shall be controlled from

Rear washer switch (rotary switch), located on the control lever.

3.5.2 Conditional Requirements

Activation –

• IGN is ON

• Rear Wash is activated

Deactivation –

• IGN is OFF or

• Rear Wash is deactivated or

• After pre configured wash wipes

On Fault –

Respective DTC logged

3.4.3 Operating Voltage Range

DESCRIPTION

REQUIREMENT

VOLTAGE

Rear Wash Control. Normal operating voltage range

9V-16V

3.4.4 Operating Temperature Range

DESCRIPTION

REQUIREMENT

VOLTAGE

Rear Wash Control.

Operating temperature range

-30



c to +85



Storage temperature range:

-40



c to +105



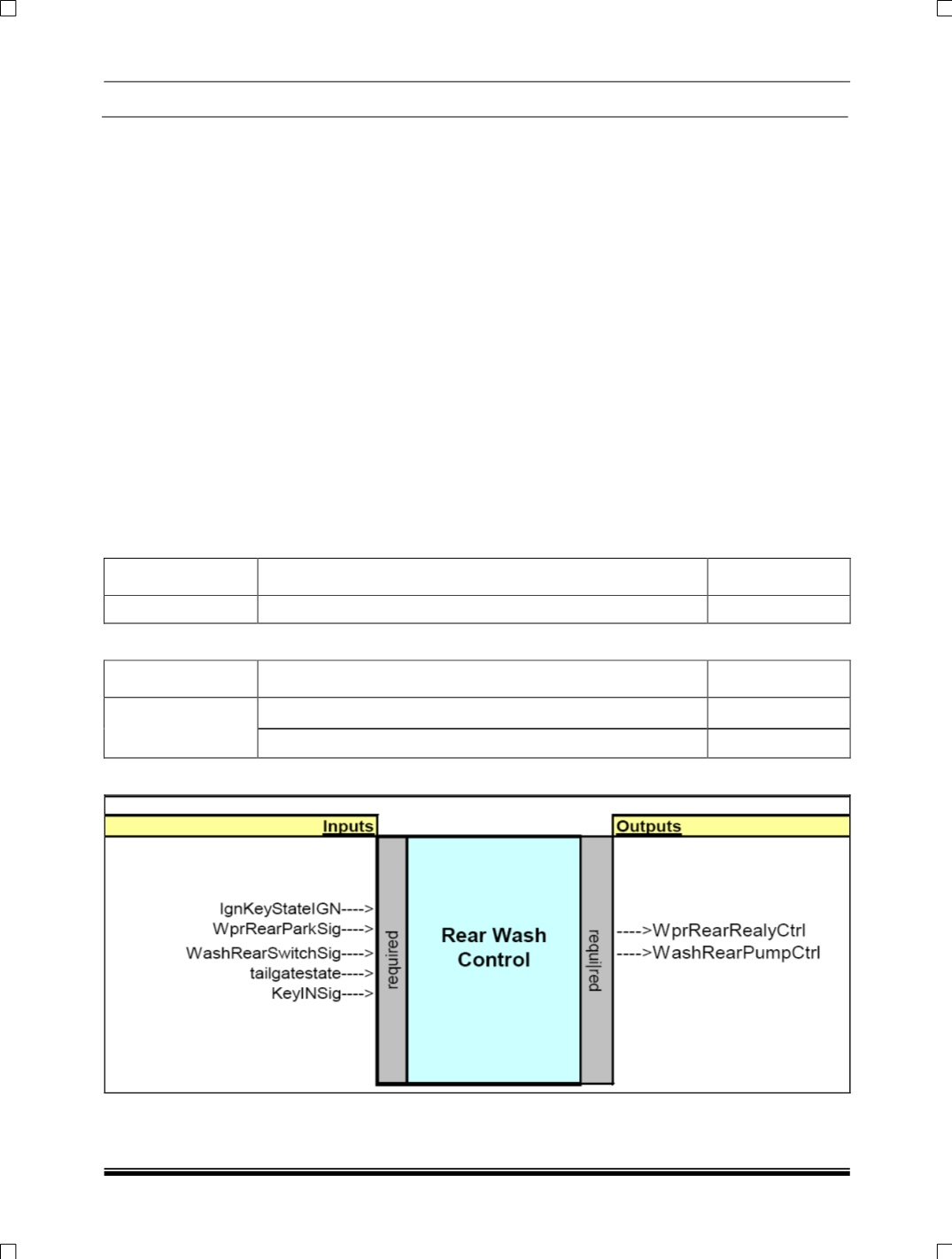

3.5.5 Inputs & Outputs
