ELECTRICAL
113

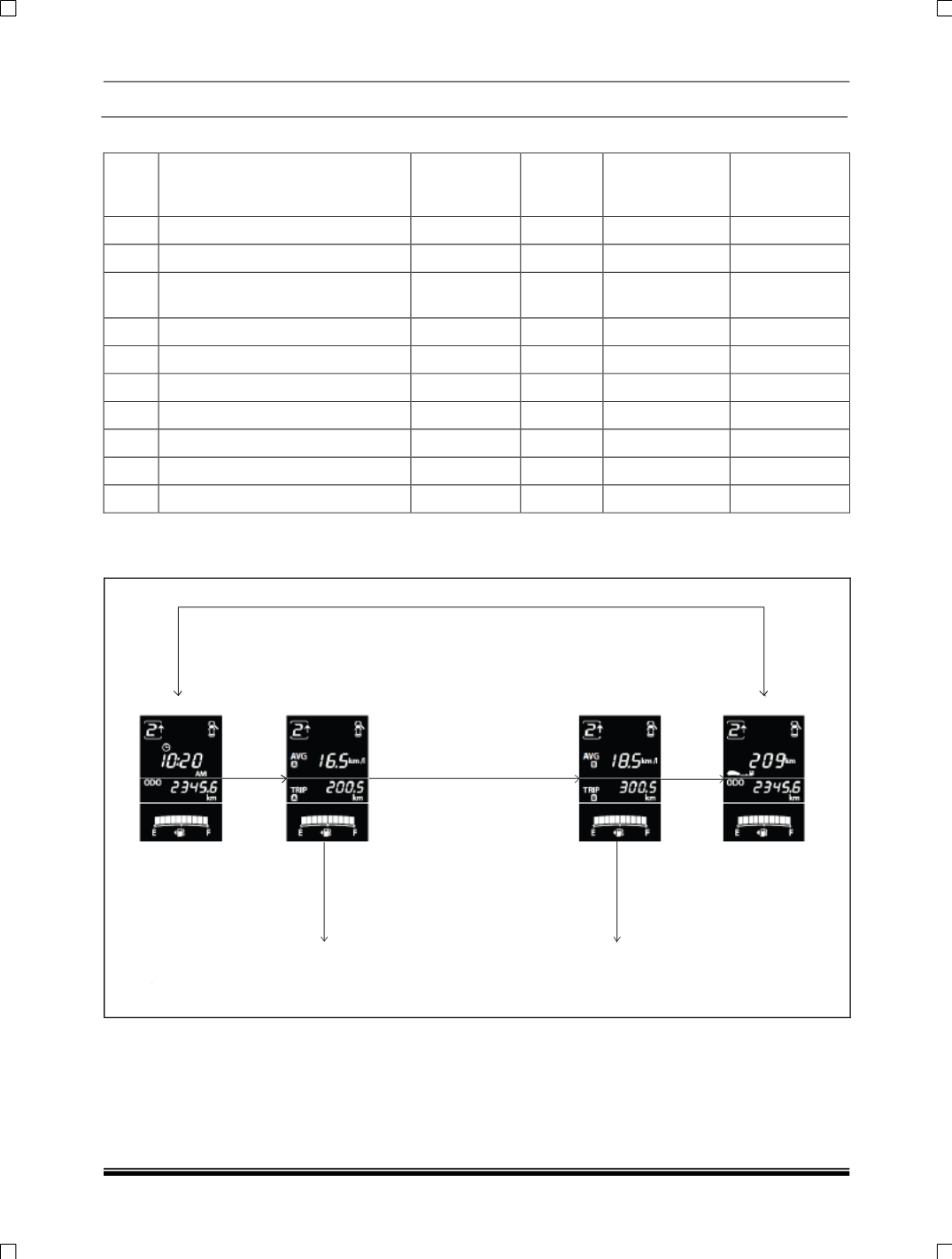

8.23.8 CHIME TABLE:
Sr.
No
Feature
Default state Priority
Instrument
Cluster Low
End
Instrument
Cluster High
End
1
Turn Indicator
Enabled
11
√
√
2
Key In And Driver Door Open
Enabled
9
√
√
3
Key Out, Park Lights On And Driver
Door Open
Enabled
10
√
√
4
Park Brake Chime
Enabled
4
√
√
5
High Engine Coolant Temperature
Enabled
1
√
√
6
Seat Belt Reminder
Enabled
2
√
√
7
Speed Limiter
Enabled
5
√
√
8
Drive Mode Chime
Enabled
7
√
√
9
Reverse Warning
Enabled
8
√
√
10
AMT Chime
Enabled
6
√
√
8.23.9 DISPLAY SCREEN FLOW AND SETTINGS
DISPLAY SCREEN FLOW FOR LOW END INSTRUMENT CLUSTER
PRESS
MODE
PRESS MODE
PRESS
MODE
PRESS MODE
HOME
TRIP A & AVG A
TRIP B & AVG B ODO & DTE
PRESS ‘SET’ FOR LONG TIME
TO RESET TRIP METER & AVG
PRESS ‘SET’ FOR LONG TIME
TO RESET TRIP METER & AVG
