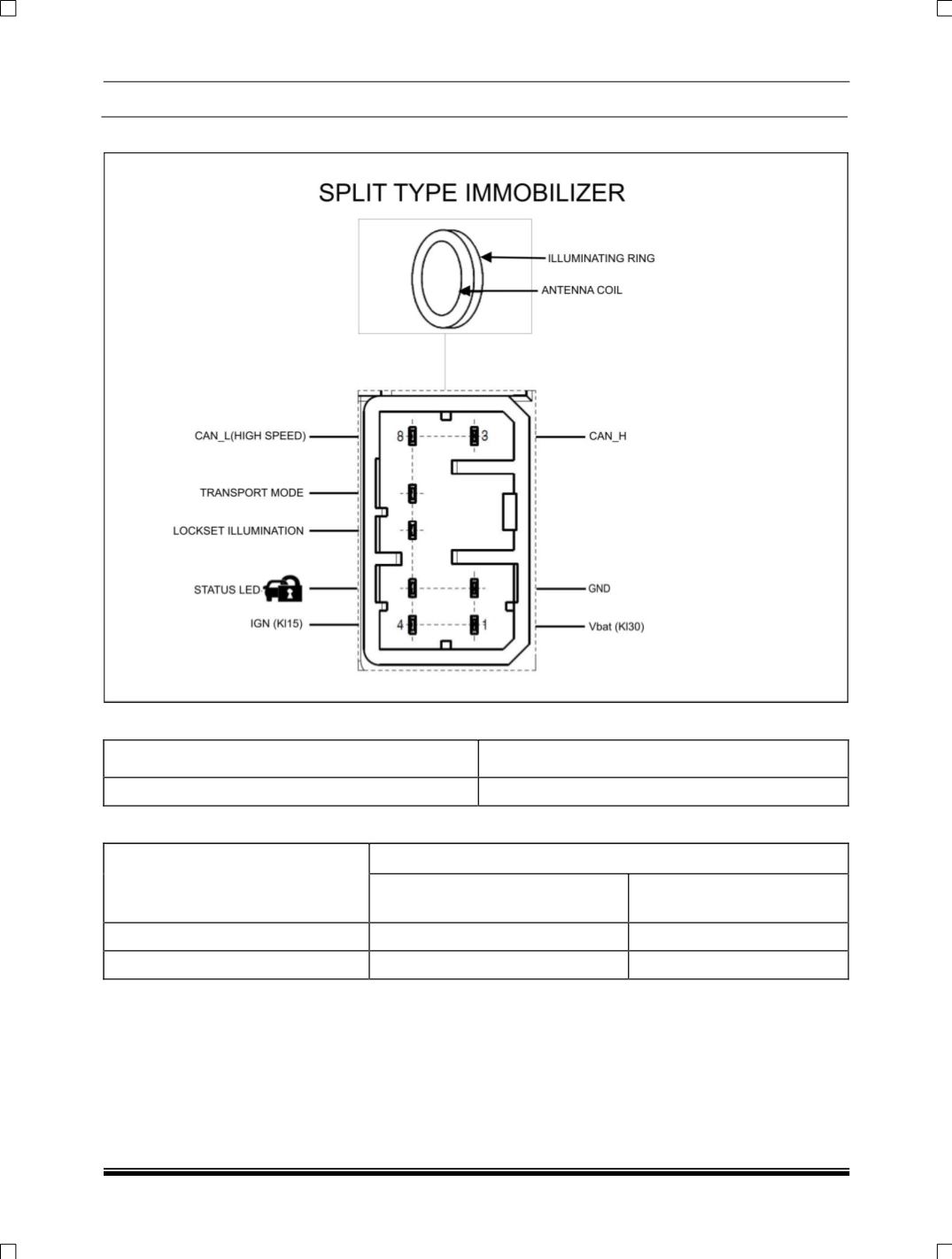

CONNECTION DIAGRAM:
CONNECTION DETAILS OF PIN:
IMMOBILIZERCONNECTOR
INSTRUMENT CLUSTERCONNECTOR
Status bulb Pin -5
Pin 20
IMMOBILIZER CONNECTOR
EMS VEHICLE CONNECTOR PIN NO.
DIESEL
PETROL
CAN_H Pin 3
Pin 19
Pin 19
CAN_L Pin 8
Pin18
Pin18
