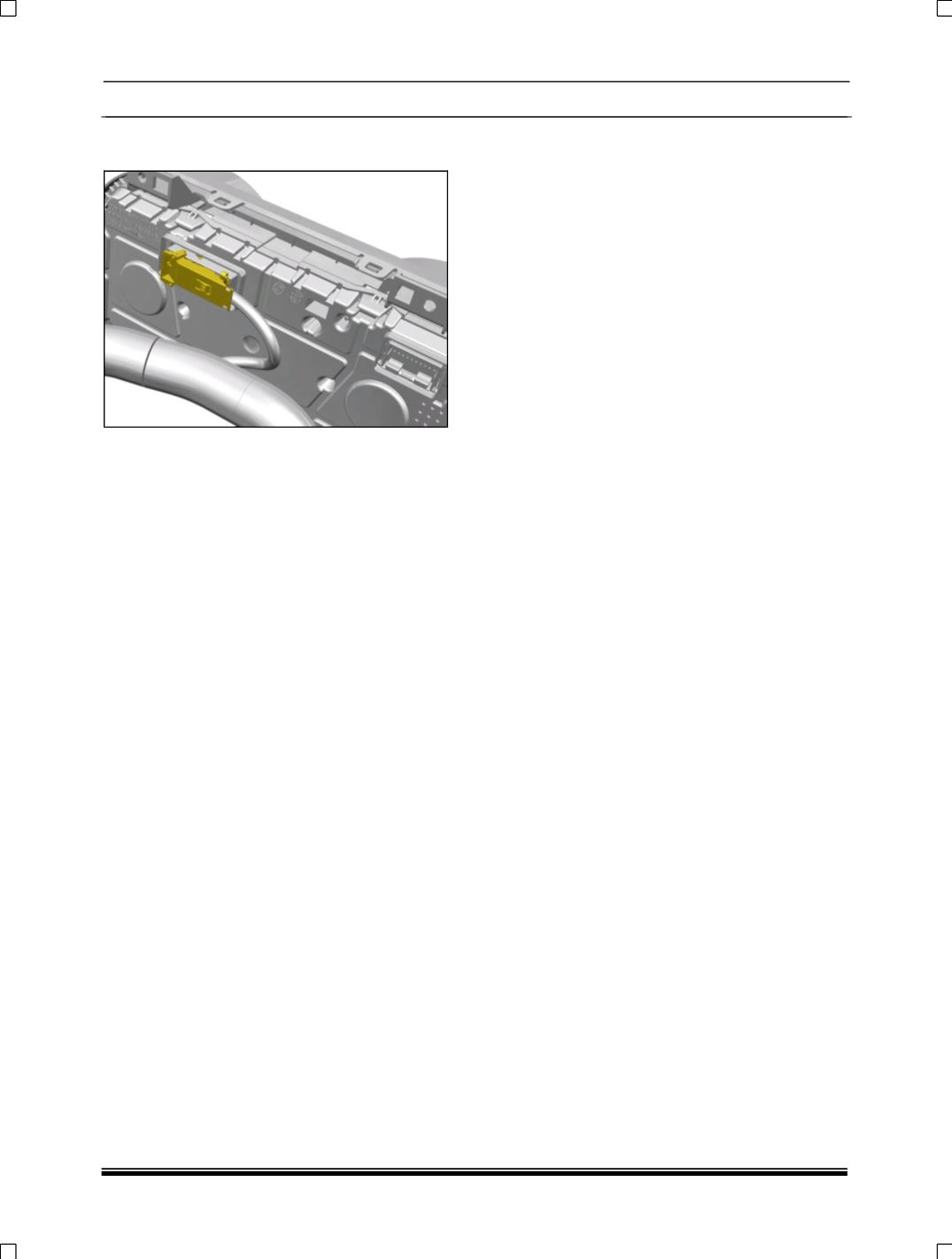

8. Remove

Instrument

cluster

electrical

connections.

9. Remove Instrument cluster

REFITMENT

Follow above procedure in reverse for fitment.

WARNING



Swapping to analyze cluster defect:

It is strictly prohibited to swap clusters for defect

analysis from vehicles or from available stock.

Due to immobilizer Odometer learning strategy,

cluster odometer value will change permanently

to a higher value. For defect analysis, use

Diagnostics Tool or ETC (Engineering Test

MODE).
