ELECTRICAL

45

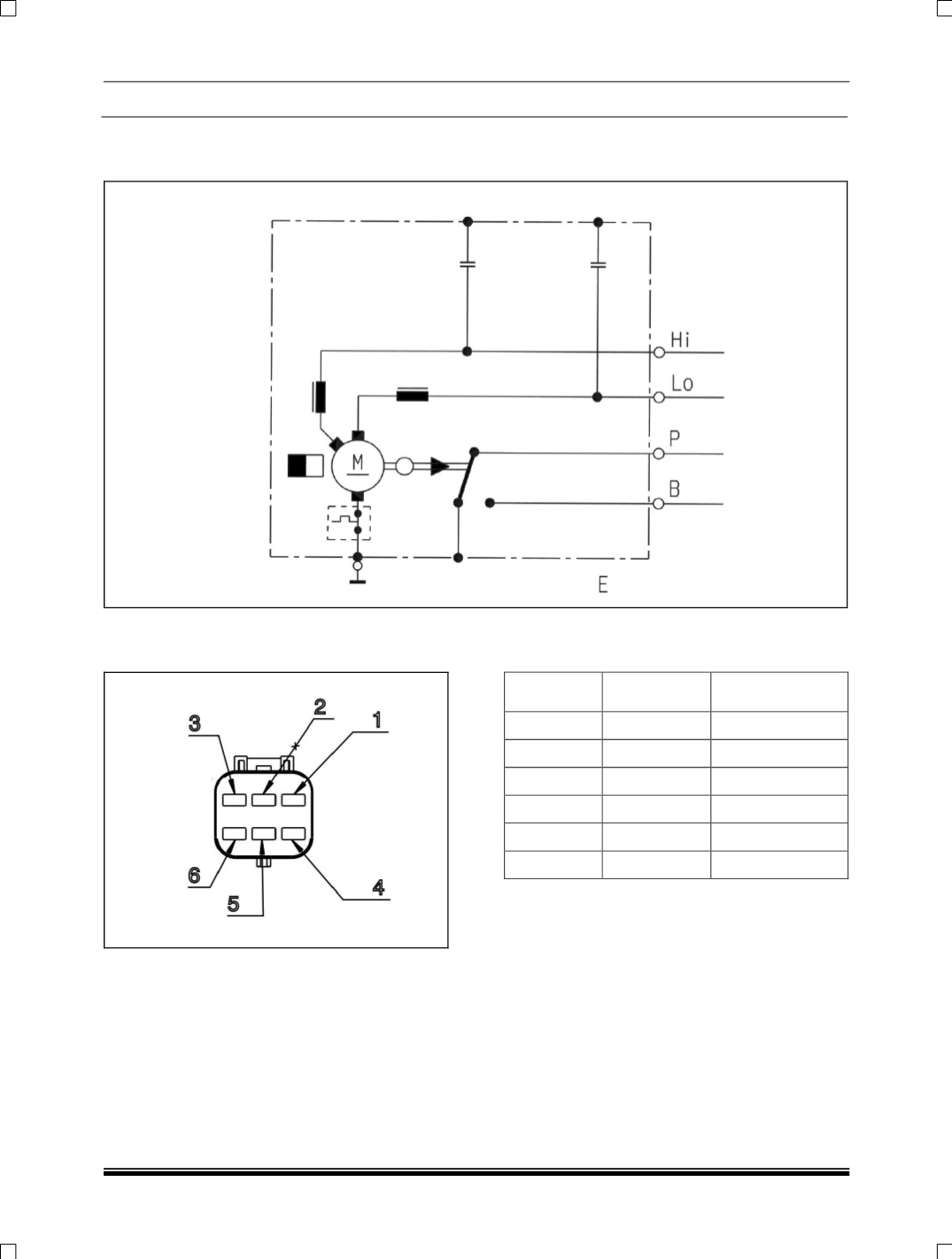

CIRCUIT DIAGRAM OF WIPER MOTOR

FRONT WIPER

PINOUT DETAIL:

PIN

SYMBOL

FUNCTION

1

-

Blank

2

Hi

High

3

Lo

Low

4

B

Battery

5

P

Parking

6

E

Earth
