TIAGO

ELECTRICAL

REAR WIPER

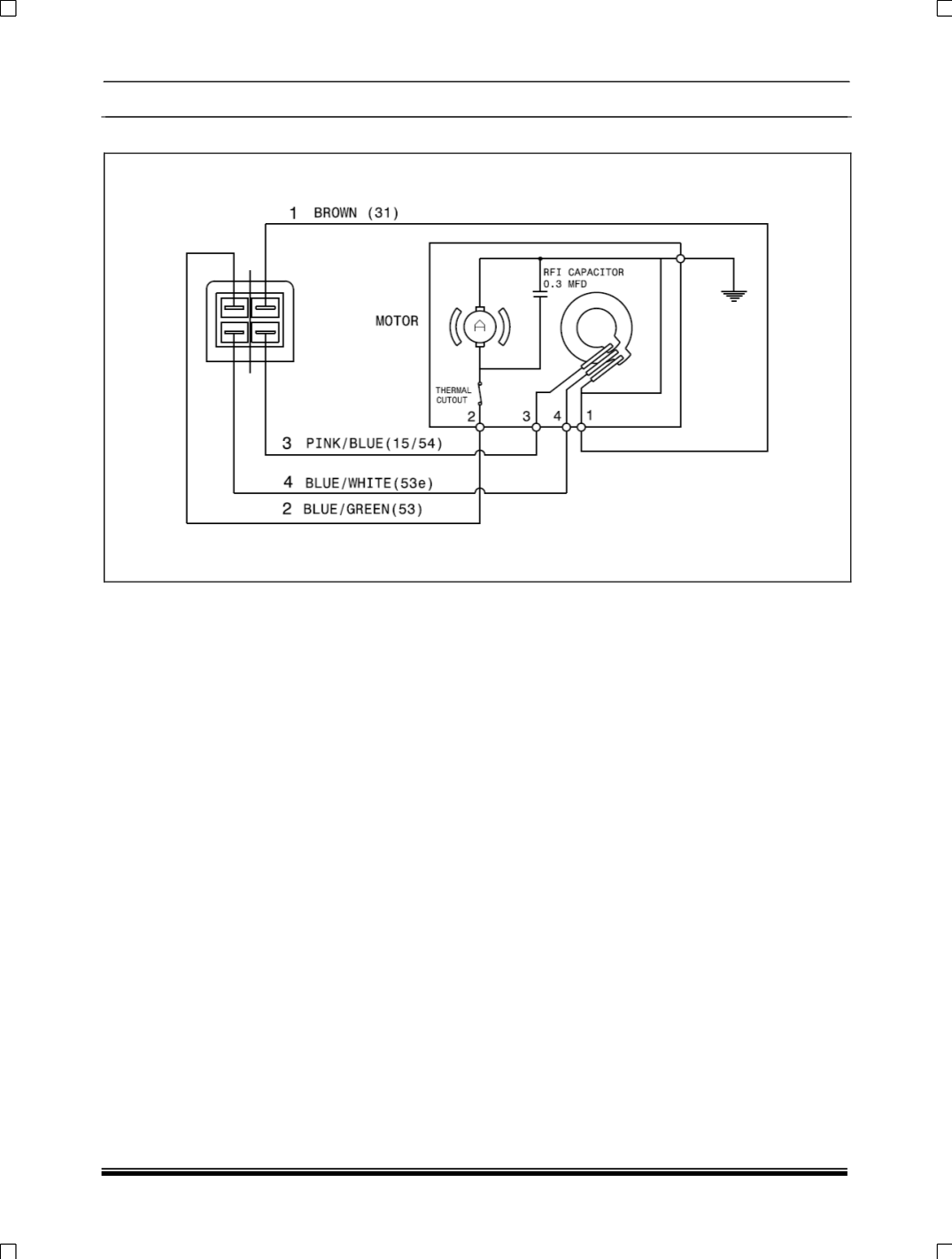

CONNECTION DETAILS

1. –VE supply to motor

2. Motor terminal

3. +VE supply parking switch

4. Parking switch

AMP

CONNECTOR HOUSING: HSG (110 SRS 4P)

TERMINAL: TER (110 SRS 4P TAB)

All cables are of 0.85 sq. mm cross section and as per JIS-C-3406
