ELECTRICAL

26

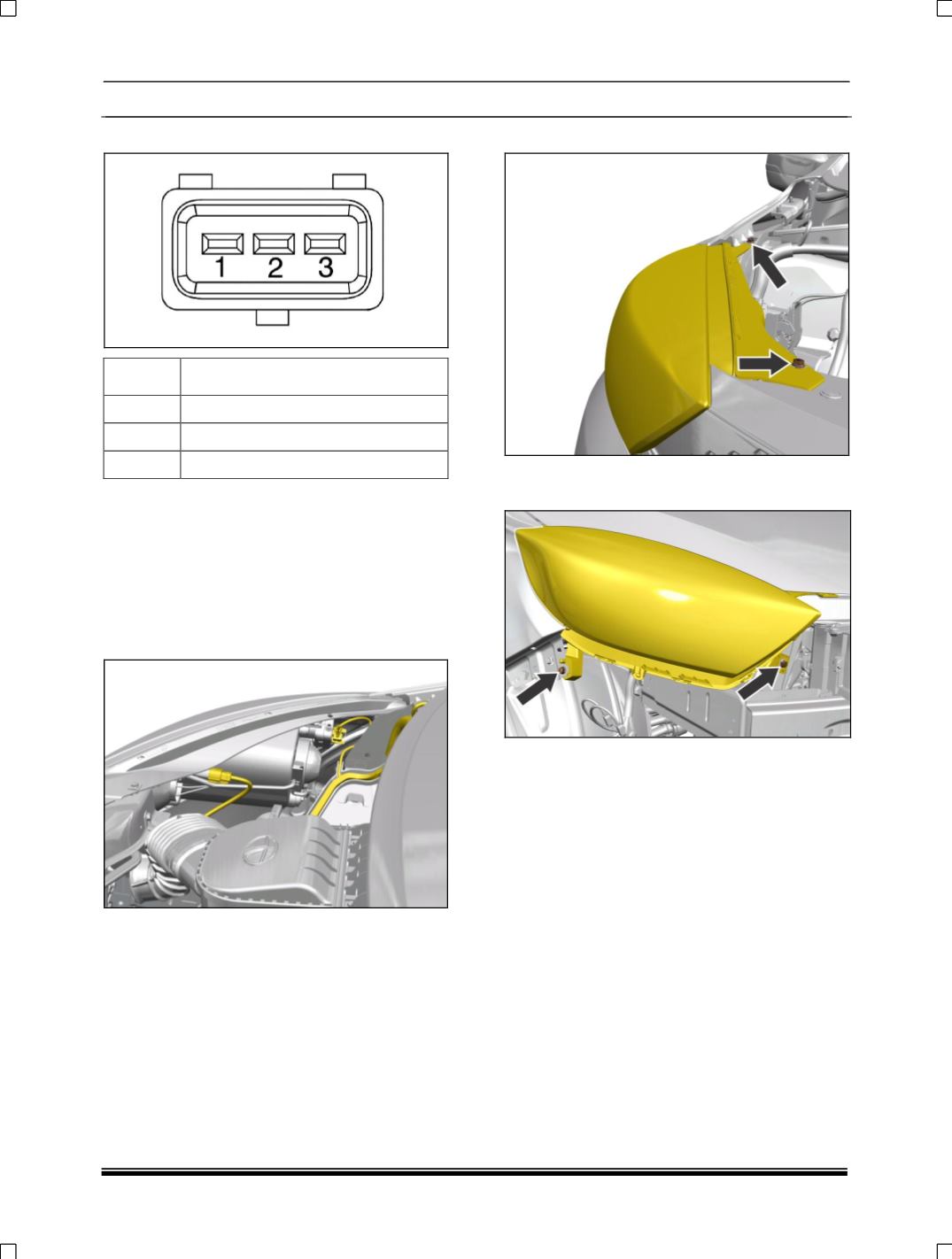

b. Head lamp leveling mating connector.

PIN

DESCRIPTION

1

Power Line +ve

2

Command

3

Power Line -ve

REMOVAL AND REFITMENT OF HEAD LAMP:

REMOVAL

1. Open engine hood & ensure all lamps are in

OFF condition.

2. Remove front bumper. Refer "Removal & Re-

fitment of Front bumper" from Body Section.

3. Disconnect head lamp connectors.

4. Loosen head lamp two top mounting fasteners.

5. Loosen head lamp "Inner Mounting" & side

fastener.

6. Hold head lamp properly and remove it.
