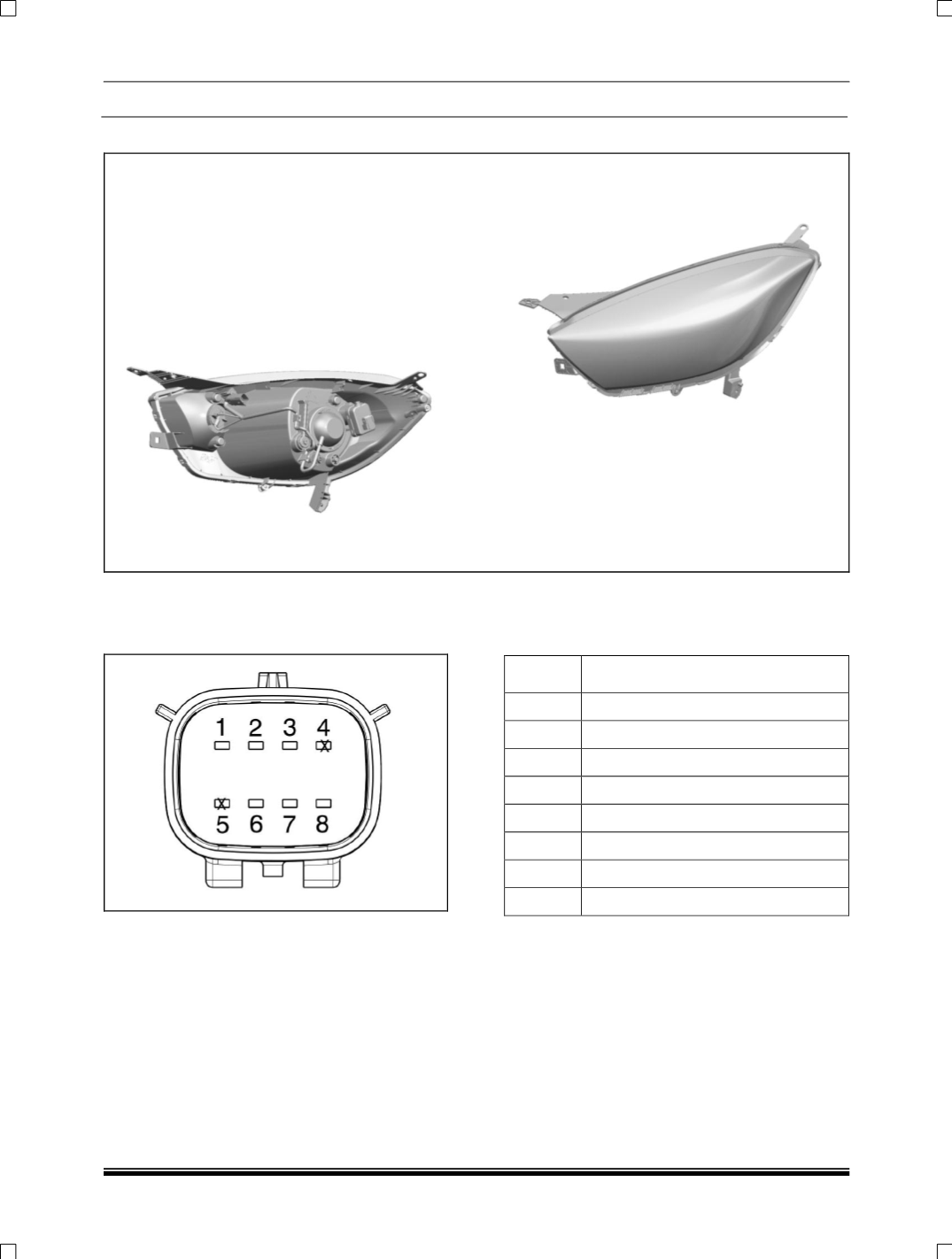

8.7.4 HEAD LAMP

PINOUT DETAILS

a. Head lamp connector

PIN

DESCRIPTION

1

Low Beam

2

High Beam

3

Turn Indicator

4

Dummy

5

Dummy

6

Ground (Low/High Beam)

7

Ground (Turn & Position)

8

Position Function
