BRAKES

30

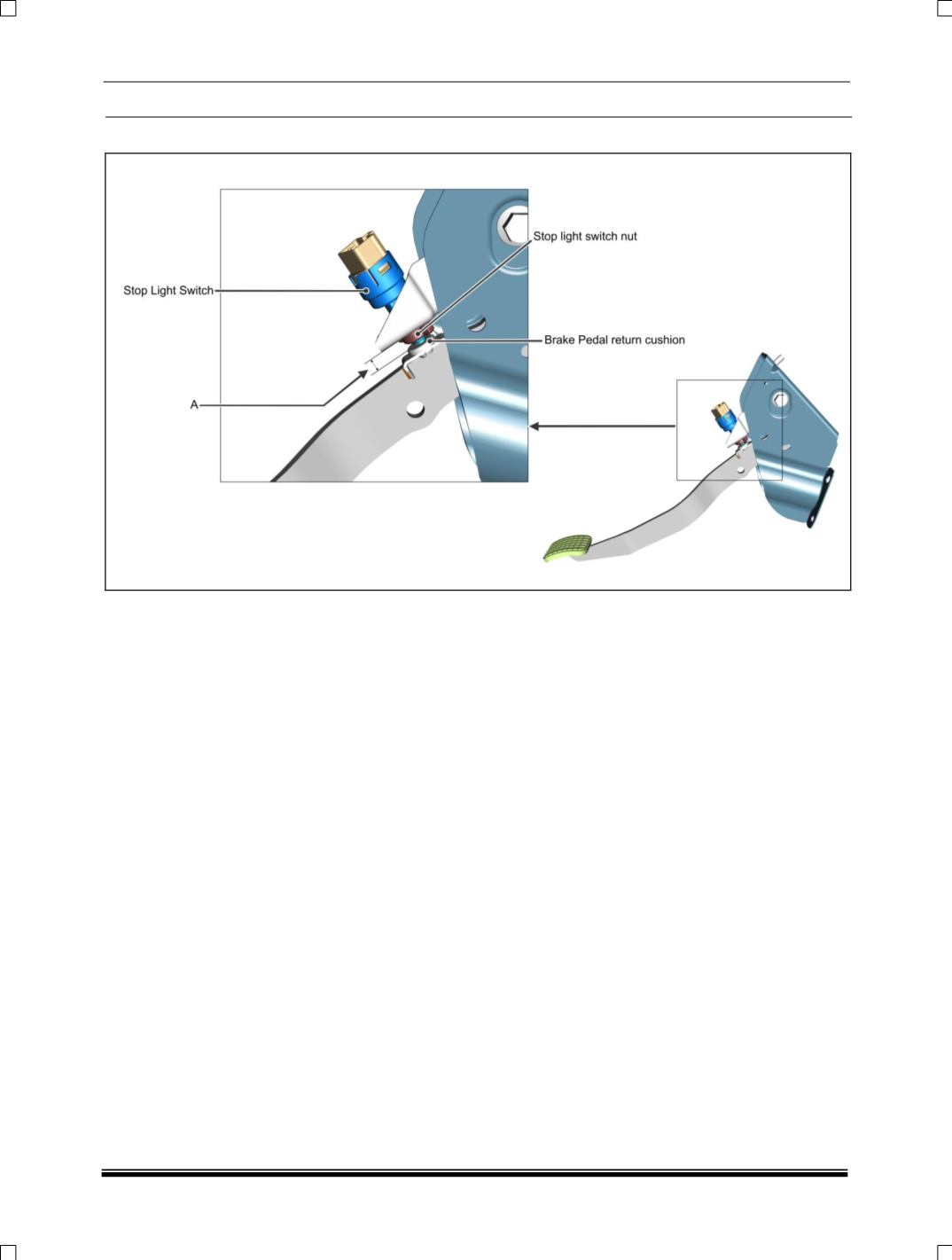

STOP LIGHT SWITCH ADJUSTMENT

NOTE:

Before performing stop light switch

adjustment, ensure that booster is connected

with clevis pin.

Ensure brake pedal is assembled with booster

and confirm bleeding completed. This will

ensure brake pedal initial position,

(This is the condition to ensure prior to

assemble of brake light switch.)

Ensure the dimension “A” between threaded body

end of switch and brake pedal return cushion =

2.0 ± 0.5 mm
