DRIVETRAIN-TA65 Star

75

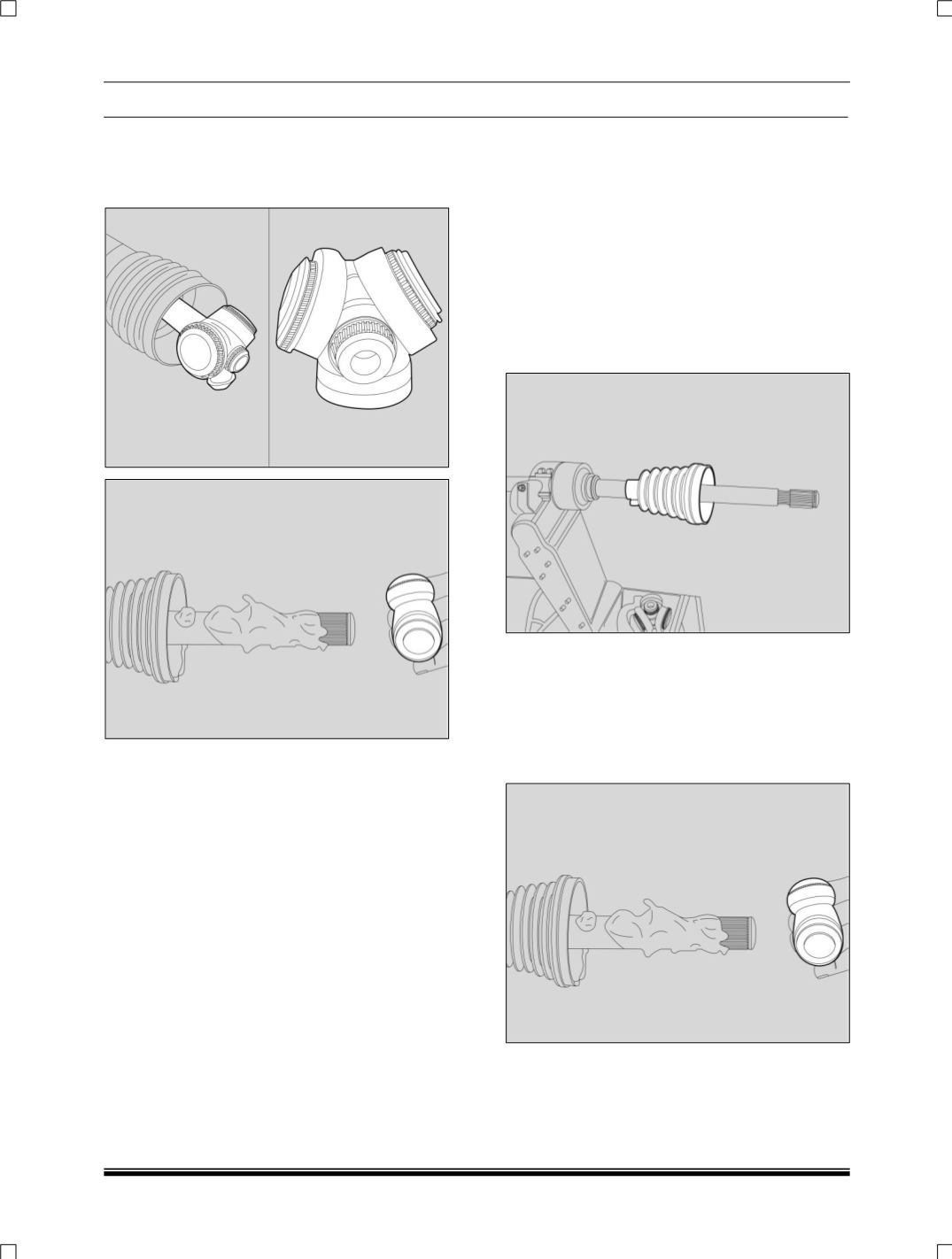

6.Remove the tripot spider assembly from the

axle shaft as showing below figure. If required

tab the spider assembly gently using a nylon

mallet.

7.Clean the following items thoroughly with

cleaning solvent. Remove all traces of old

grease and any contaminates.

a. Tripot balls

b. Needle rollers

c. Housing

Dry all the parts. Inspect these parts for damage

or wear.( If any of the parts are damaged, the

entire sub- assembly along with the outer housing

needs to be replaced.)

After this remove the rubber boot from the axle

shaft.

ASSEMBLY PROCEDURE:

1. Install the new small seal retaining clamp on

the neck of the seal. Do not crimp the small

seal retaining clamp. Slide the tripot seal into

the axle shaft, passing over the seal grooves

of the axle shaft towards the CV end of the

axle.
