10. Loosen the cable grommet nut mounting from
firewall to remove the assembly.
ASSEMBLY:

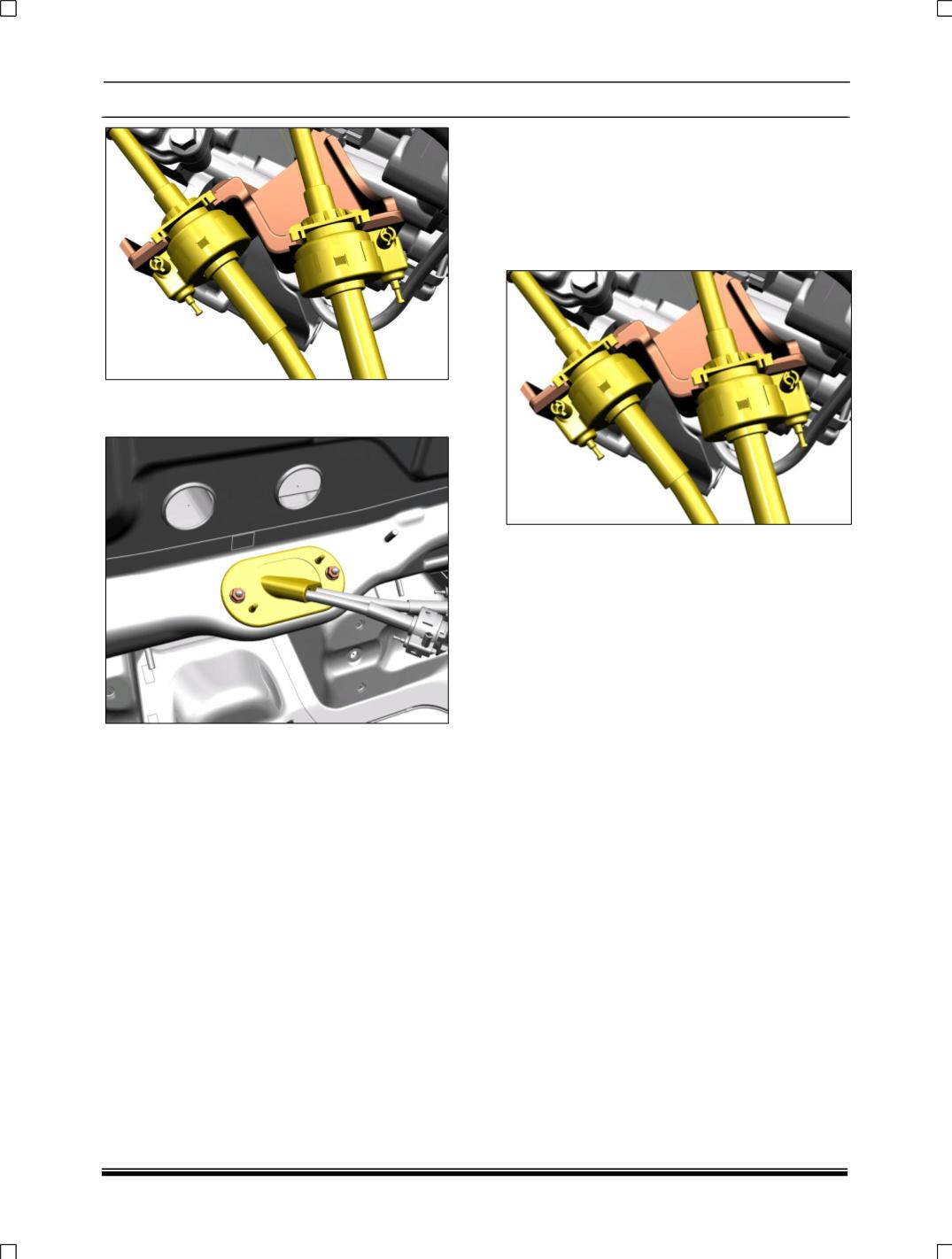

1. Refit the selector shifter cable over the
transaxle bell crank lever and assembly
selector shifter shaft end
2. Pull and hold the plunger of the transaxle
cable. Then snap fit the cables over the
transaxle cable anchoring bracket.
3. Insert the cable through the firewall and
tighten its mounting on it.
4. Position and tighten the assembly gear shift
housing on the cab floor.
5. Refit the selector and shifter cable lock on the
assembly gear shift housing
6. Fix the selector cable on the assembly gear
shifter housing and leave the fastener over it
just holding.
7. Tighten the selector cable fastener after
ensuring the gear shift lever is in vertical
position.
8. Push the shifter cable cup to the gear shift
lever bottom end and lock it.
9. Place the center console over the assembly
and assemble it.
10. Then fix gear shift lever knob and Bellow.
