TIAGO

DRIVETRAIN-TA65 Star

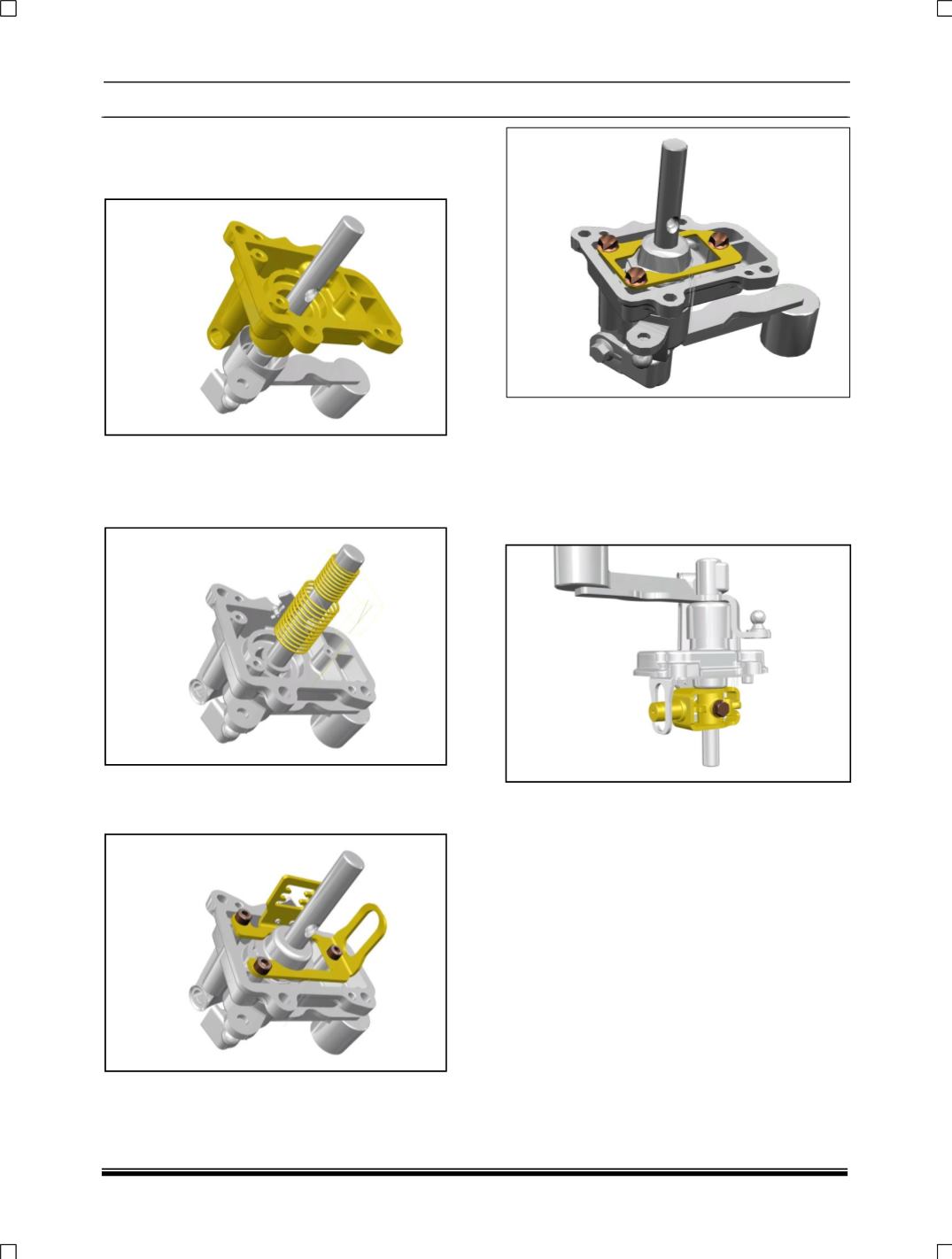

2. ASSEMBLY:

1. Place the selector shifter shaft along with dust

cover in the top cover.

2. Put the lower diameter spring (1st/2nd

Selection) after placing spacer over the shaft

as shown and place the larger diameter

spring (5th / reverse Selection )

3. Compress both the springs and put the cup

above it and tighten with M8 bolts with cup

holding plate.

For High version

For Low version

4. Apply Anabond 112 TS: 25408 on threads of

all fasteners for top cover assembly.

5. Move the interlock piece along with barrel,

spring and central detent and finger (selection

and shifting).

6. Lock the assembly by tightening the cross pin

(shifter/ Selector finger).

7. Insert the Bush in the top cover assembly and

place the spacer and sealing ring over the

bush.

8. Place the bellow over the selector shifter shaft

and insert the bell crank lever over the shaft

notch in such a way that it exactly sits over

the bush, spacer and sealing ring.

9. Insert the M12 bolt and tighten the bell crank

lever over top cover assembly to a specified

torque.
