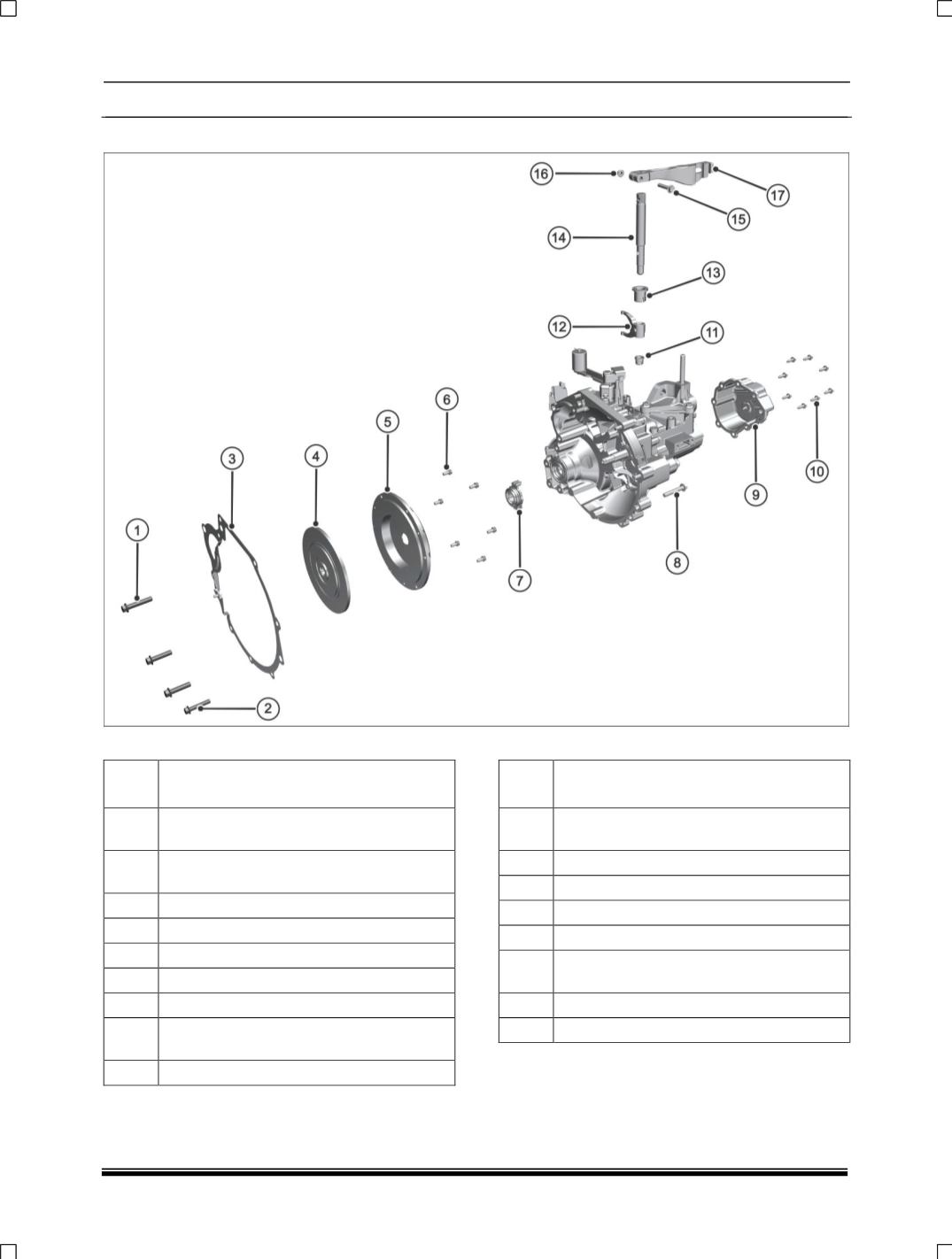

4.6. B. CONSTRUCTIONAL DETAILS (DIESEL)
Sr.
No.
COMPONENT DESCRIPTION
1
Hex Fl Bolt M10X55 TS17130-8.8
SS8451-8C
2
Hex Fl Bolt M10X45 TS17130-8.8-
SS8451S2-Y
3
Back Cover
4
Clutch Disc Assembly
5
Clutch Pressure Plate
6
Hex. Flange Screw
7
Sleeve
8
Hex Fl Bolt M10X65 TS17130-10.9-
SS8451-8CH
9
Rear Cover
Sr.
No.
COMPONENT DESCRIPTION
10
Hex Fl Bolt M8X25 TS17130-8.8-
SS8451-8C
11
Bush, Lower
12
Clutch Release Yoke
13
Bush, Upper
14
Clutch Release Shaft
15
Hex Fl Bolt M8X45 TS17130-8.8-
SS8451S2-Y
16
Hex Nut AM8 TS17430-8-SS8451-8C
17
Clutch Release Lever
