TIAGO

DRIVETRAIN-TA65 Star

4.6. H. PROCEDURE FOR CLUTCH ADJUSTMENT:

NOTE:

There is no free play in the system and hence no

clutch pedal free play adjustment is required.

However, for ensuring the proper functioning of the

clutch the following procedures should be used.

1. Clutch pedal height should be same as the

brake pedal height. Brake pedal height is

automatically ensured by protrusion of Booster

push rod (refer Brake pedal adjustment from

Brake Group).

2. The clutch pedal height from the floor keeps on

increasing as the clutch lining wears.

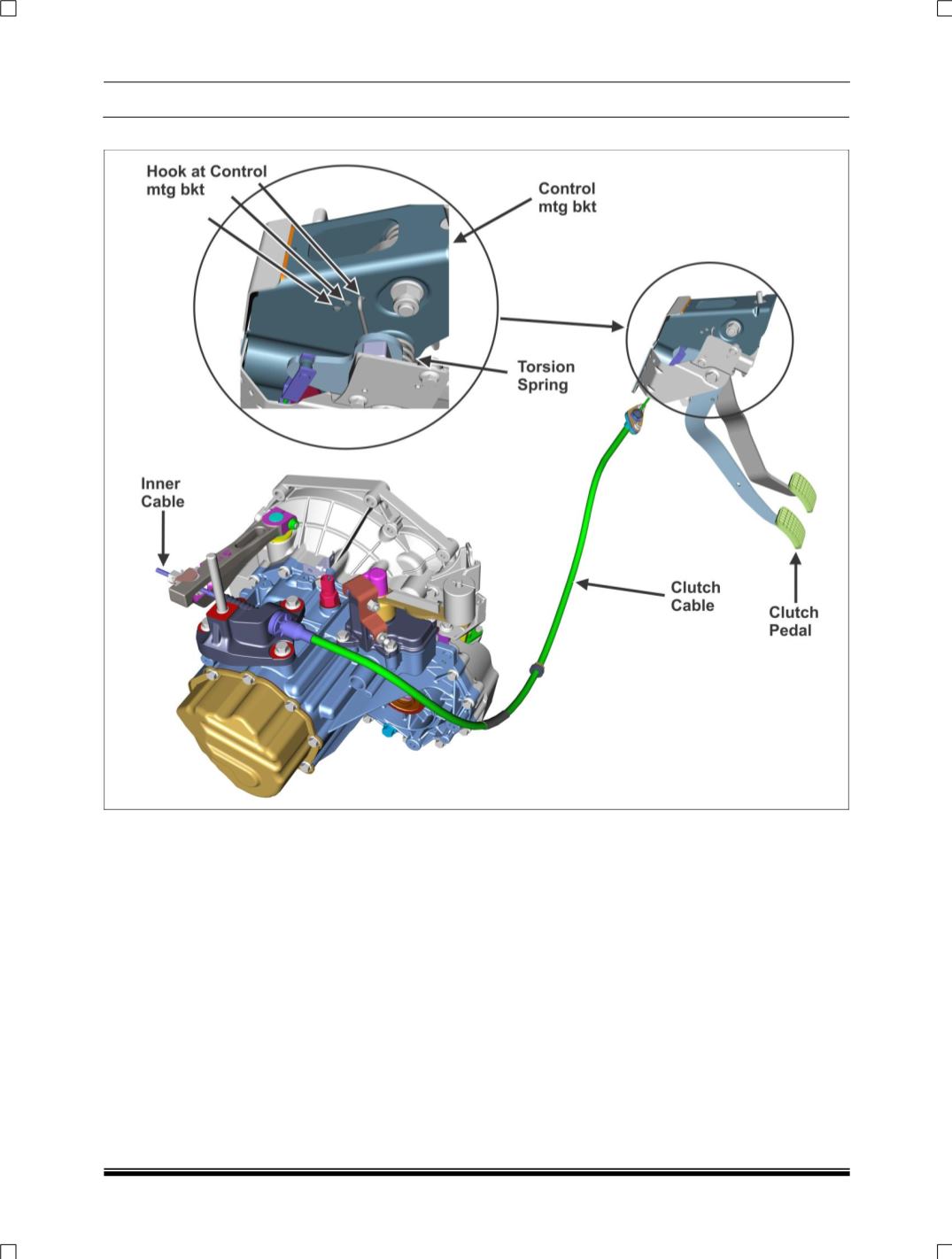

3. Clutch pedal height can be adjusted by setting

4. The nut provided on the clutch release lever.

The release lever is located on transaxle

housing. Turn the nut by hands so as to get

clutch pedal height same as brake pedal height,

and cable is sufficiently stretched. Press the

clutch pedal 2/3 times and confirm the height.

It should be possible to lift the clutch pedal by

hand easily without much force. The pedal

should have movement of 40 to 50 mm. If pedal

lifting force is high, (more than 0.9 kg.) then

shift the position of tension spring hook on

holes 1, 2 and 3 for reducing tension

NOTE

1. Not to add carpet over the basic carpet in the

pedal region,

2. Basic carpet should be held firmly in the pedal

region.
