DRIVETRAIN-TA65 Star
21
4.6. CLUTCH

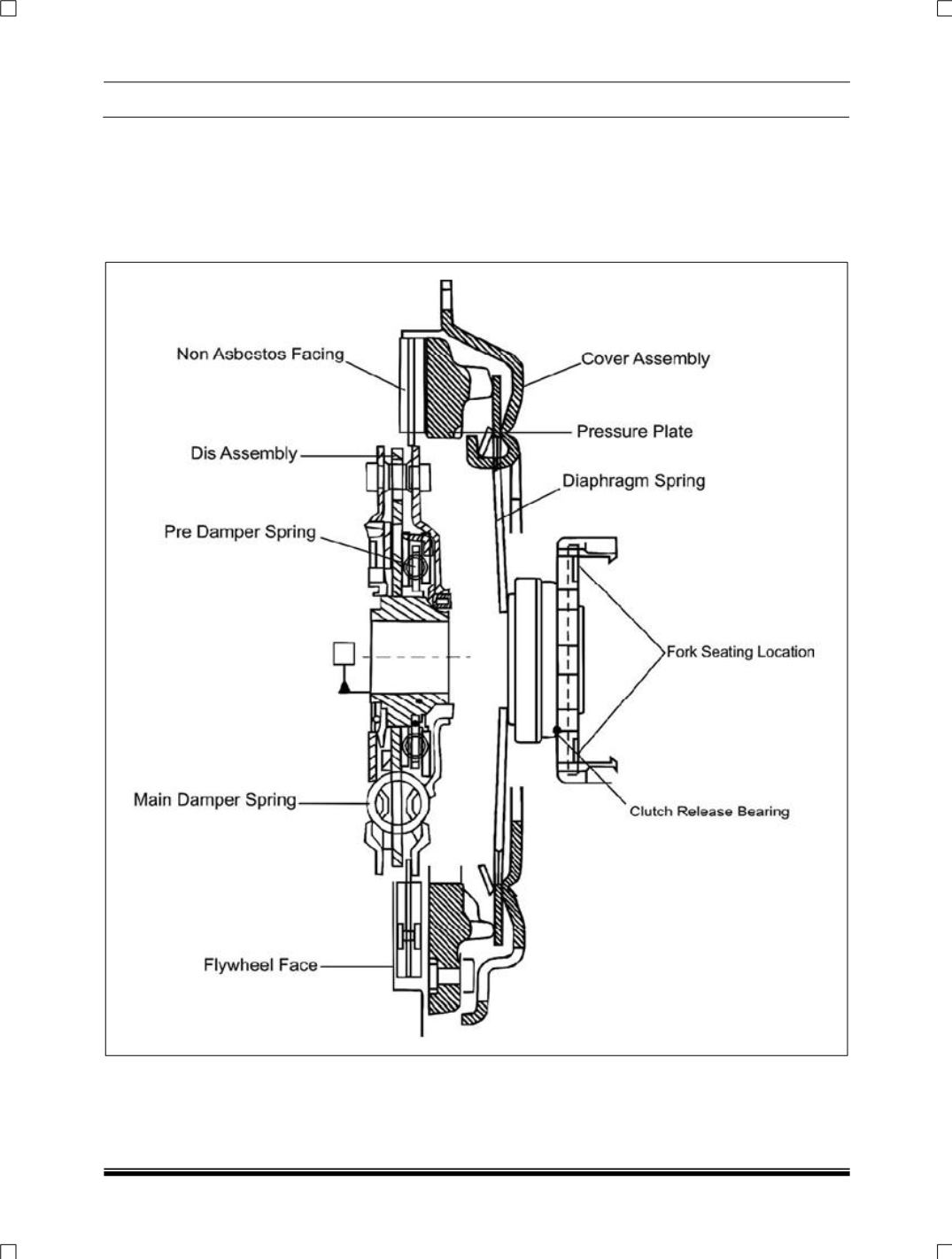

4.6. A.THEORY OF DIAPHRAGM SPRING CLUTCH (Fig 5):
When engaged, the clutch allows the engine driveline to rotate together as one solid member
When disengaged, the engine from the driveline allowing it to remain running while the vehicle is stopped.
The clutch can be used to interrupt and reconnect the flow of engine power to allow the changing of
gears.
Fig. 5
