1.05L REVOTORQ ENGINE

143

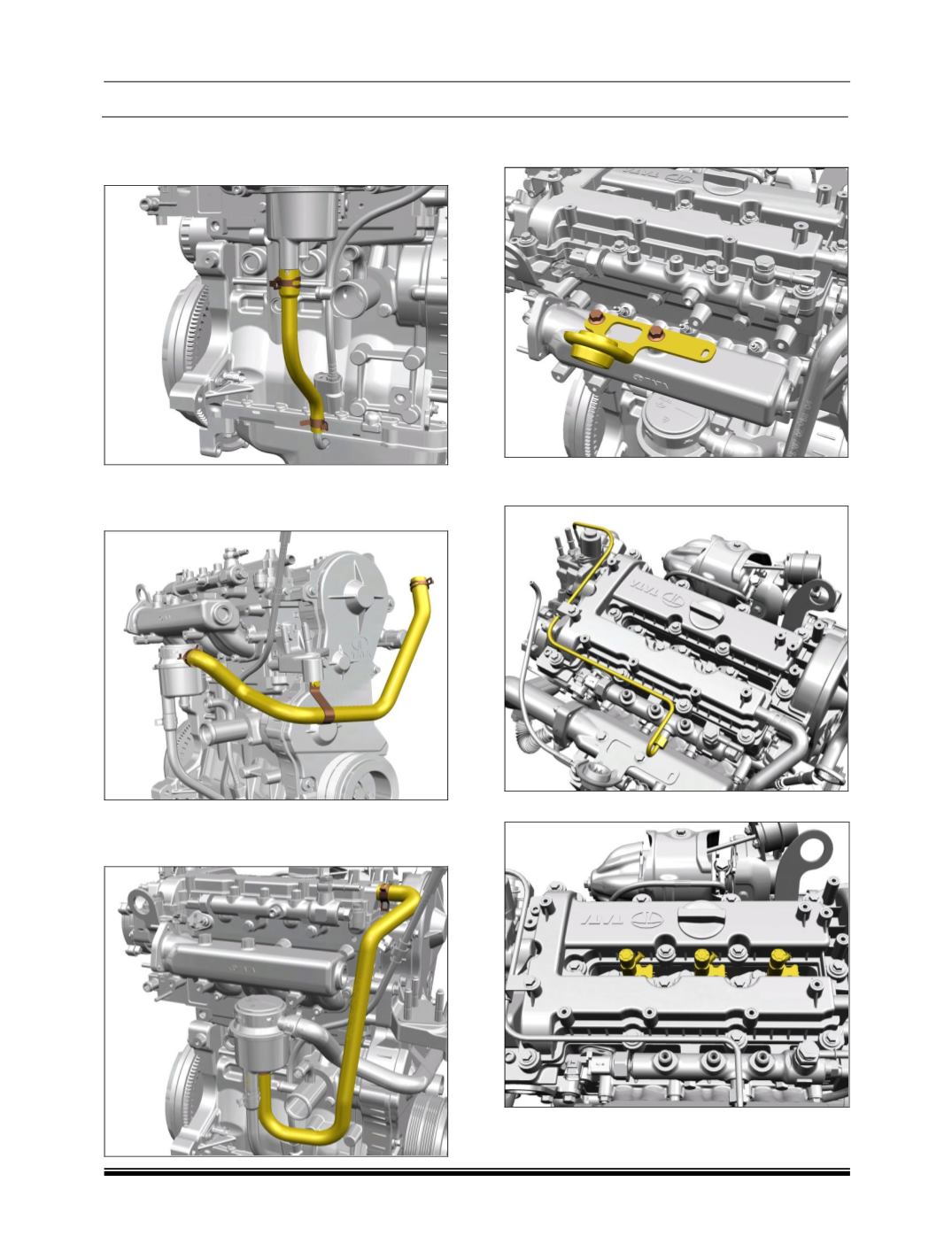

7. Install the spring band clamp and fit the

rubber hose between oil sump and oil mist

separator.

8. Install the spring band clamp and fit the

rubber hose between duct and oil mist

separator.

9. Install the spring band clamp and fit the

rubber hose between cylinder head cover and

oil mist separator.

10. Install Air Filter mounting bracket on intake

manifold.

11. Install cap connector of the HP line at the

common rail end.

12. Install the injectors.
