TIAGO

1.05L REVOTORQ ENGINE

142

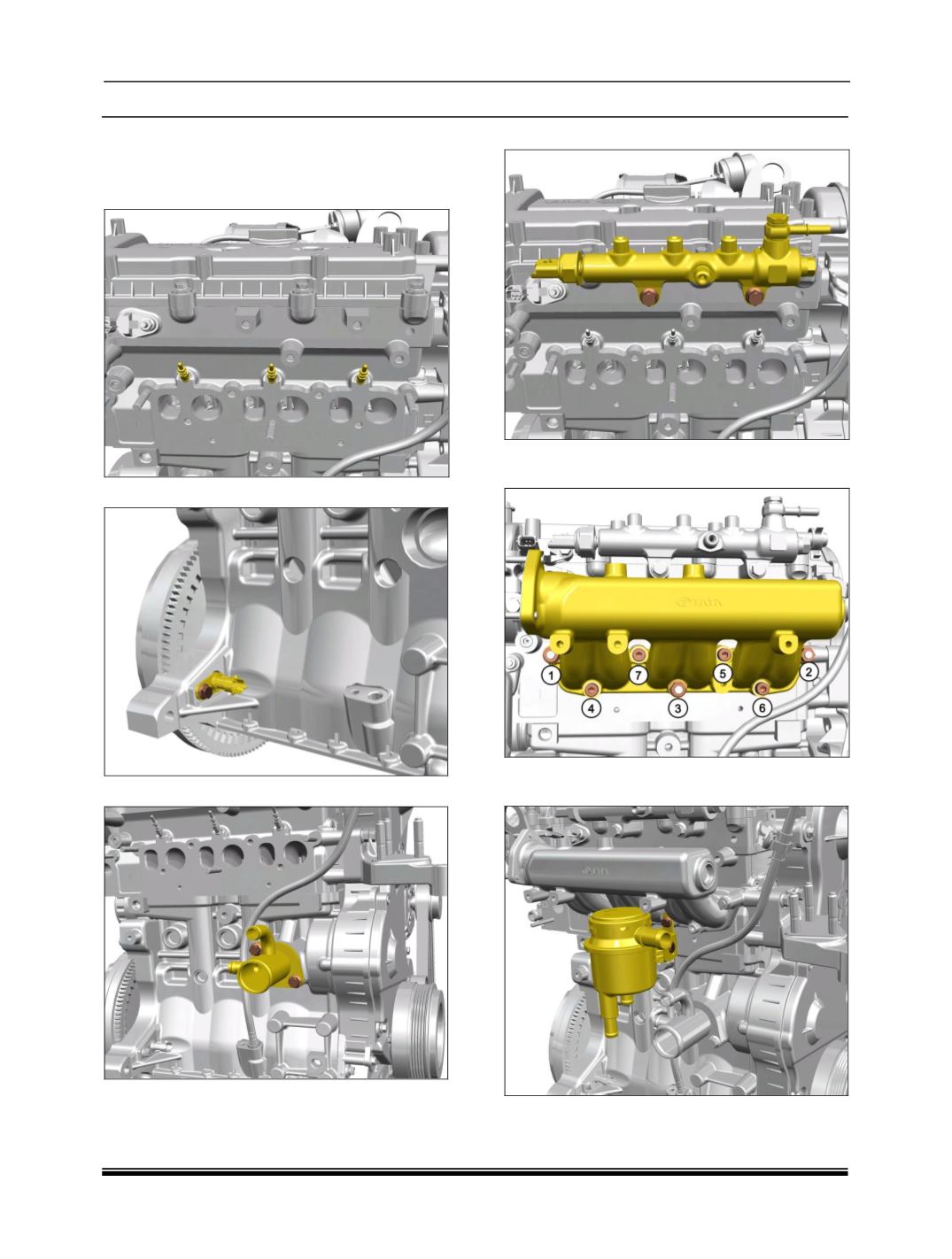

viii. FITMENT OF INTAKE MANIFOLD AND

PERIPHERALS :

1. Install g

low plugs fitted on the cylinder block

using extended socket.

2. Install Crank Position Sensor.

3. Install water inlet elbow assembly with gasket.

4. Install the fuel rail assembly.

5. Install the intake manifold along with gasket

and bolt tightening sequence.

6. Install the oil mist separator along with the

bracket.
