TIAGO

1.05L REVOTORQ ENGINE

C. COOLING SYSTEM :

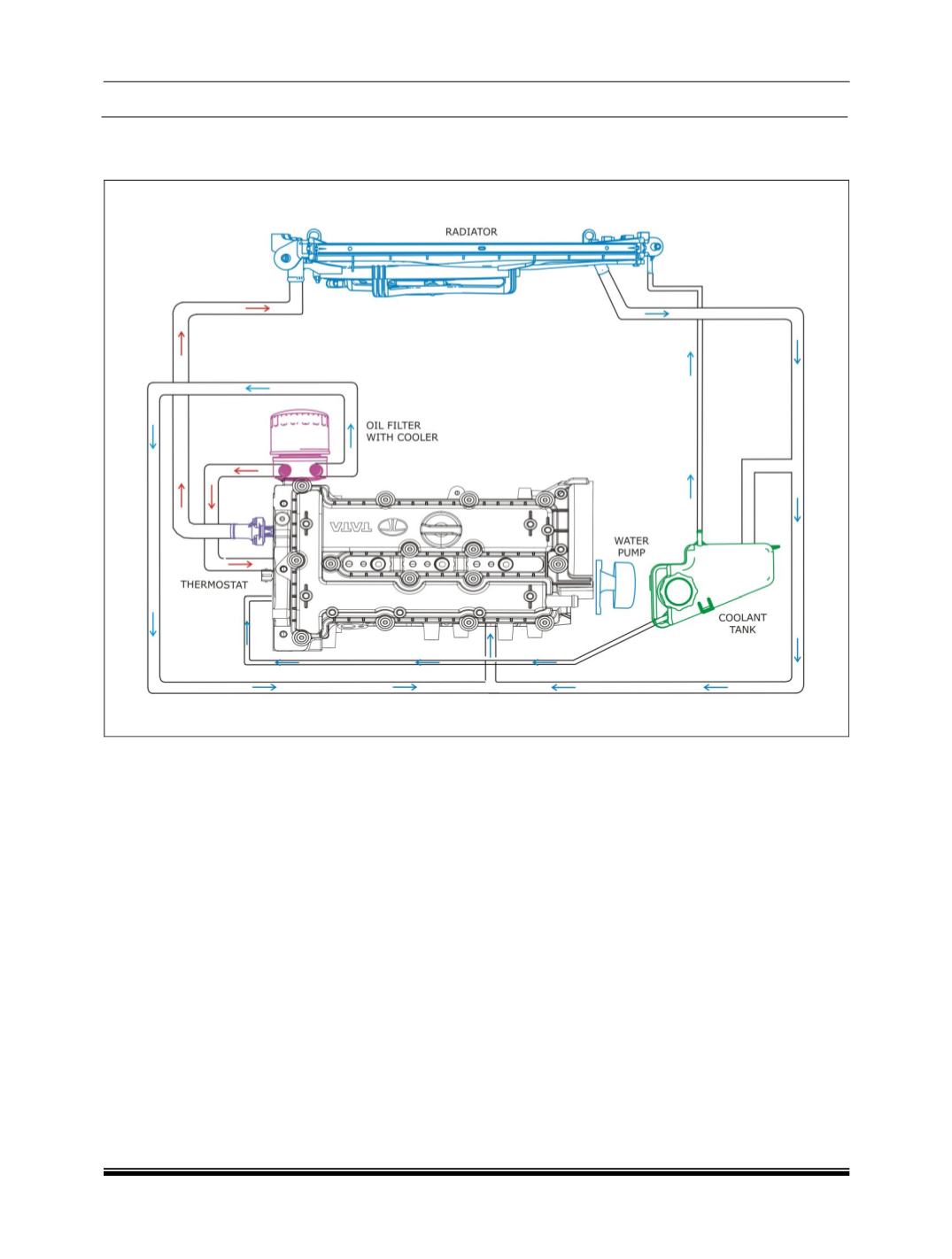

Cooling System Schematic Layout :



Description :

The above figure gives the coolant flow cir-

cuit with the components. The coolant flow is

controlled by the thermostat

In addition to the Cyl-

inder head and block, the coolant also circulates

through Oil cooler, and EGR Cooler

Auxiliary tank is provided to compensate for

the drop in coolant level. In addition there is a de-

gassing line connected between thermostat housing

and radiator top tank. These help in maintaining the

system pressure created by expansion and contrac-

tion of the coolant.

The Cooling system consists of the follow-

ing components.

1. Radiator.

2. Auxiliary Tank

3. Thermostat.

4. Water pump.
