ENGINE
183

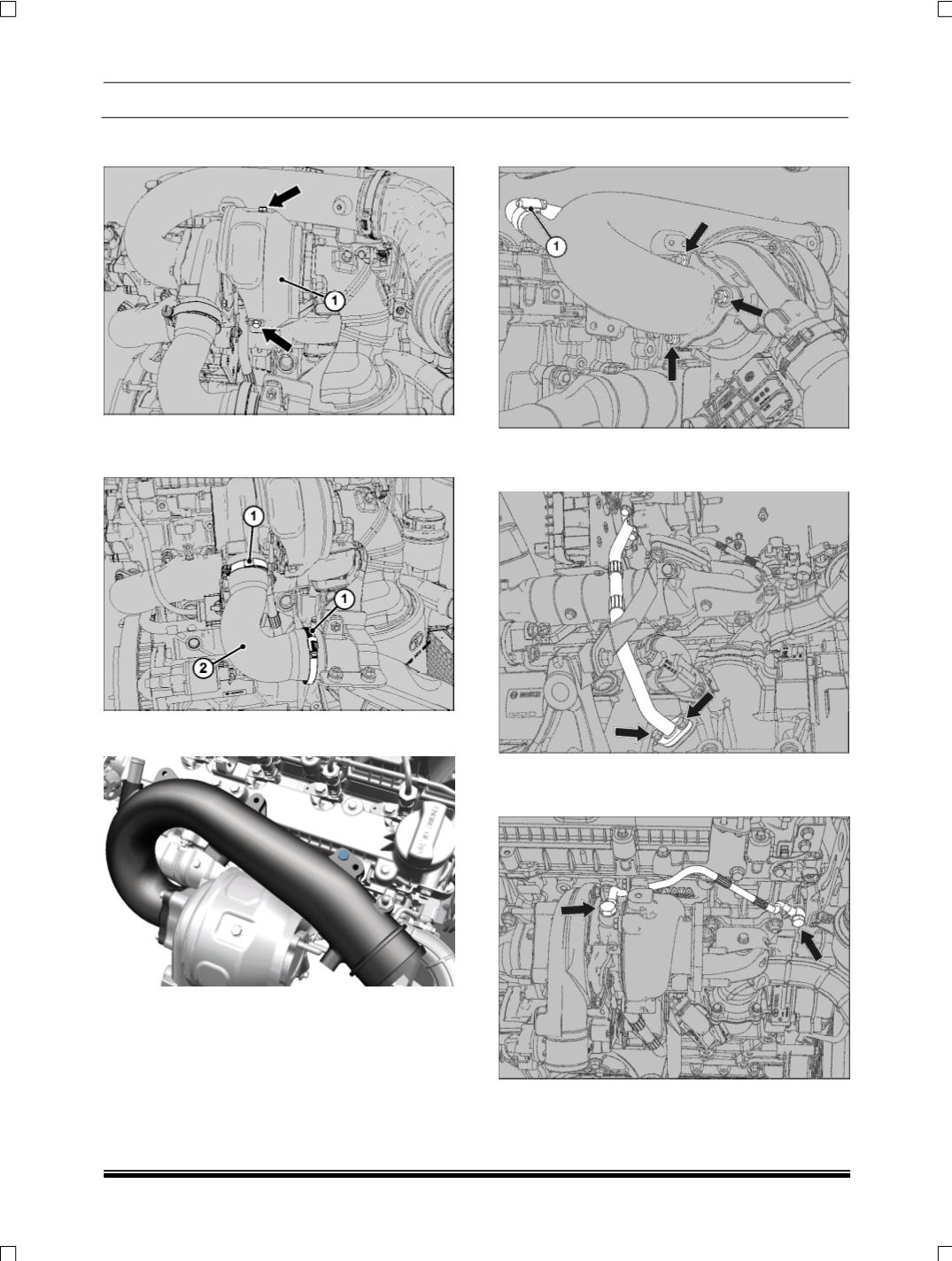

5. Remove the Turbocharger heat shield
(1)
by re-
moving the two mounting bolts.
6. Loosen and remove the clamps
(1)
and remove
the hose
(2)
between turbocharger and intercool-
er pipe.
7. Loosen and remove one mounting bolts of the
intake pipe.
8. Remove the OMS hose pipe
(1)
and loosen the
intake pipe nuts from turbocharger to remove it.
9. Disconnect the Turbocharger oil return tube
(2)
by removing two mounting bolts
(1)
from cylinder
block.
10. Loosen and remove the banjo bolt of oil feeder
line and disconnect the same from turbocharger
and cylinder head.
