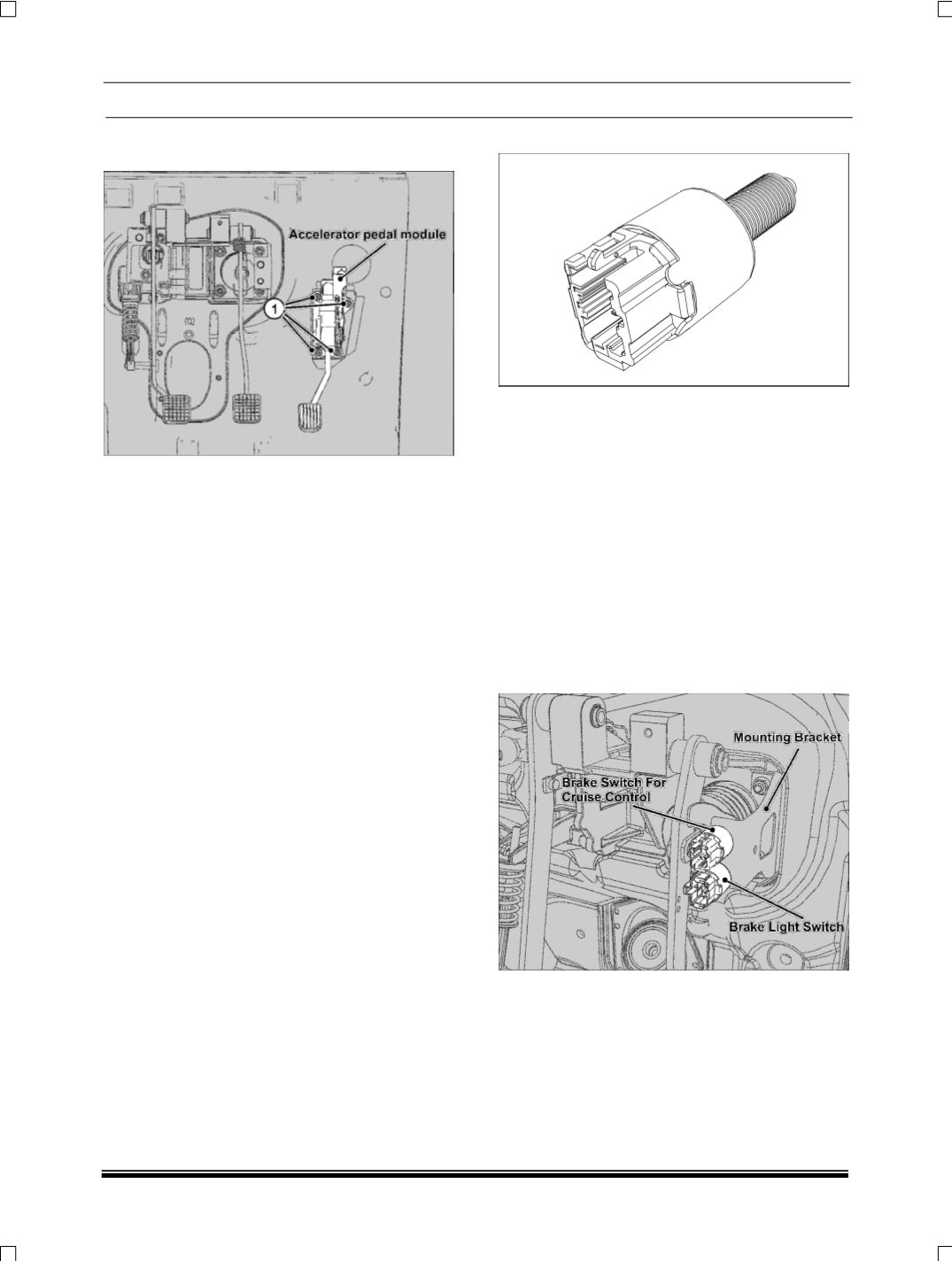

2. Loosen and remove the 4 mounting nuts (1)

and remove the accelerator pedal module.

INSPECTION

Check the resistance

•

1.7K ohm +/- 0.8 between terminals 1 & 5

•

1.2K ohm +/- 0.5 between terminals 2 & 3

REFITMENT

1. Locate accelerator pedal module and fit 4

mounting nuts.

2. Connect the accelerator pedal electrical connect-

or (1) to the accelerator pedal module.

12. BRAKE SWITCH

The brake pedal is fitted with two Brake switches,

which provide the information to ECU about the

brake pedal application.

•

Upper brake switch give signal to EMS ECU for

cruise control functionality.

•

Lower brake switch give signal to tail lamp&

ABS/ESP ECU.

NOTE

Brake switch for cruise control is fitted only if the ve-

hicle is having cruise control feature.

LOCATION

Brake switches are fitted on brake light switch

mounting bracket.
