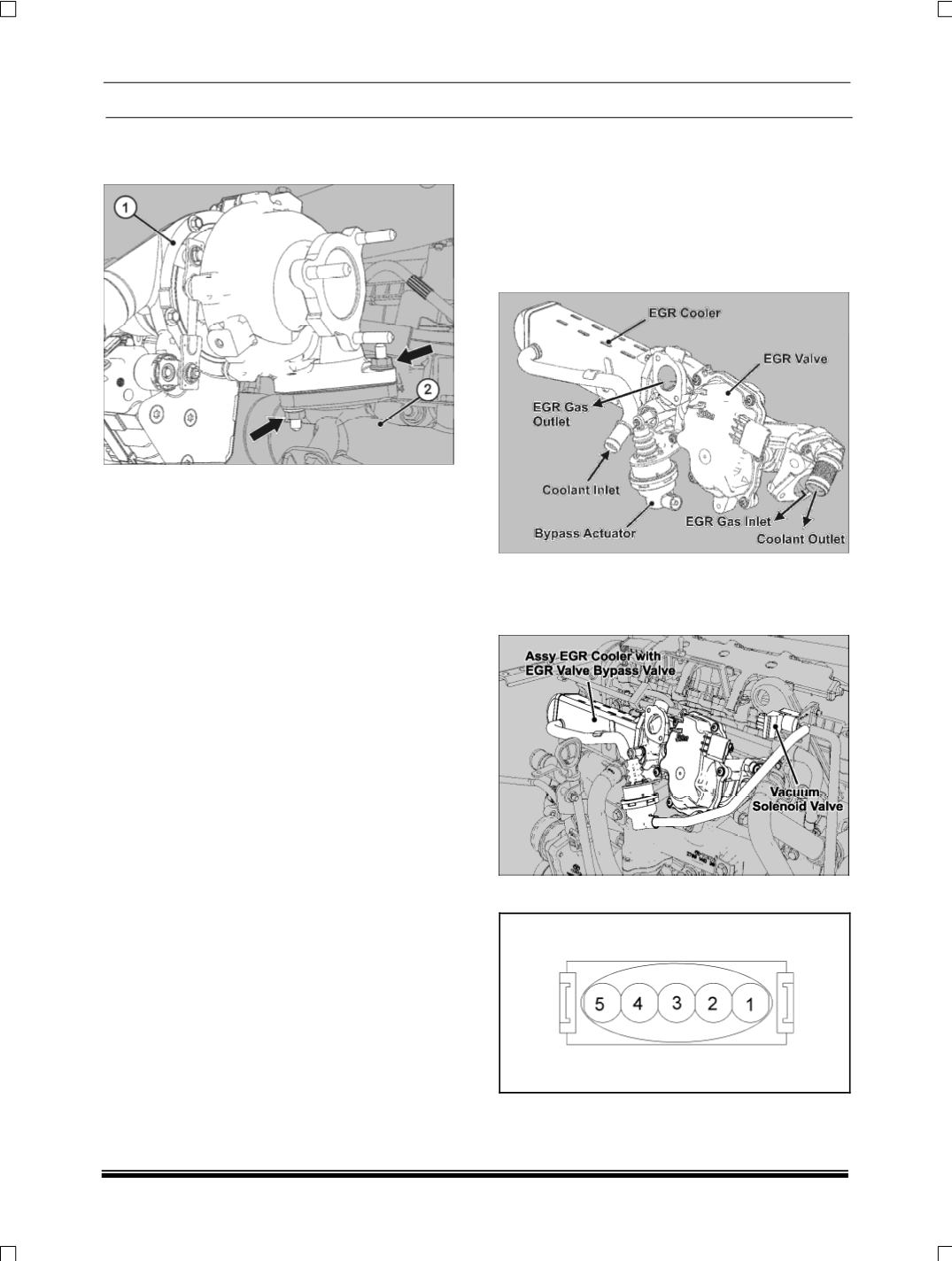

11.Loosen and remove three mounting nuts and take

out the turbocharger

(1)

from exhaust manifold

(2).

FITMENT

For fitment follow the reverse procedure of removal.

NOTE

•

Use new gasket and sealing washer every time

and tighten bolts to specified torque.

•

Check that the sealing washers are fitted on the

oil feeder line at the time of assembly.

16. EGR ACTUATOR

A DC motor drive is used to move the EGR valve

over the complete movement range. The DC motor

is directly controlled by the ECU of the Diesel en-

gine. EMS ECU High power integrated H-bridge

EGR actuator driver has diagnostics and fault detec-

tion feature. This driver is used for bi directional

current control of motor driven EGR actuator

LOCATION

EGR cooler assembly is mounted above intake

manifold

CONNECTOR DETAILS

PINOUT DETAILS
