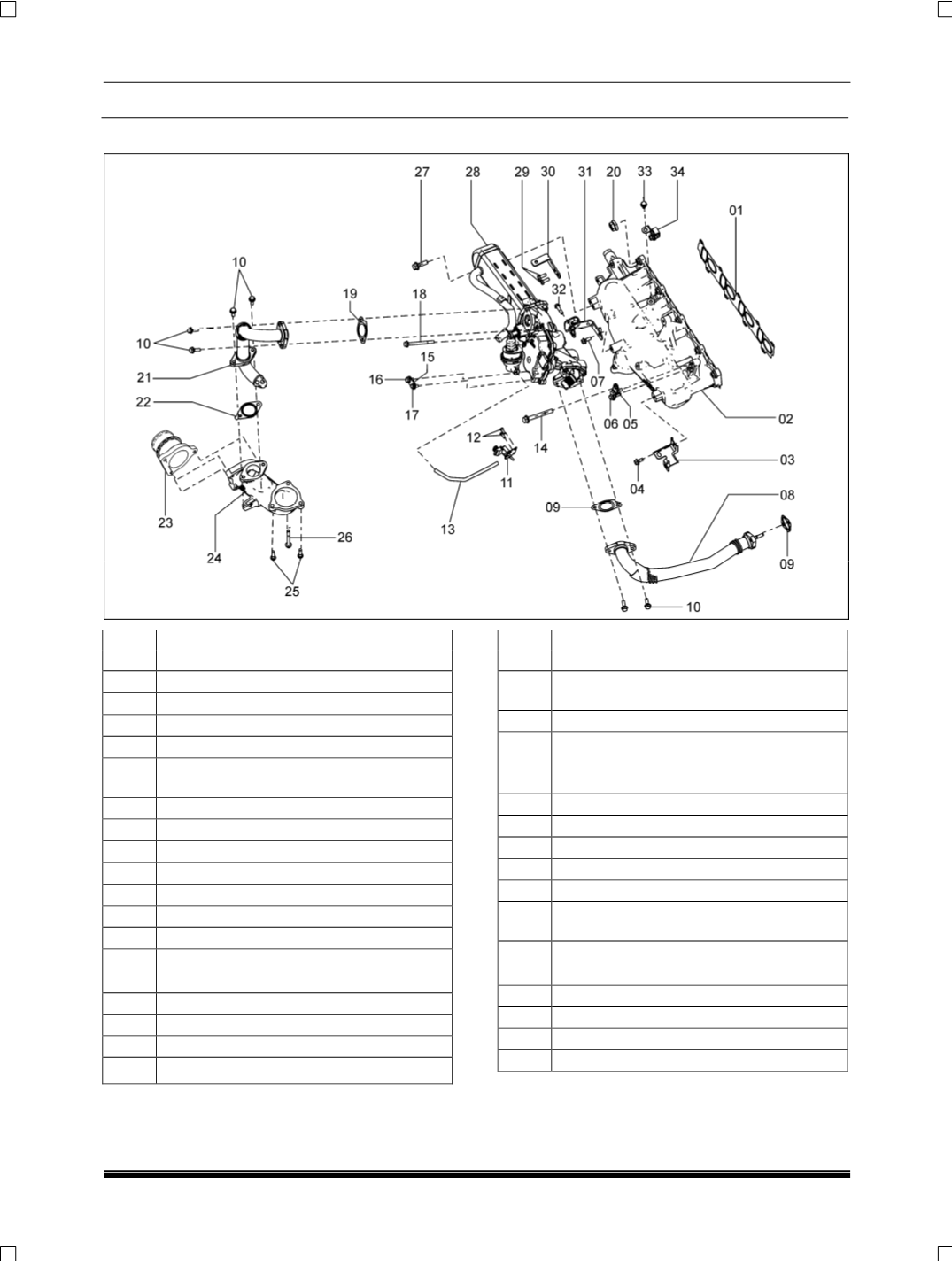

2.1.4.3 EXPLODED VIEW
ITEM
NO.
DESCRIPTION
01
Gasket-Intake Manifold
02
Intake Manifold
03
Bracket EMS Cable Mounting
04
Hexagonal Flange Screw M6x14
05
Assy. Bracket (Intake Manifold to EGR
Cooler)
06
Hexagonal Flange Bolt M6x22
07
Hexagonal Flange Screw M6x16
08
Assembly EGR Inlet Pipe
09
Gasket-EGR Valve to EGR Inlet Pipe
10
Hexagonal Flange Screw M6x20
11
Assembly Vacuum Solenoid Valve
12
Hexagonal Screw M4x12
13
Hose (EGR to Vacuum Solenoid Valve)
14
Hexagonal Flange Bolt M8x70
15
Bracket (Intake Manifold to EGR Cooler)
16
Hex Flange Screw M6x12
17
Hex Flange Screw M5x12
18
Hex Flange Bolt M6x70
ITEM
NO.
DESCRIPTION
19
Gasket (EGR Outlet Pipe to EGR Cool-
er)
20
Hex Flange Nut AM8
21
Assembly EGR Outlet Pipe
22
Gasket (EGR Pipe/EGR Cooler to Intake
Pipe)
23
Flange Pipe
24
Intake Adaptor
25
Hex Flange Bolt M6x25
26
Hex Flange Bolt M6x60
27
Hexagonal Flange Bolt M8x28
28
Assembly EGR Cooler Module with
EGR Valve and By Pass
29
Hexagonal Screw M6x16
30
Bracket (Wiring Harness)
31
Assembly Bracket(Dipstick Tube)
32
Hexagonal Bolt(M6x22)
33
Hexagonal Flange Screw M6x12
34
Assembly Clamp HP pipe
