ARIA

ENGINE

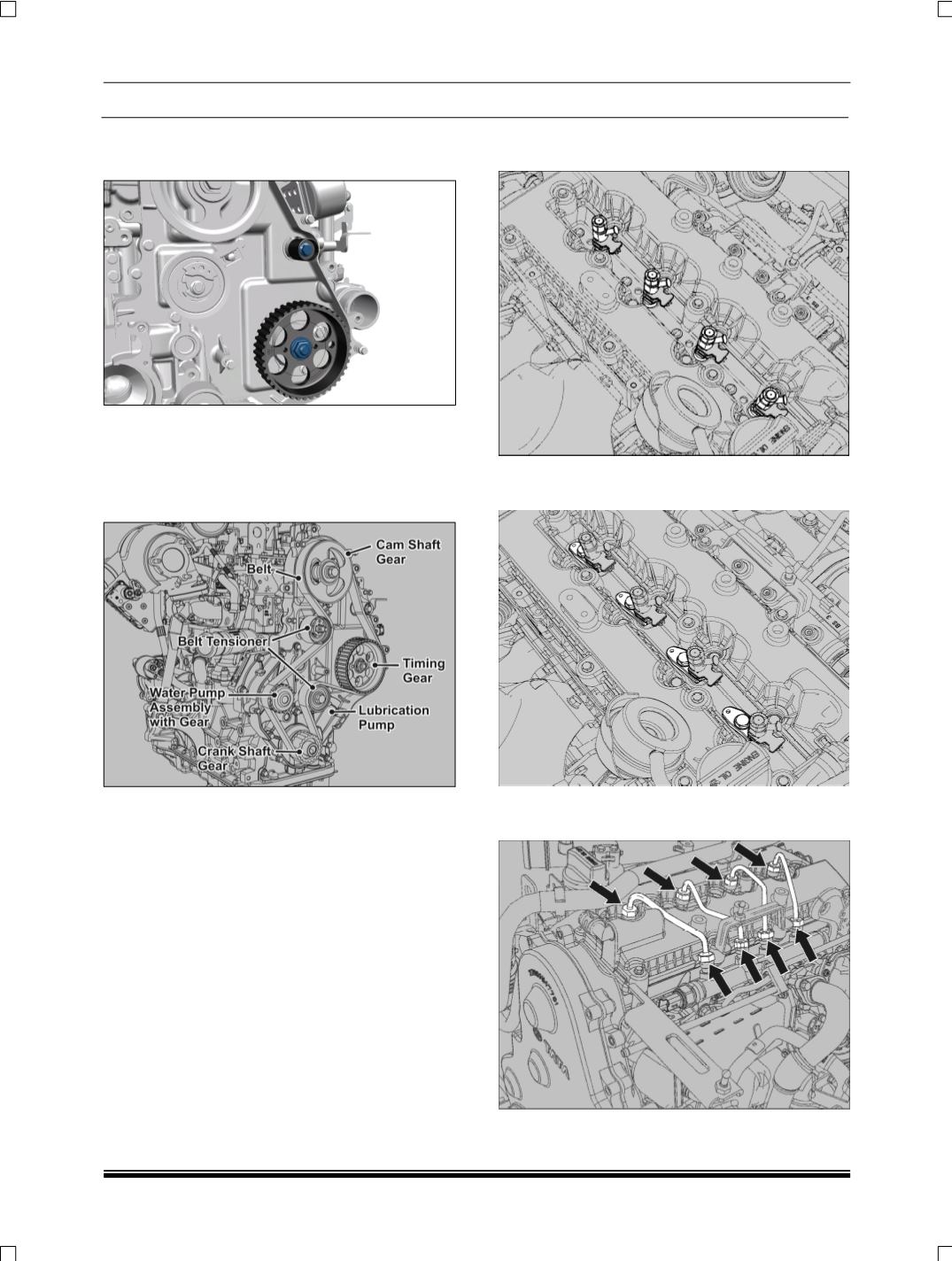

42.Assemble HP

43.pump gear and touch idler.

44.Fit the timing belt.

(For procedure refer timing belt

fitment process),

adjust the belt tension

and

fit the

front cover.

45.Assemble the lubrication pump, water pump as-

sembly, gears, pulley and tensioner

-fit the following components referring their

respective groups for its fitment.

i. Alternator – Refer Electrical Group.

ii. AC Compressor – Refer HVAC Group.

iii. Power Steering Pump – Steering group.

-fit the Alternator and AC belt and fit the power

steering stretch belt.

NOTE

Fit the new stretch belt.

48.Install all the injectors and mounting claw assem-

blies.

49.Mount the injector claw and tighten the injector

mounting claws to specified torque.

50.Remove the protective caps and assemble the

HP lines between common rail and injectors.
