5. Seal the ‘Transmission Control Unit’ in correct
ESD compliant bag closed by thermal welding
and containing Silica Gel unit (for humidity
absorbability).
6. Place the ‘Transmission Control Unit’ in an
ESD proof package designed to protect
connections, sensors and gasket from
accidental contact.
7. ‘Transmission Control Unit’ should not be kept
open exposed to the atmosphere for a longer
time. This may damage the ‘Transmission
Control Unit’.
8. The ‘Transmission Control Unit’ package must
ensure protection against the accidental fall of
tools or other pieces, in particular on the
connectors and sensors.
9. Never
use improper tool (screwdrivers, etc.) to
lift and extract the ‘Transmission Control Unit’
from the electro valve block.
10. The surface of the electro valve block must be
absolutely
clean and free from oil or other
polluting substances.

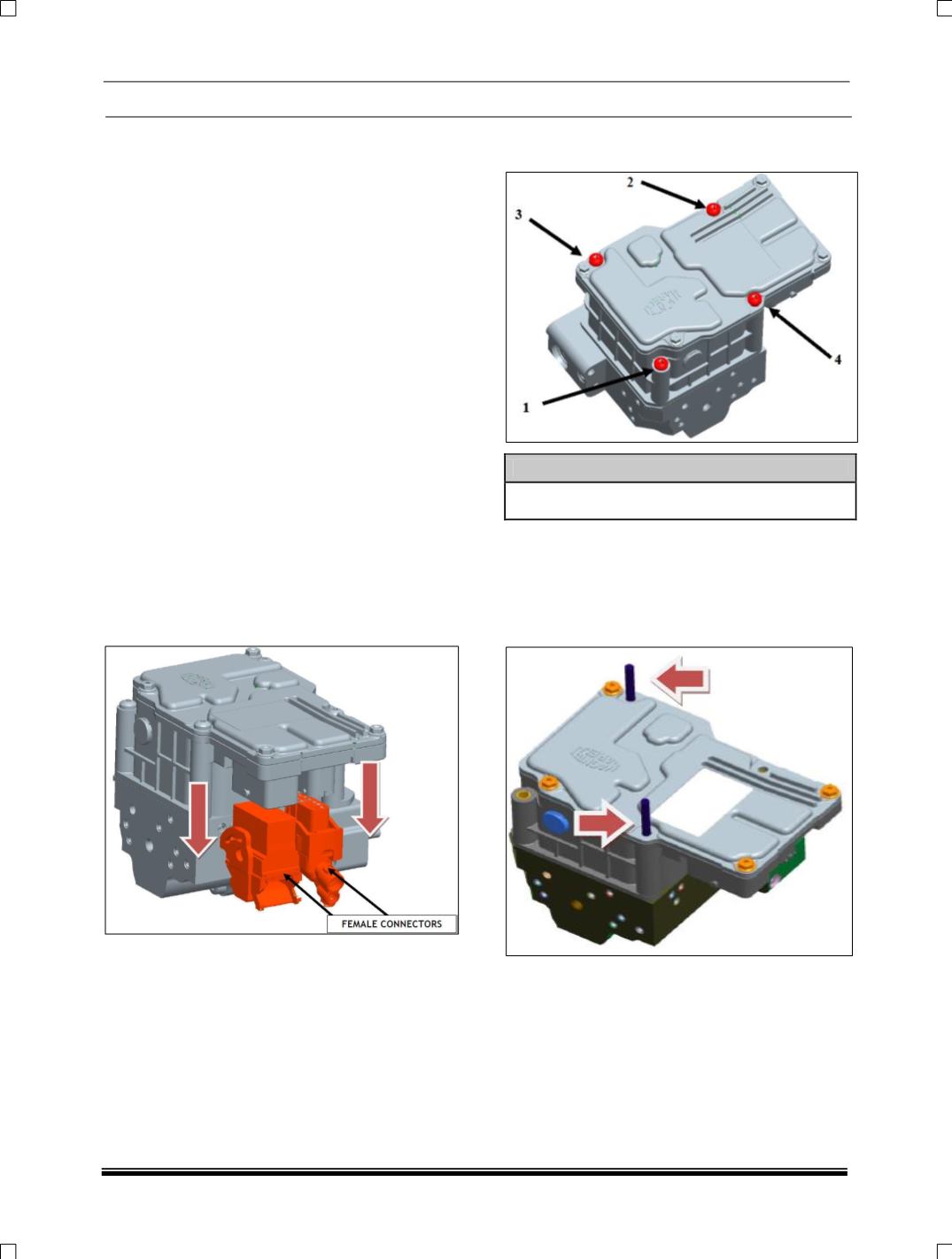

Removal:
1. Disengage the female connectors with the
cables from the ‘Transmission Control Unit’.
2. Unscrew the four ‘Transmission Control Unit’
fixing screws with sequence indicated below.
NOTE
Only these four screws are to be removed. Do
not touch other screws.
3. In order to guarantee right ‘Transmission
Control Unit’ translation during the
dismounting, screw two 100 mm. length M5
‘Special tool – guide rods’ in the holes
previously used by ‘Transmission Control Unit’
fixing screws and shown in the picture below.
