TRANSAXLE
140

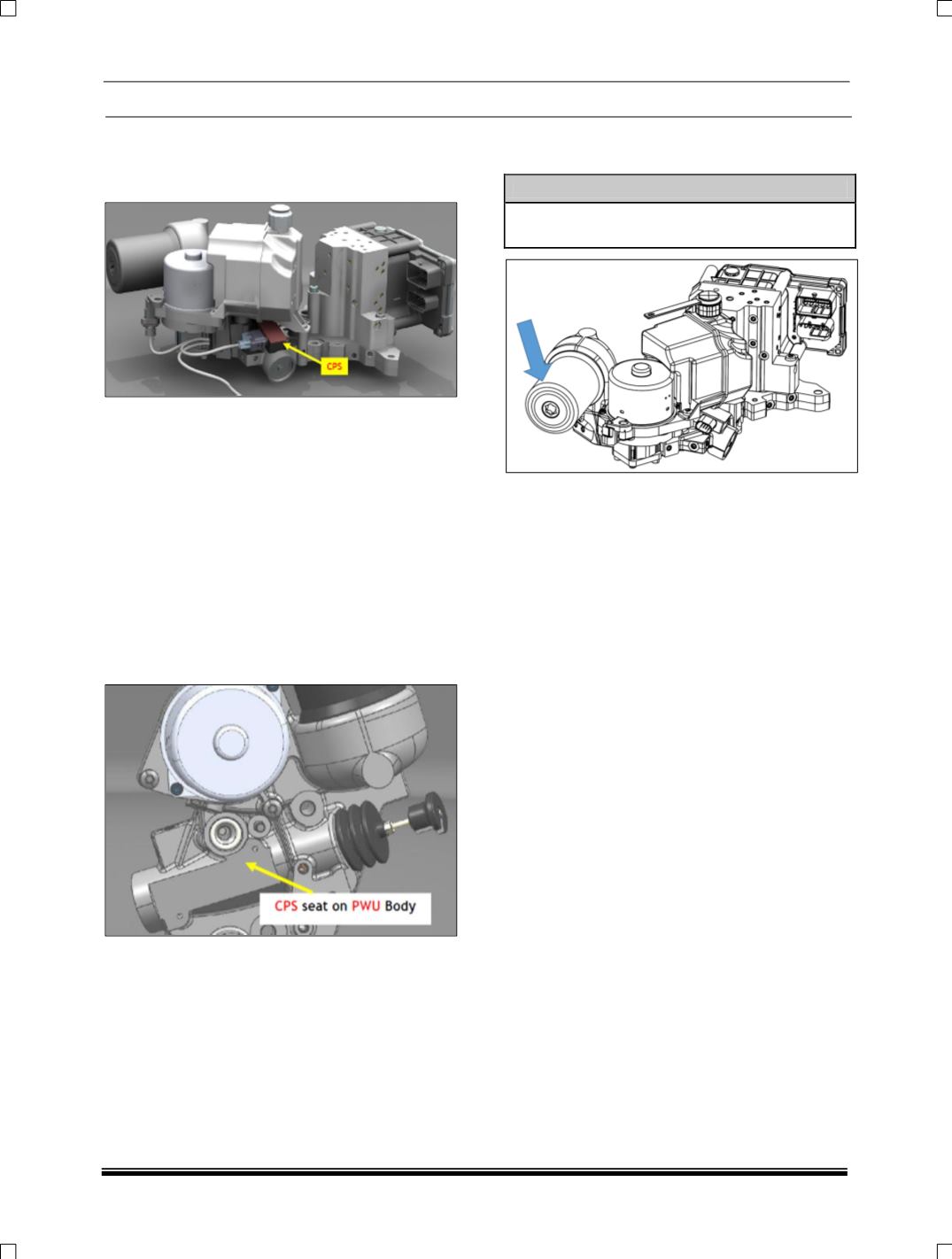

12.
CLUTCH
POSITION
SENSOR
REMOVAL AND RE-FITMENT ON BENCH:-
Removal:
1. Remove the ‘Oil Tank’ first (refer the
procedure 9. Oil Tank Removal and Re-
Fitment on Bench).
2. Disconnect the connector of the wiring
harness from the ‘Clutch Position Sensor’.
3. Unscrew and remove the two screws fixing
the ‘Clutch Position Sensor’ on the ‘Power
Unit Base Plate’ body.
Installation:
1. Position the new ‘Clutch Position Sensor’ on
its seat using the two new screws of fixing for
reference.
2. Screw the two new screws at the right torque
3.1 ± 0.5 Nm.
3. Connect the connector of the wiring harness
on the ‘Clutch Position Sensor’.
13. HYDRAULIC OIL ACCUMLATOR
REMOVAL AND RE-FITMENT ON BENCH:-
DANGER!!
Do not remove hydraulic oil accumulator, it is
pressurized unit it can pose a safety threat
.
