TRANSAXLE
127

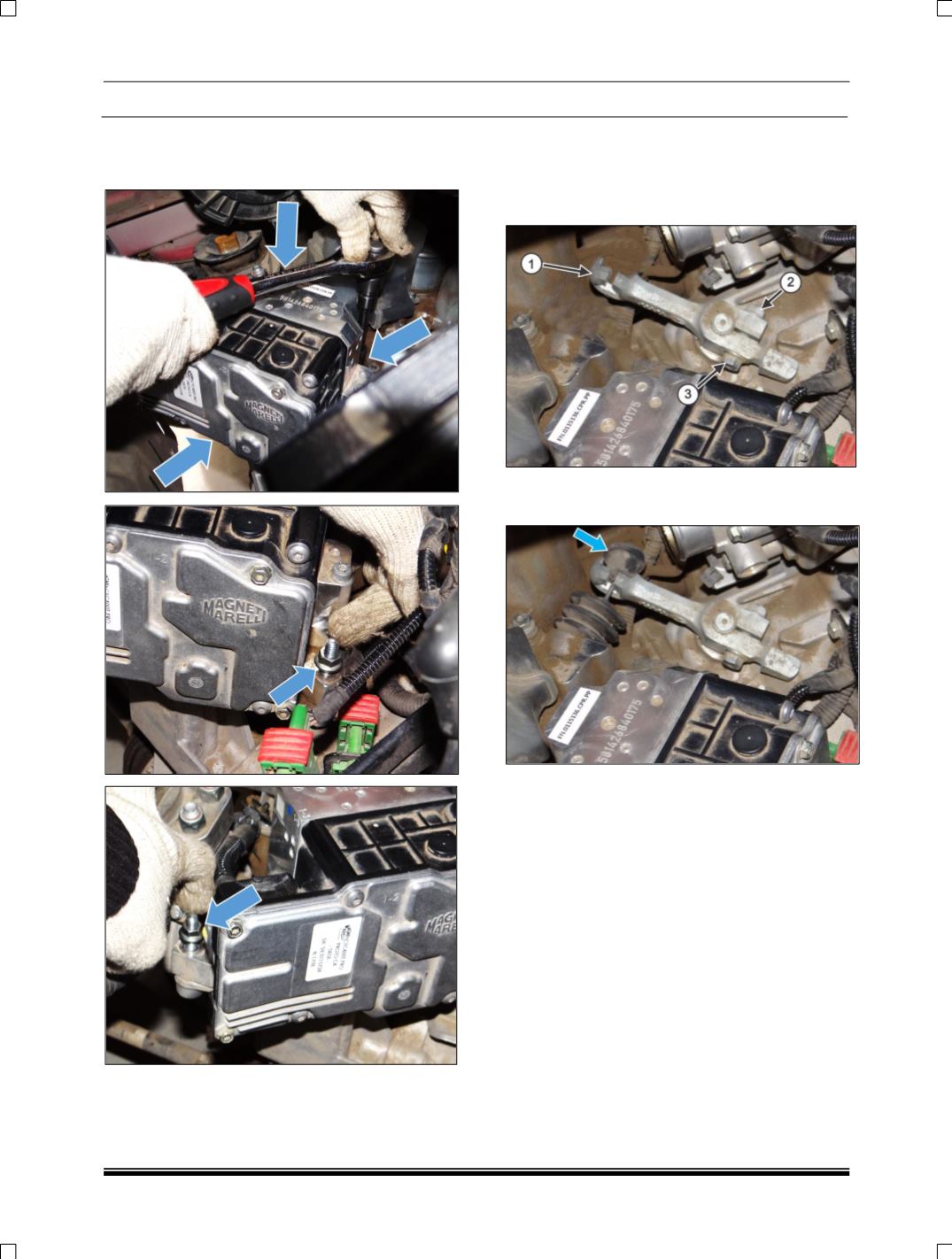

4. Tighten the all three M8x45 bolts and two M8
nuts by ratchet and extension socket (12 mm)
as per specified torque. (21~24.5 Nm).
5. Assemble the clutch release lever (1) on the
clutch release shaft splines and push it axially
till stopper is reached insert the bolt (2) into
clutch lever hole, fit nut (3) with it and tighten
the bolt as per specified torque. (23 Nm).
6. Assemble the clutch lever interface with clutch
release lever.
