TRANSAXLE

125

NOTE

Before disassembling the clutch release lever

ensure that gear shift lever should be in natural

position.

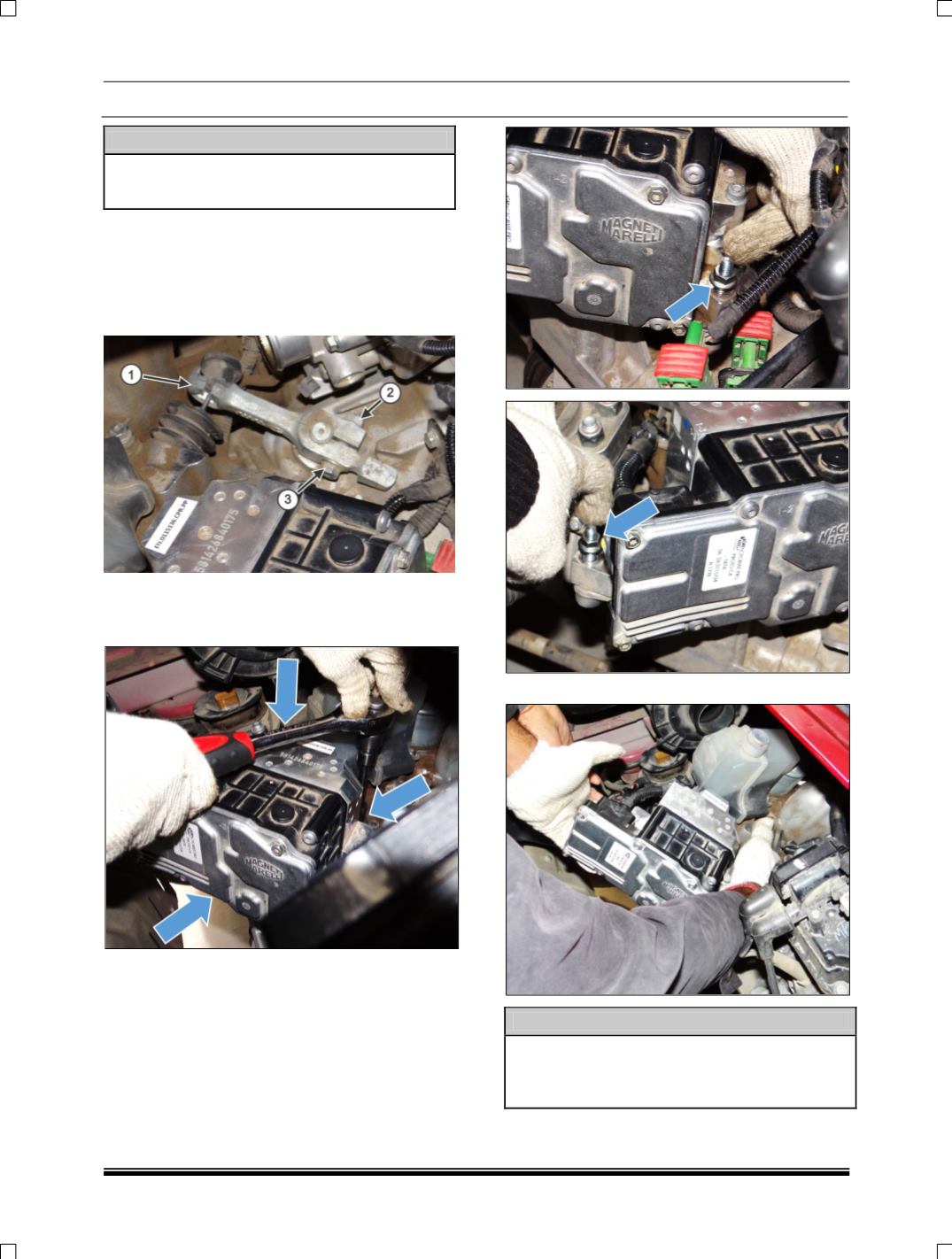

13. Disassemble the clutch release lever.

a. Remove the hexagonal nut M8 (3) and

hexagonal bolt M8x35 (2) to loosen clutch

release lever (1).

b. Now take out the clutch release lever (1).

14. Loosen the all three M8x45 bolts and two M8

nuts by ratchet and extension socket (12

mm).

15. Take out the ‘AMT KIT’ carefully.

NOTE

Same rubber strap can be used to seal the Oil

Tank’ on replaced/failed AMT kit for sending

back to plant for analysis which was got with

AMT Kit.
