TRANSAXLE (NANO AMT)
76

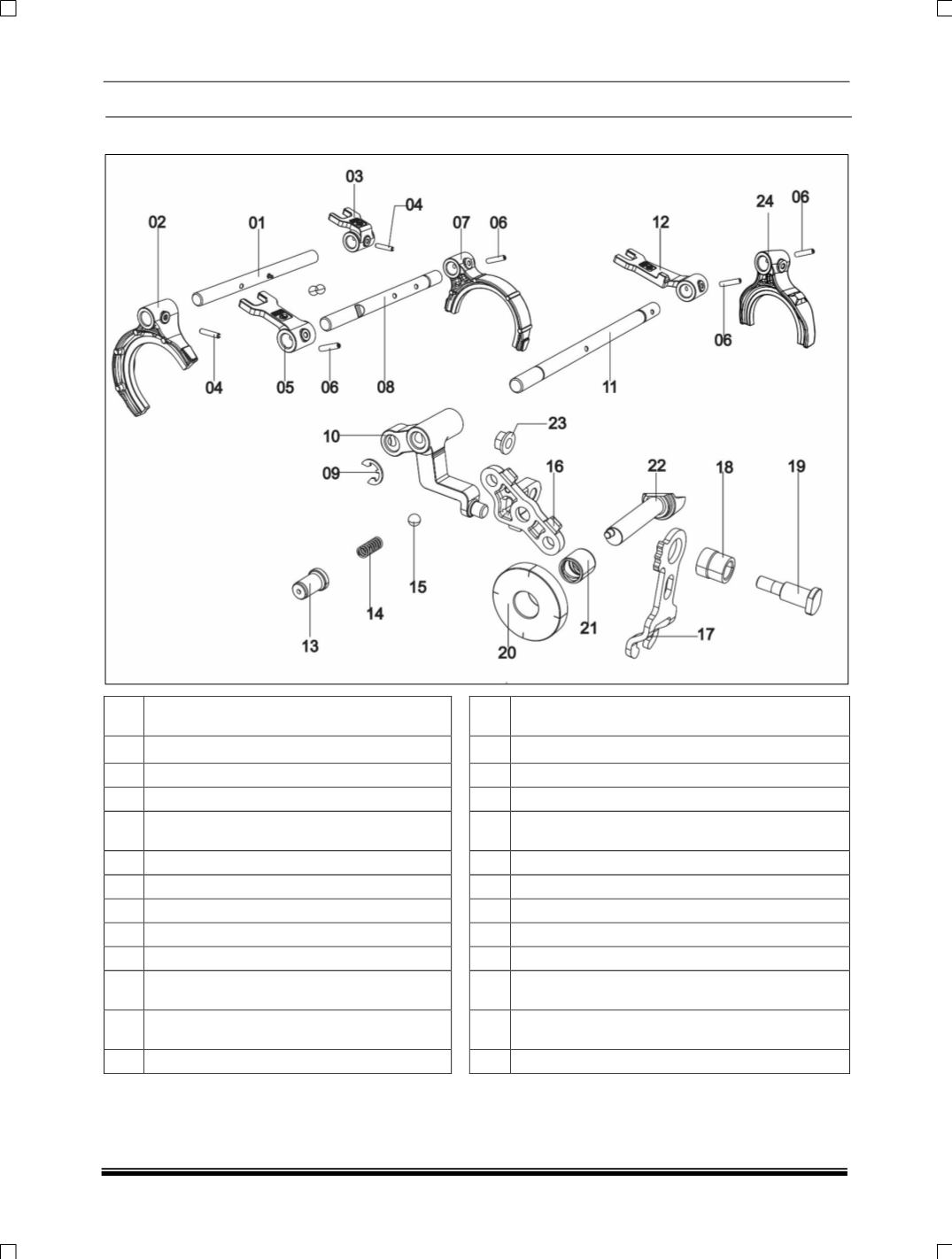

C. SHIFTER SHAFT AND SHIFTER SLEEVE:
SL
NO
DESCRIPTIONS
SL
NO
DESCRIPTIONS
01 SHIFTER SHAFT(1
ST
2
ND
& REV. GEAR)
13 BARREL (REVERSE DETENT)
02 FORK (1ST;2ND SPEED)
14 SPRING (REVERSE DETENT)
03 SHIFTER DOG (1ST/2ND GEAR)
15 BALL 8 DIA
04 ASSEMBLY.DOWEL SLEEVE
16 BRACKET (REVERSE IDLER SHAFT
LEVER)
05 SHIFTER DOG 3
RD
/ 4
TH
SPEED GEAR
17 SHIFT LEVER REVERSE IDLER GEAR
06 SPIRAL PIN
18 BUSH REVERSE LEVER
07 SHIFTER FORK 3
RD
/ 4
TH
SPEED GEAR
19 PIVOT PIN REVERSE IDLER LEVER
08 SHIFTER SHAFT(3RD/4TH SPEED)
20 REVERSE IDLER GEAR
09 CIRCLIP
21 BIMETALIC BUSH
10 SHIFTER FINGER (REVERSE IDLER
GEAR)
22 REVERSE IDLER SHAFT
11 SHIFTER SHAFT (5TH & REVERSE
SPEED)
23 FLANGED CLINCH NUT
12 SHIFTER DOG
24 FORK 5TH AND REVERSE SPEED
