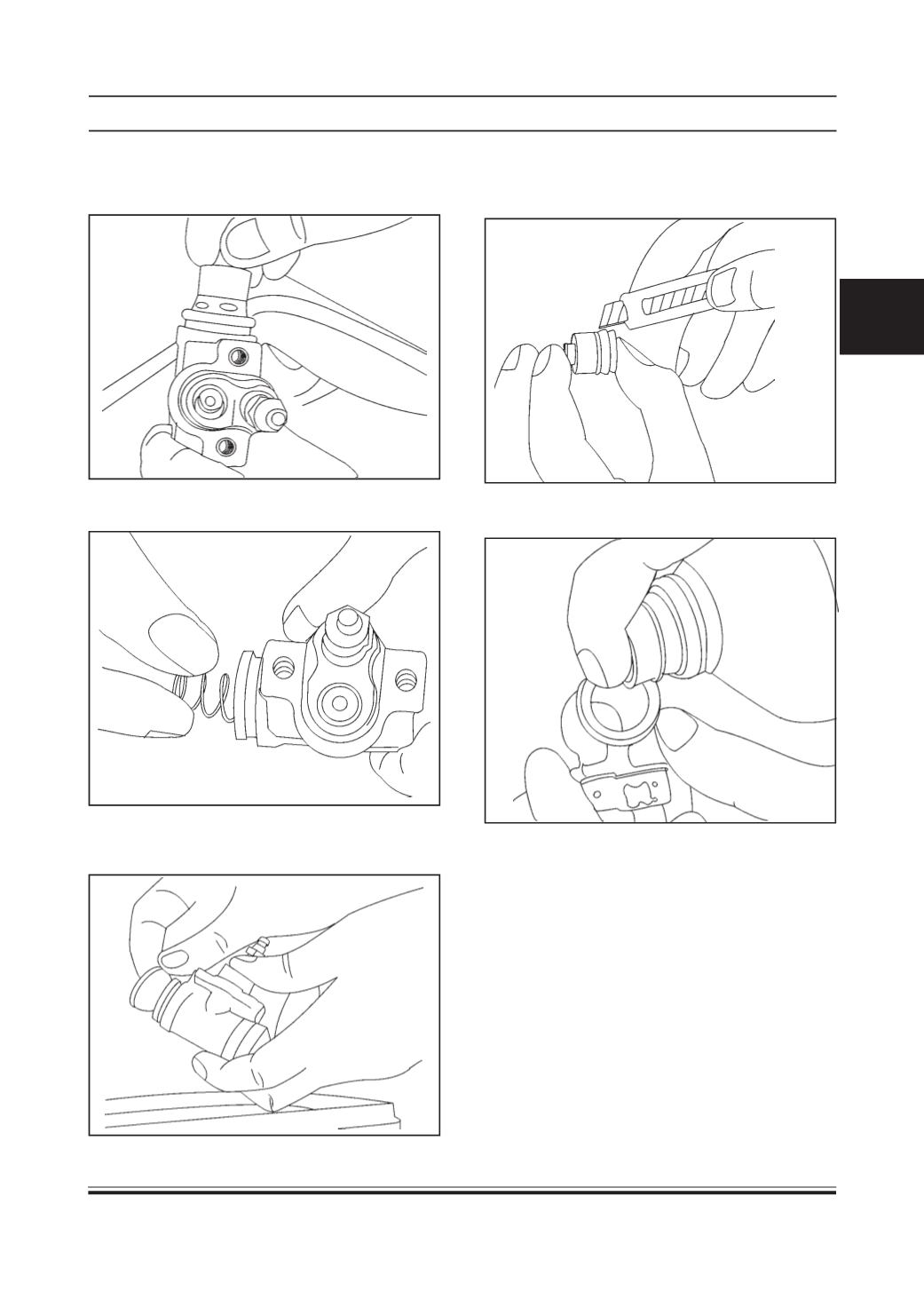

3. Pull out wheel cylinder piston assembly (7), by

taking care not to cause scratch on wheel cylinder

bore.

4. Remove wheel cylinder spring (2 or 11)

5. Remove other side wheel cylinder boot and piston

in the same manner.

6. Cut wheel cylinder seal (4 or 8) with sharp blade,

never use connector to remove seal, it may cause

scratch on seal seating area.

7. Clean all dismantled parts with fresh brake fluid.
