NANO

BRAKE SYSTEM

543

BRAKES

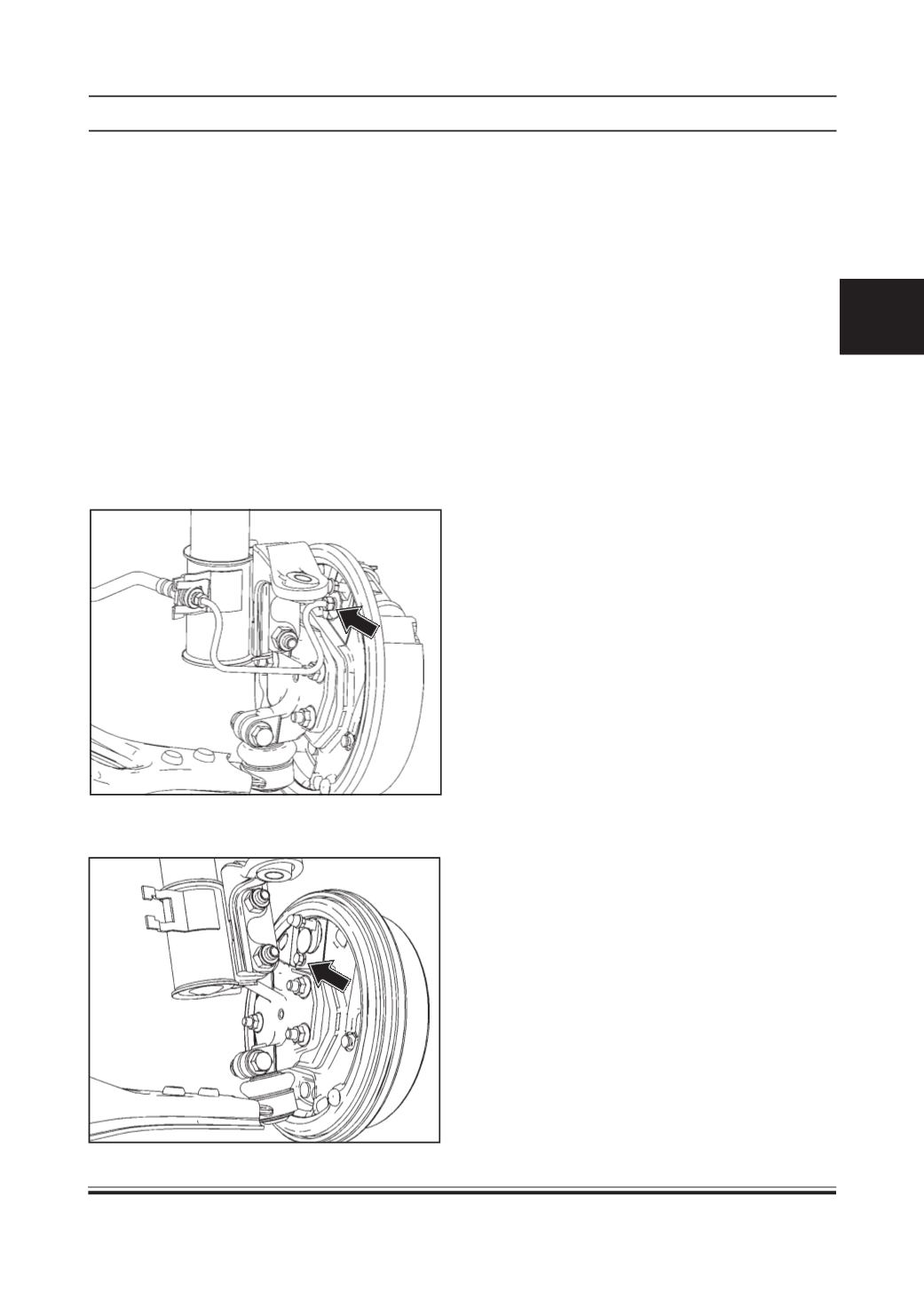

6. Loosen the mounting bolts of wheel cylinder

assembly and take out wheel cylinder assembly.

WHEEL CYLINDER ASSEMBLY

Removal from vehicle

1. Removewheel (s) (Refer wheel removal procedure/

Wheels and Tires group)

2. Remove brake drum (Refer Front/Rear BrakeDrum

assembly removal procedure)

2. Remove brake shoe assembly. (Refer Front/Rear

Brake Shoe assembly removal procedure)

3. Attach a transparent (vinyl) bleed tube to the bleed

screw having first removing its rubber dust cap.

4. Unscrew the bleed screw 1/2 to 3/4 turn and pump

out the brake fluid in a suitable container by

operating the brake pedal. Remove the bleed tube.

5. Disconnect brake pipe from wheel cylinder

assembly.
