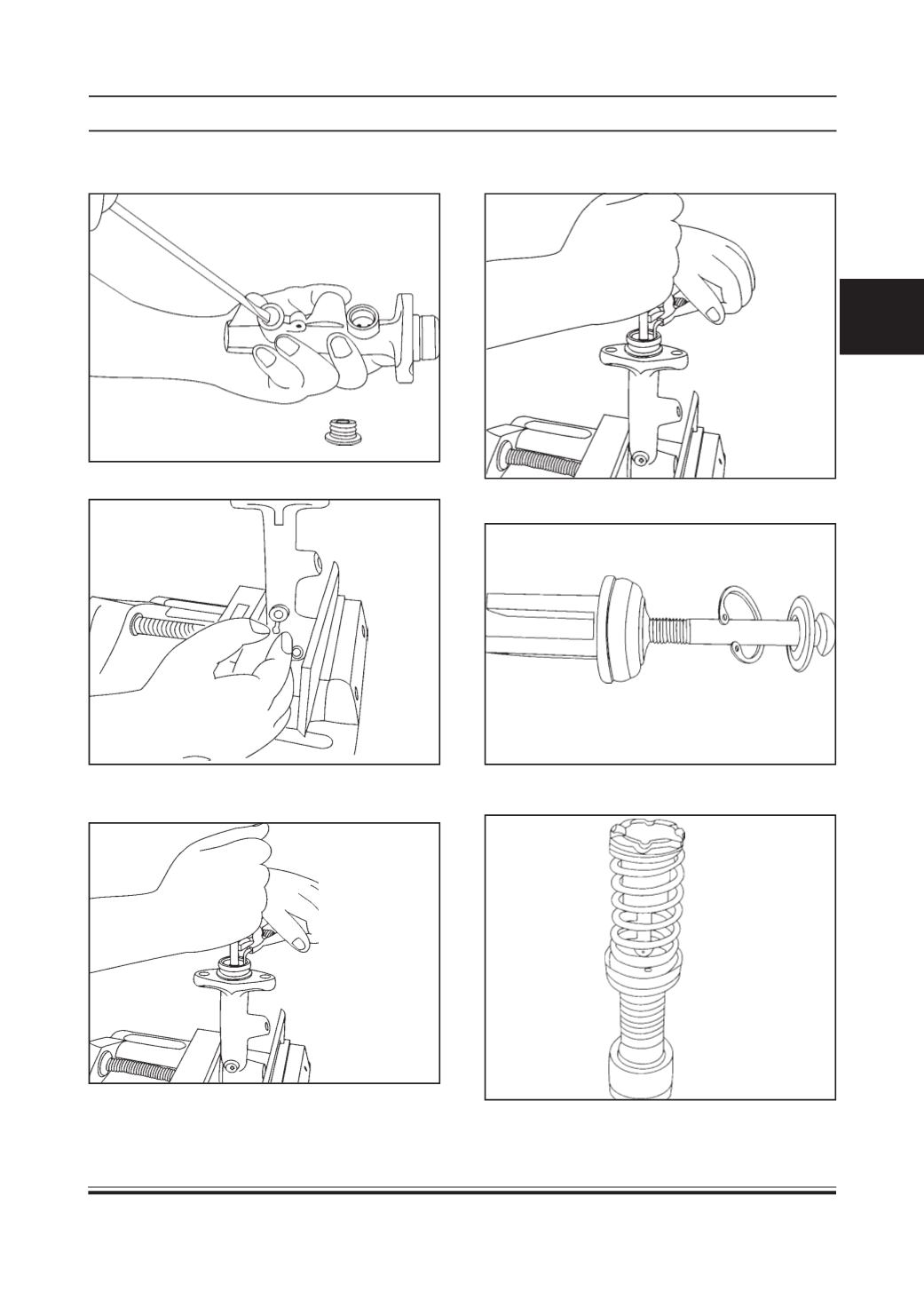

3. Remove the rubber grommets (08) from the TMC

inlet ports as shown.

4. Remove the TMC boot (09)

5. By depressing the primary piston with attached

push rod, remove Secondary piston stopper (07).

6. By depressing the primary piston with attached

push rod, remove circlip (11) with circlip pliers.

7. Remove push rod assembly.

8. Remove primary piston assembly (05)
