NANO

536

BRAKE SYSTEM

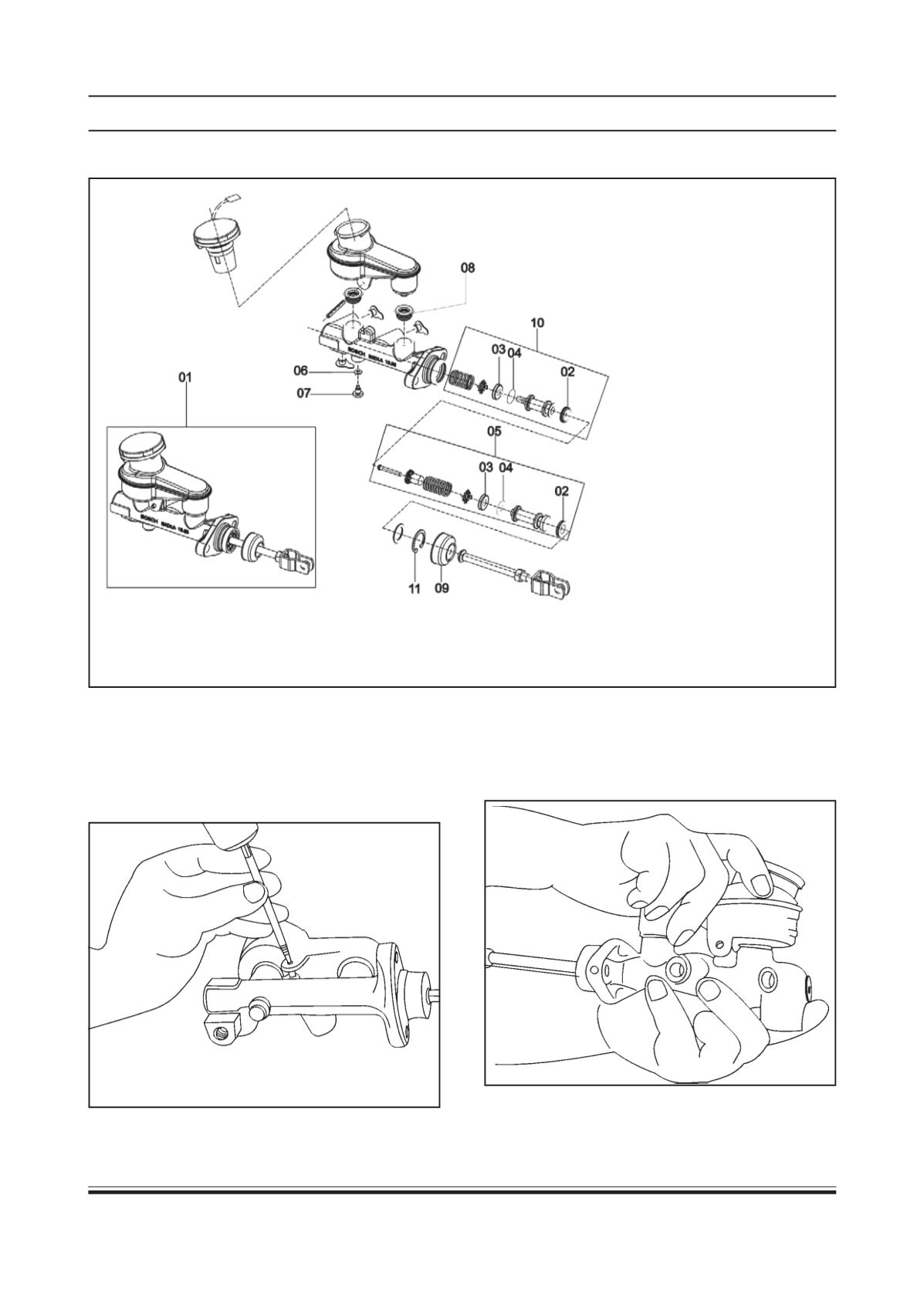

DISASSEMBLY OF TANDEM MASTER CYLINDER :

01 TMC assembly

02 Secondary seal

03 Primary seal

04 Cup spacer

05 Primary piston assy

06 Gasket

07 Secondary piston stopper

08 Grommet

09 Boot

10 Secondary piston assy.

11 Circlip

NOTE:

Refer above exploded view while disassembly

procedure, for better understanding of TMC

components.

1. Remove spring pin by tapping with centre punch.

2. Hold the brake fluid reservoir by hand firmly; lift

the same out of the rubber grommets (08) fitted

on to the TMC inlet ports by rocking it on both

sides.
