1001 / 1904
TRANSAXLE-AMT
51

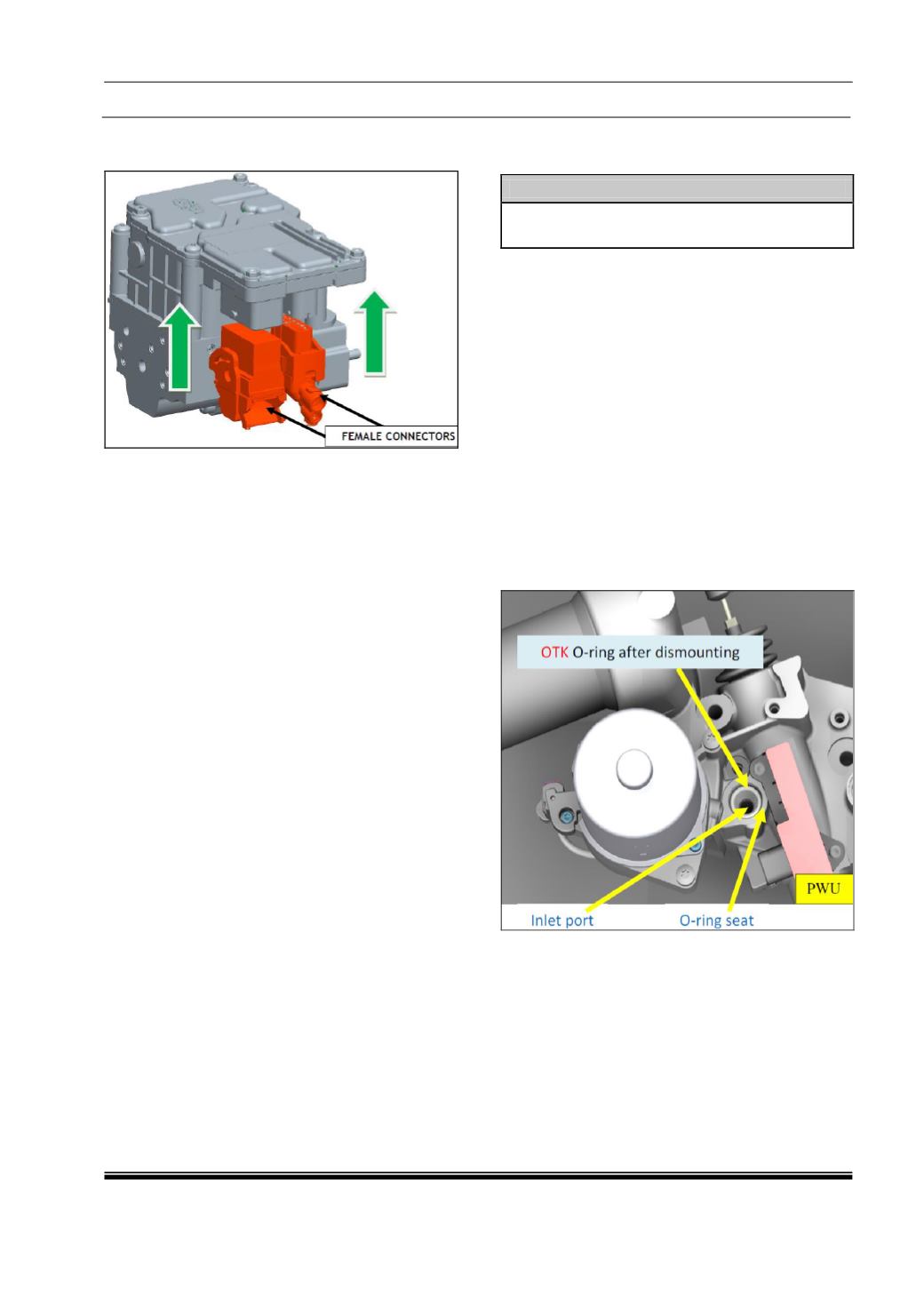

6. Engage the two female connectors with the
cable on the ‘Transmission Control Unit’.
9.0 OIL TANK REMOVAL AND REFITMENT
ON BENCH:-
CAUTION
Ensure there is ‘NO PRESSURE’ in the
hydraulic circuit.
Removal:
1. Unscrew the ‘Oil Tank Cap’ and empty the
hydraulic oil from the ‘Oil Tank’ in a canister.
2. Unscrew and remove the three screws M6x15
fixing ‘Oil Tank’ on ‘Power Unit Base Plate’
body.
3. Unscrew and remove the other screws M6x20
located under the ‘Power Unit Base Plate’
body. With the Hydraulic System upright to
avoid oil draining from e ‘Power Unit Base
Plate’, remove the ‘Oil Tank’ pulling by hand in
vertical direction.
4. Remove the ‘Oil Tank’ O-ring that normally
remains inside the ‘Power Unit Base Plate’
seat, and assemble it in the original position on
the ‘Oil Tank’, if the tank is reused.
