1004 / 1904
TRANSAXLE-AMT
54
11.0

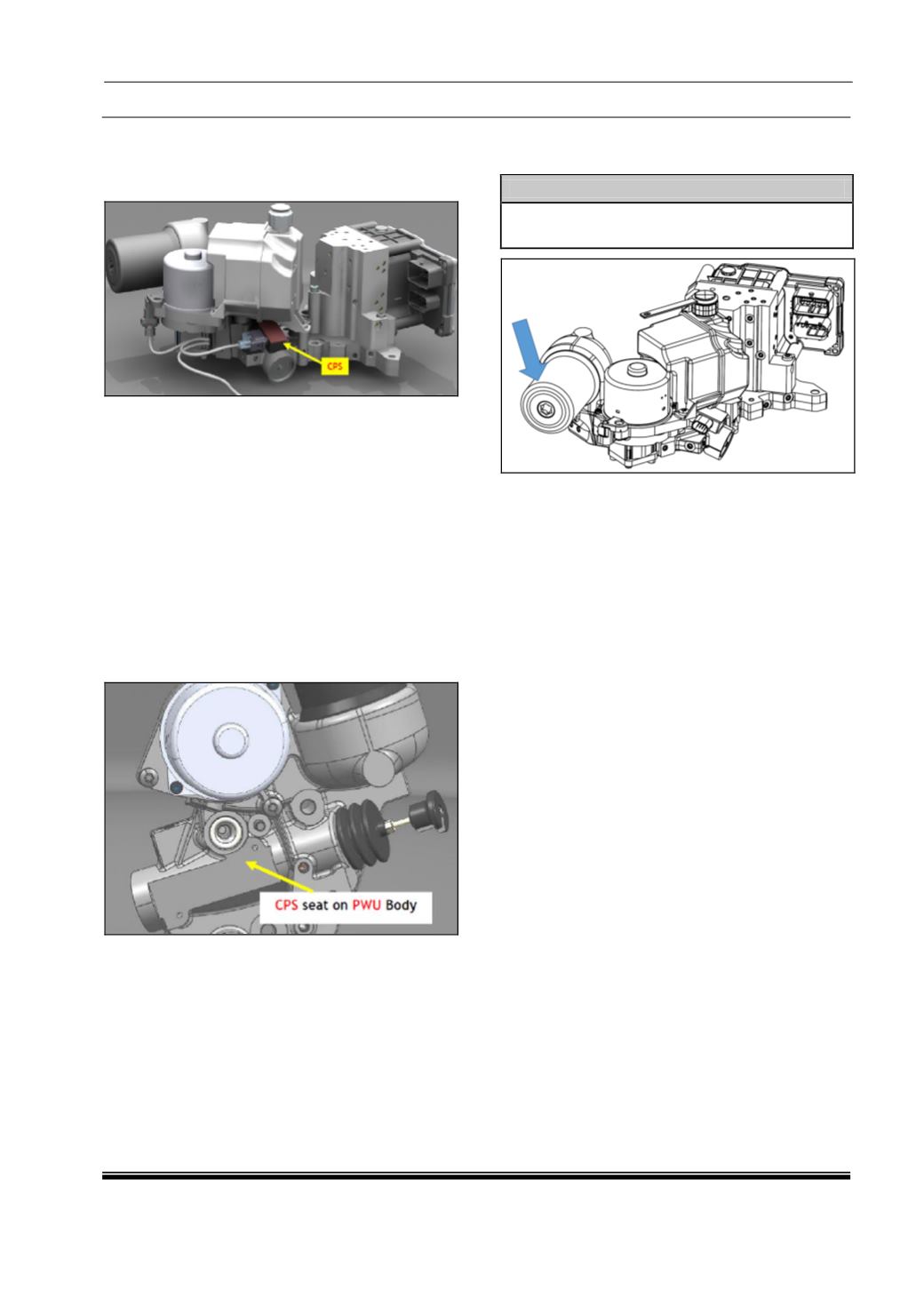

CLUTCH
POSITION
SENSOR
REMOVAL AND RE-FITMENT ON BENCH:-
Removal:
1. Remove the ‘Oil Tank’ first (refer the procedure
9. Oil Tank Removal and Re-Fitment on
Bench).
2. Disconnect the connector of the wiring harness
from the ‘Clutch Position Sensor’.
3. Unscrew and remove the two screws fixing the
‘Clutch Position Sensor’ on the ‘Power Unit
Base Plate’ body.
Installation:
1. Position the spare part ‘Clutch Position Sensor’
on its seat using the two spare parts screws of
fixing for reference.
2. Screw the two spare parts screws at the right
torque 3.1 ± 0.5 Nm.
3. Connect the connector of the wiring harness
on the ‘Clutch Position Sensor’.
12.0 HYDRAULIC OIL ACCUMLATOR
REMOVAL AND RE-FITMENT ON BENCH:-
DANGER!!
Do not remove hydraulic oil accumulator, it is
pressurized unit it can pose a safety threat
.
