TRANSAXLE-AMT
53
10.0 DC MOTOR REMOVAL AND RE-
FITMENT ON BENCH:-
Removal:
1. Remove the ‘Oil Tank’ first (refer the procedure
9. Oil Tank Removal and Re-Fitment on
Bench).
2. Disconnect the connector of the wiring harness
from the ‘Dc Motor’.
3. Unscrew the three fixing screws M5x15.
4. Remove the electric ‘Dc Motor’, the ‘Sponge’
and the ‘Oldham Joint’.
Installation:

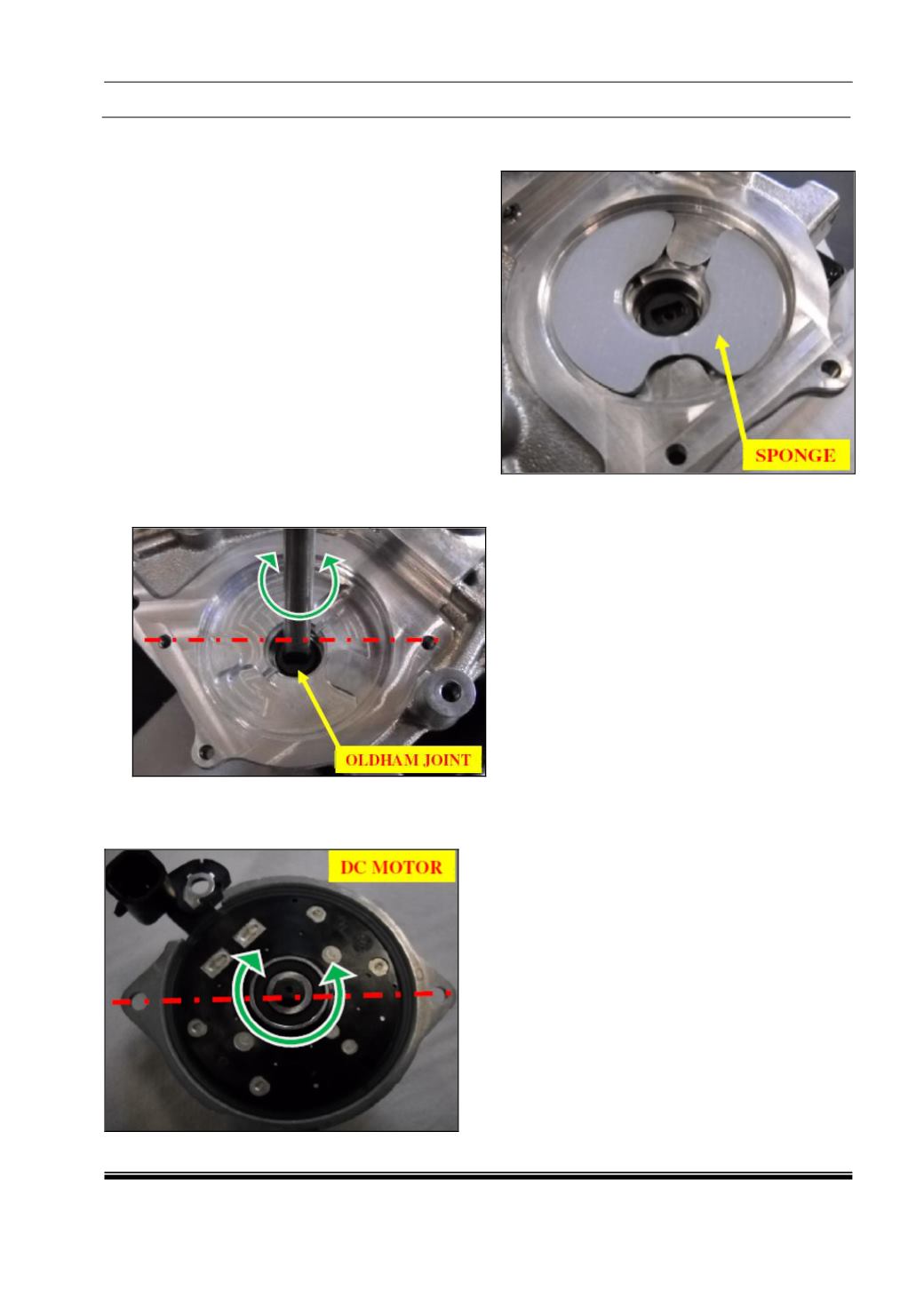

1. Insert the spare part ‘Oldham Joint’ in the
pump shaft. Using a screw driver, turn the joint
as shown below, to align its slot with the axe
passing through the two fixing threaded holes
at 180° on the ‘Power Unit Base Plate’
body.
2. Turn the spare part ‘Dc Motor’ shaft by hand
as shown below, to align it with the axe
Passing through the two fixing hole at 180°.
3. Insert the spare part ‘Sponge’ in the ‘Power
Unit Base Plate’ seat.
4. Align the ‘Dc Motor’ on the ‘Power Unit Base
Plate’ and insert its axe in the ‘Oldham Joint’
slot, continue the translation of the ball bearing
in its ‘Power Unit Base Plate’ seat with care.
5. Preassemble the two spare part screws
M5x15 in the motor flange at 180° before and
after the third spare part screw M5x15 (the
ground screw) without tighten.
6. Then screw with alternating sequence the two
screws at 180° until to reach the right torque (6
± 1 [Nm]) and then tighten the ground screw
with the same torque.
7. Connect the connector of the wiring harness
on the ‘Dc Motor’.
8. Install ‘Oil Tank’ (refer the procedure 9. Oil
Tank Removal and Re-Fitment on Bench).
