NANO

TRANSAXLE-AMT

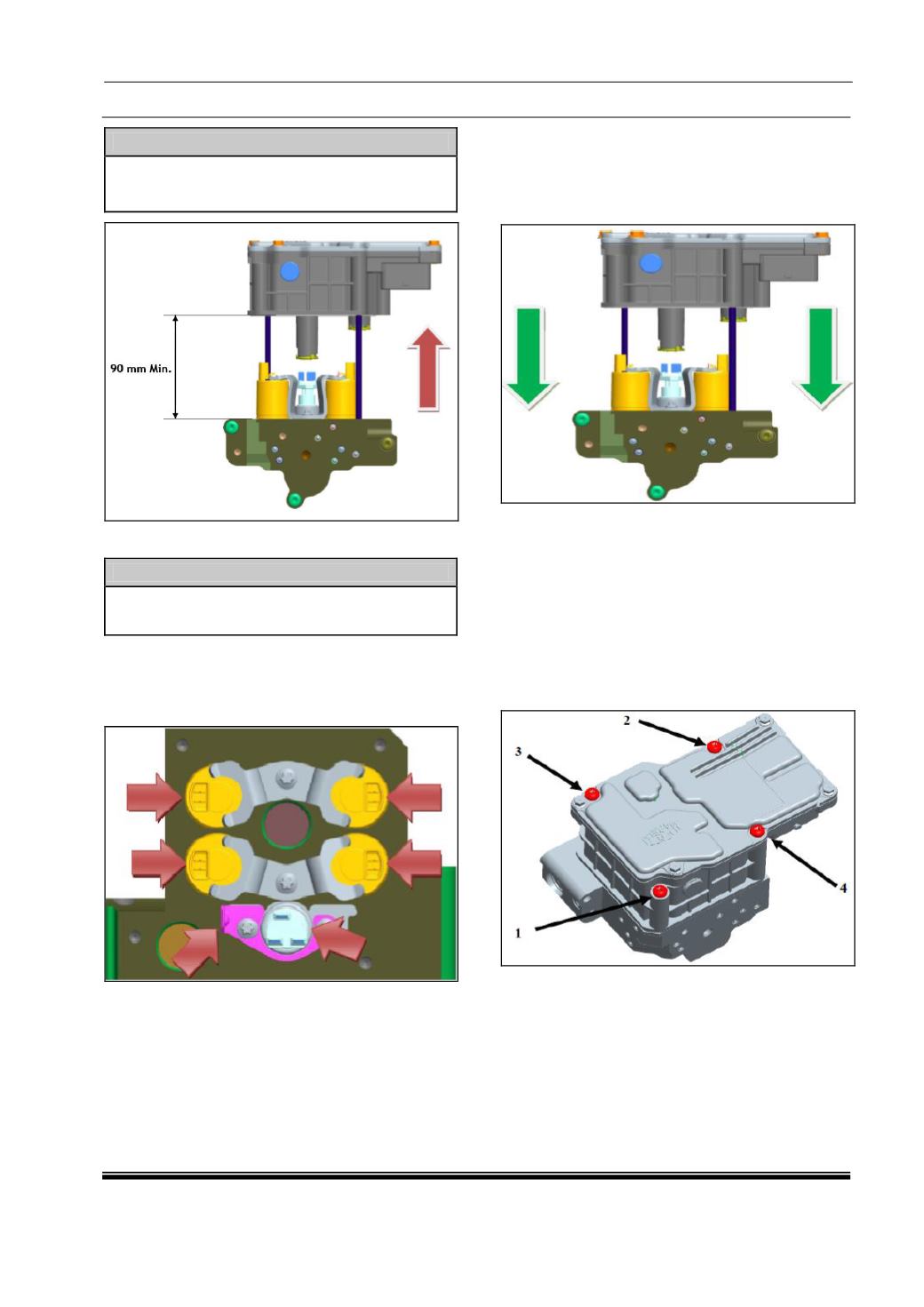

NOTE

If the ‘Transmission Control Unit’ will be

dismounted from ‘Electro Valve Block’ it is not

allow to mount it again.

Installation:

NOTE

After ‘Transmission Control Unit’ dismounting

the relevant screws must be discarded too.

1. Verify that the electro valves, pressure sensor

and ground tab connections does not show

any visible anomalies in displacement or

damaging.

2. Verify the right cleanliness of the electro valve

block on the ‘Transmission Control Unit’

mating side. No contamination from foreign

materials is acceptable (oil, dust, metal burrs,

etc.). If necessary, cleaning process must be

previously approved by ‘MAGNETI MARELLI’.

3. Position the ‘Transmission Control Unit’ over

the electro valve block, still using for reference

the two threaded rods and moving it parallel

towards the mating surface. Insertion of all the

electro valves, pressure sensor and ground

tabs must be obtained by appropriate load on

the ‘Transmission Control Unit’ heat sink and

following handling precautions.

4. Once the ‘Transmission Control Unit’ is

positioned mated to the electro valve block,

remove the two threaded rods.

5. Insert the new

four ‘Transmission Control Unit’

fixing screws into the corresponding holes and

tighten each screw by applying a torque of 6.0

± 1.2 Nm, following the order shown in the

image below. Please consider that screw on

pos. 1 is M5 x 55and screws on pos. 2, 3 and

4 are M5 x 68.
