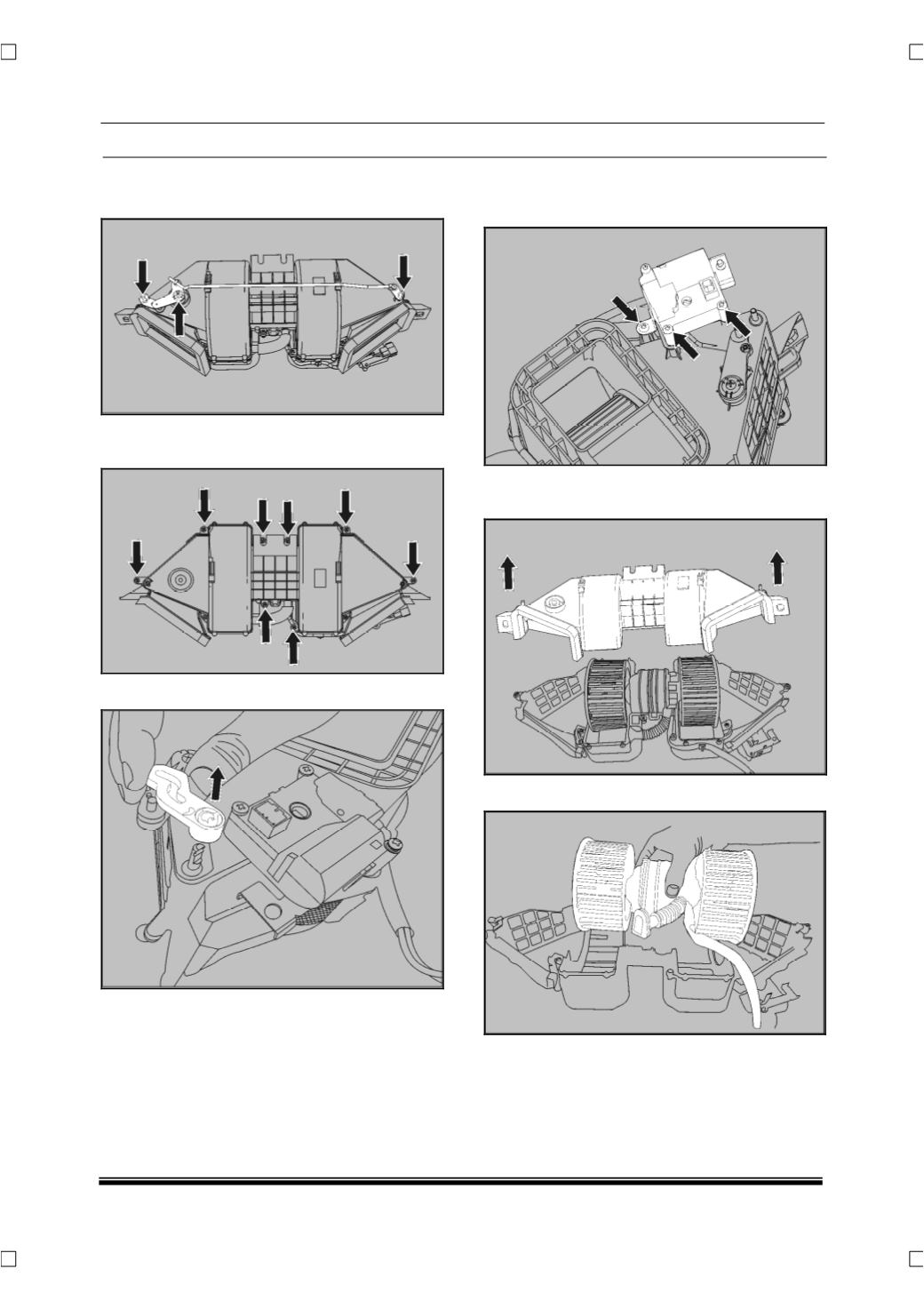

DISMANTLING
1. Disconnect the link of mode actuator.
2. Loosen and remove ten mounting screws of up-
per casing.
3. Disconnect the link connector of mode actuator.
4. Loosen and remove mounting screws of actuator
and take out the actuator along wit the mounting
bracket.
5. Turn the assy. upside down and separate the up-
per casing from lower casing.
6. Take out the blower assembly.
ASSEMBLY
For assembly follow the reverse procedure of re-
moval.
