1566 / 1575
HVAC
69

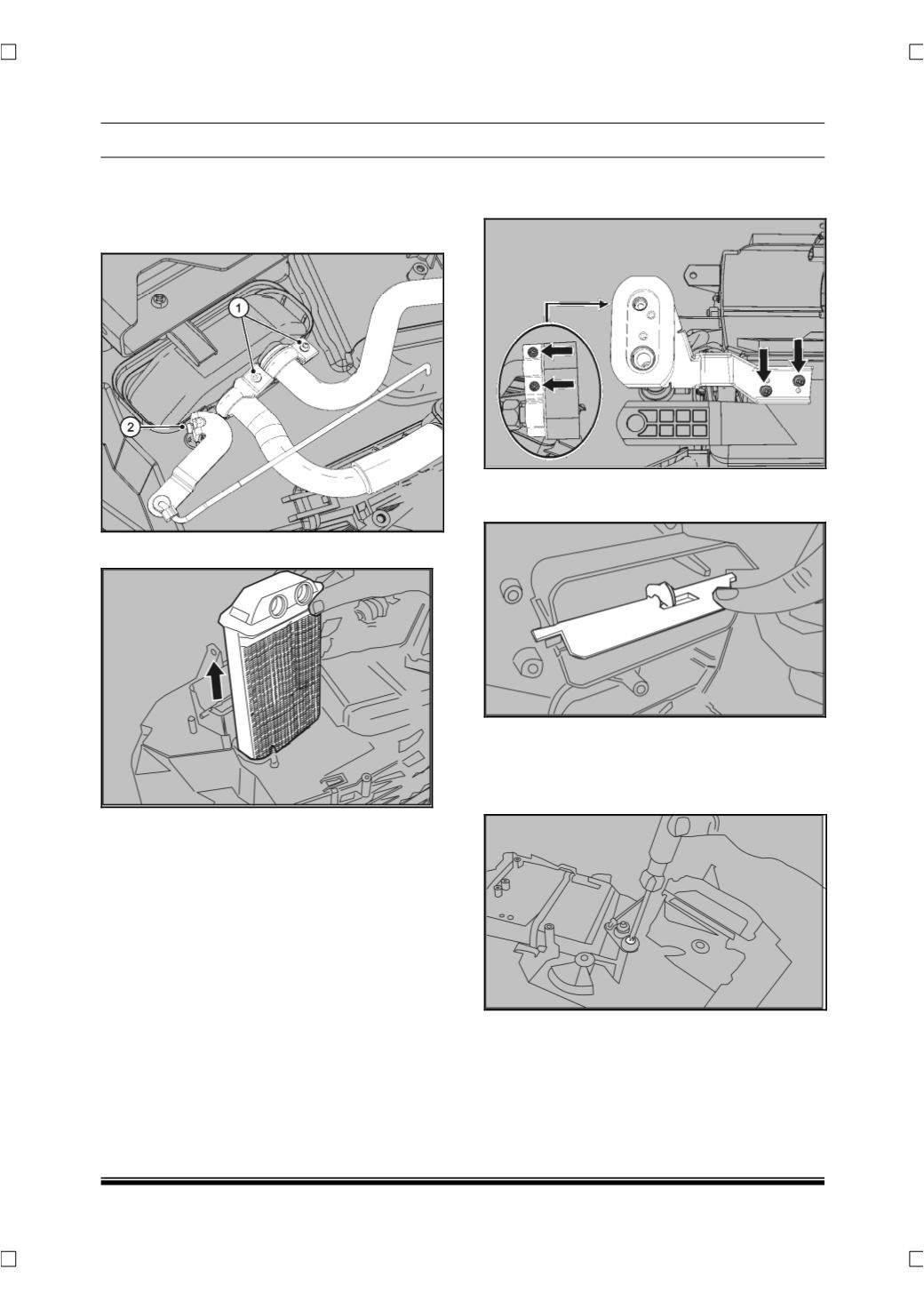

17. Loosen and remove screws (1) with clamp and
take out the heater pipes from heater assembly
and remove the screw (2) and take out the actu-
ator link
18. Take out the heater assembly.
19. Loosen and remove 4 screws and take out the
evaporator flange mounting bracket
20. Disconnect the link between leg duct doors and
remove the door.
21. Flip the HVAC assembly upside down to access
the left hand side leg duct door.
22. Loosen and remove screw of the linkage holding
leg duct door and take out the same
.
