HVAC
62

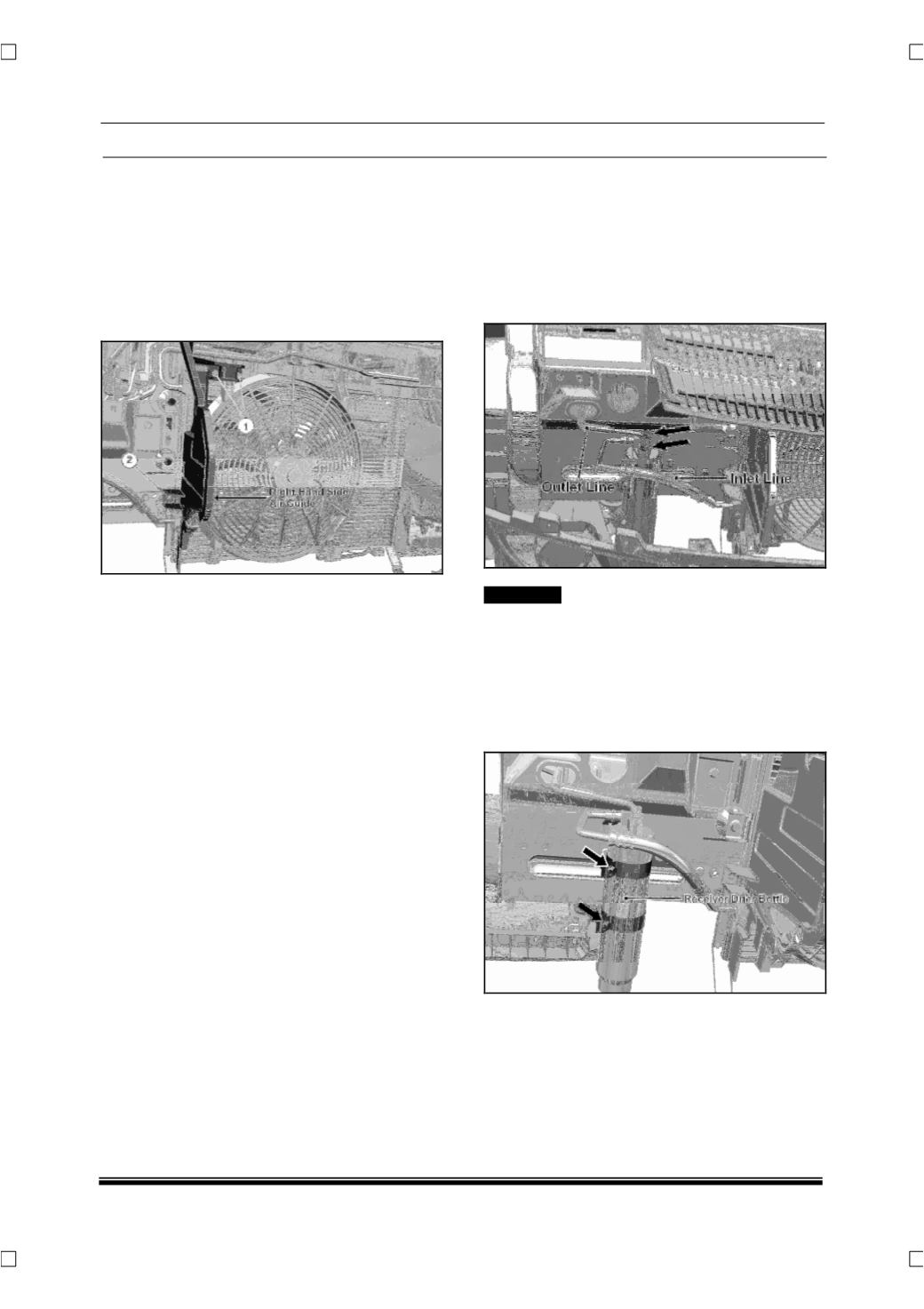

10.3.12 CONDENSER SEALING DUCT
REMOVAL
1. Open the bonnet.
2.
Remove front bumper
(For procedure refer front
bumper removal procedure in body section.)
3. Loosen and remove mounting screws and then
take out the air guide assembly.
4. Repeat same procedure for other side air guide
FITMENT
For fitment follow the reverse procedure of removal.
10.3.13. RECEIVER DRIER BOTTLE
REMOVAL
1. Remove front bumper
(For procedure refer front
bumper removal procedure in body section)
2. Loosen and remove two mounting bolts and
separate refrigerant lines from drier.
! CAUTION
Never leave the RD bottle lines open immediately
cover them with caps otherwise the desiccant which
in the RD bottle may absorb the moisture from sur-
rounding air and get contaminated.
3. Loosen and remove two mounting bolts of re-
ceiver drier holding bracket and take out the
receiver drier bottle.
FITMENT
For fitment follow the reverse procedure of removal.
