HVAC
70

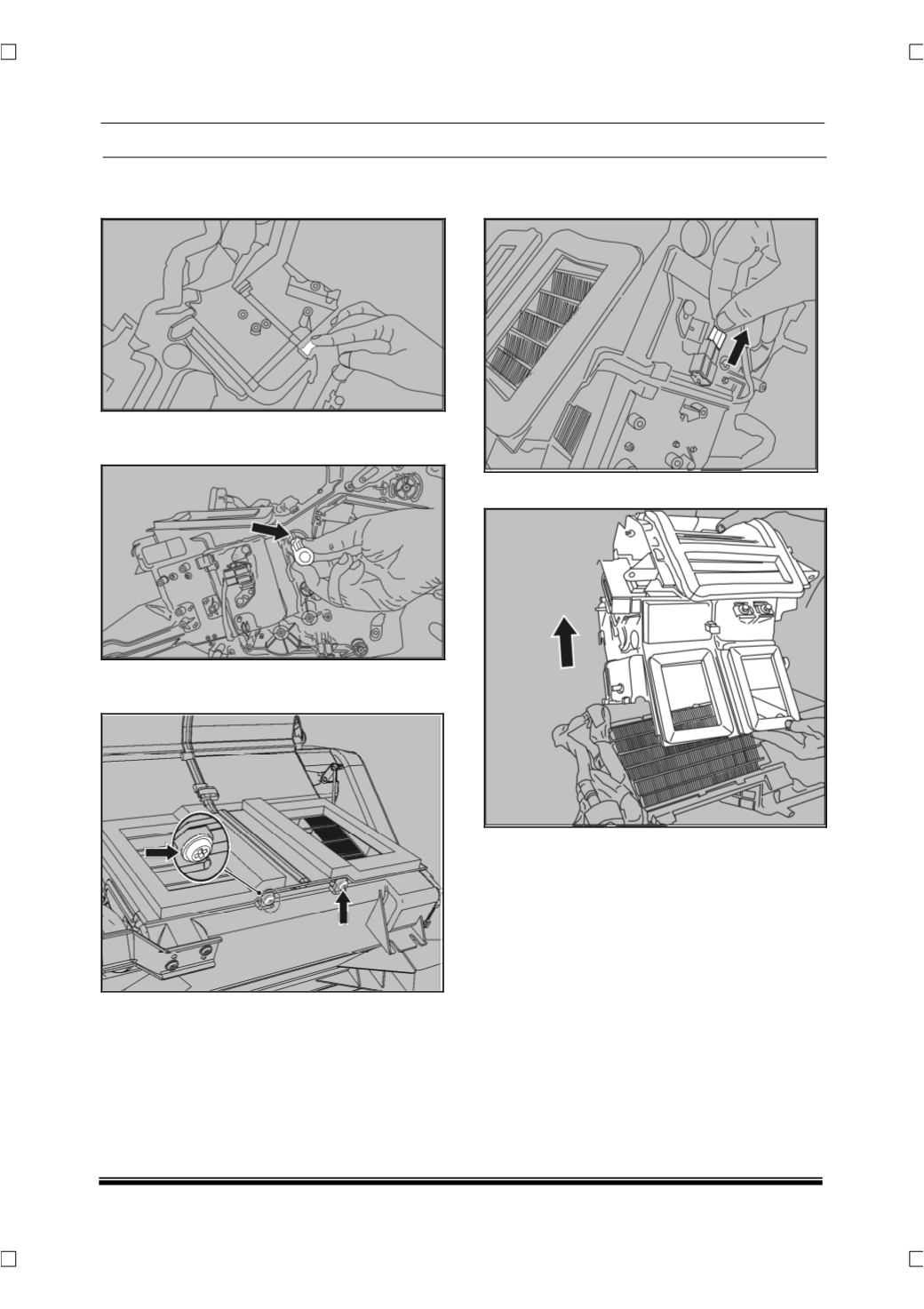

23. Remove the mounting clips (11 nos.) which are
holding the HVAC housing.
24. Remove centre mounting screw (1 nos.) which
holds the casing.
25. Remove 2 mounting screws which are located at
blower outlet side.
26. Remove thermister connector mounted on outer
casing.
27. Separate the upper casing from lower casing.
