HVAC
61

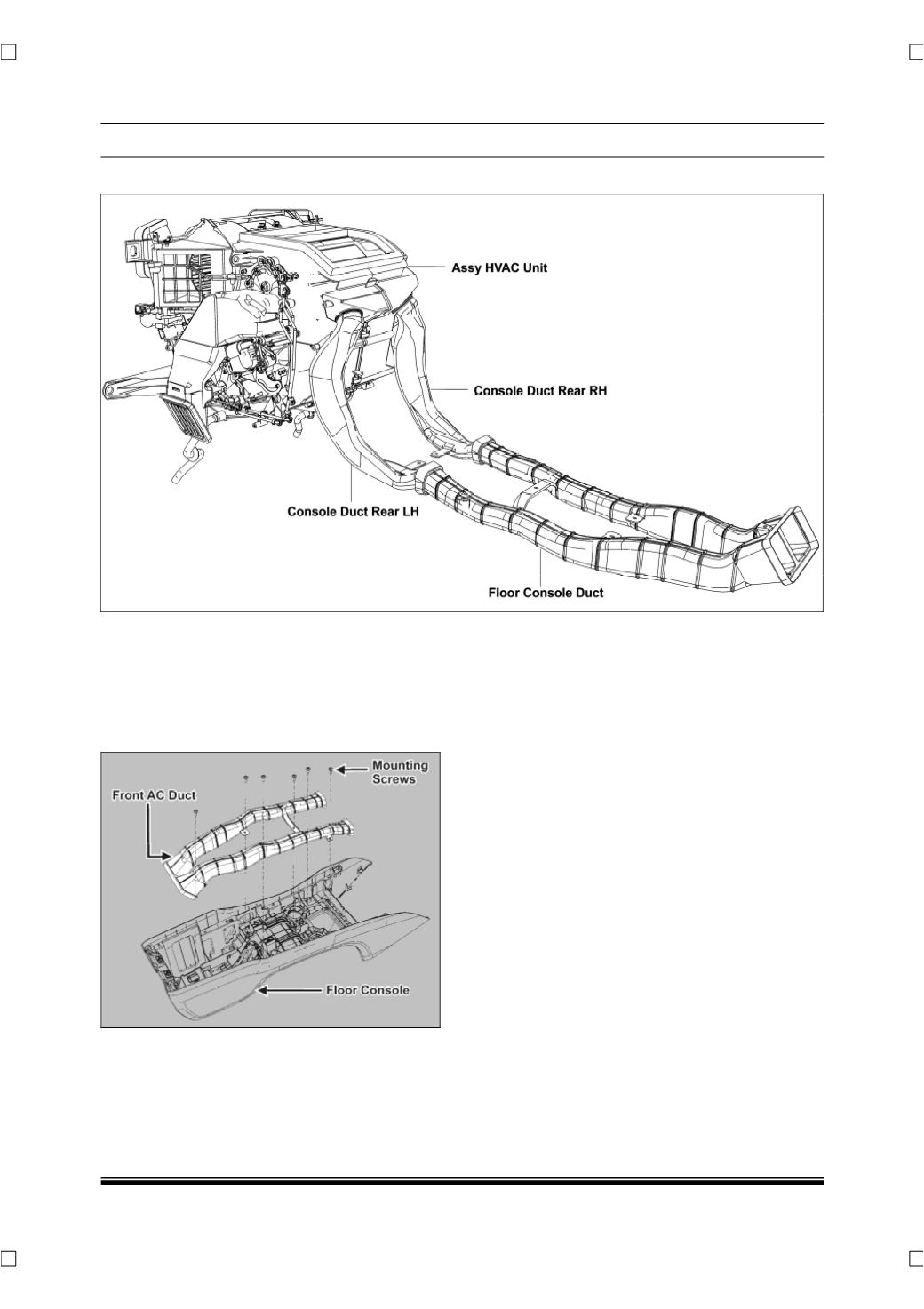

10.3.11 FRONT AC DUCTING
REMOVAL
1. Remove floor console assembly (
For Procedure
refer floor console removal procedure
in
body
section.)
2. Loosen and remove six mounting screws and
separate the AC duct from floor console.
FITTMENT
For fitment follow reverse procedure of removal
