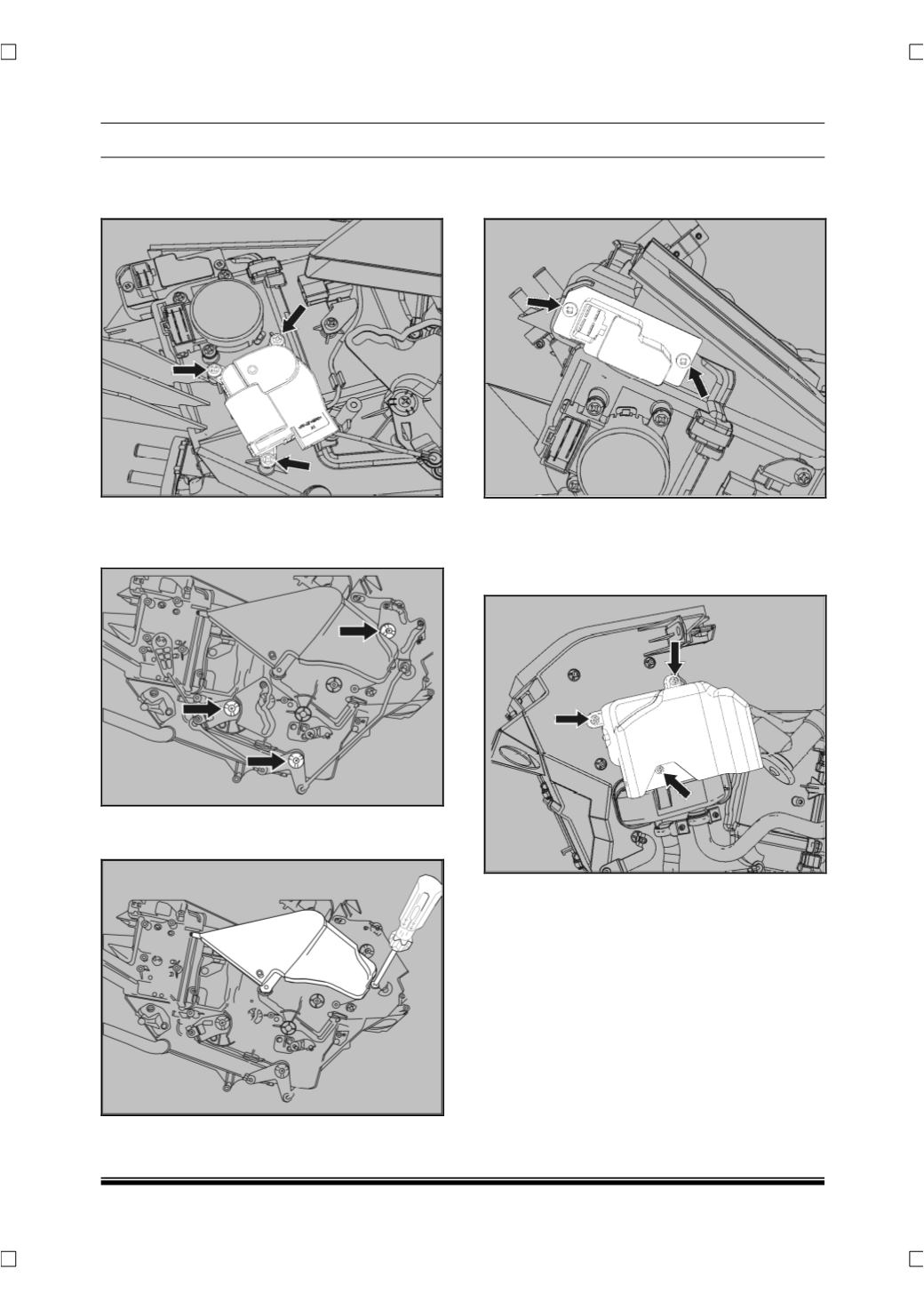

6. Loosen and remove 3 mounting screws and take
out the mode actuator assembly.
7. Loosen and remove 3 screws along with plastic
washer and take out the linkage assembly
(mode) from HAVC unit.
8. Loosen and remove 2 screws and take out the
foot duct assembly.
9. Loosen and remove 2 screws and take out the
BCM assembly.
10. Flip the HVAC assembly upside down to access
the right hand side foot duct.
11. Loosen and remove 3 screws and take out the
right hand side foot duct.
